TST Manual Torque Test Stand

The TST vertical manual torque test stand is shown with a 5i force/torque indicator and Series R50 torque sensor.
Click images to enlarge.
TST - Vertical Stand

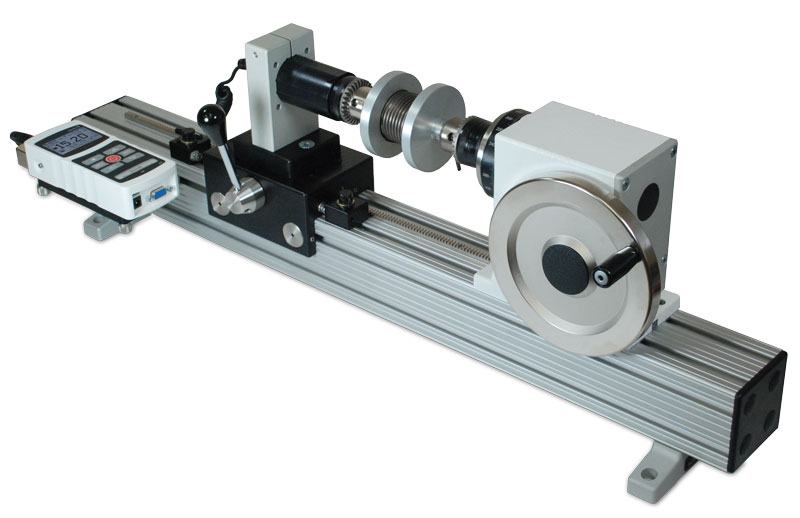

TSTH - Horizontal Stand

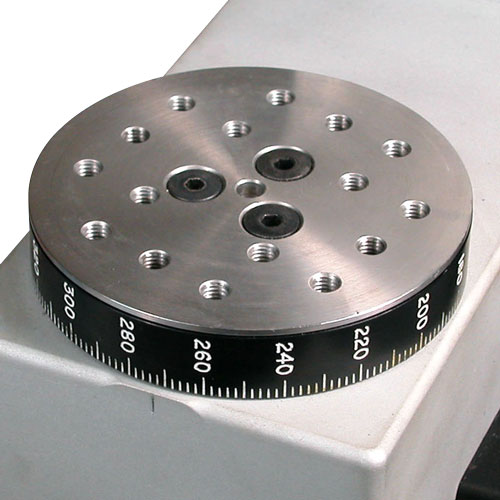

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. The TST's versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

Images show TST with Optional Equipment.

The TST is a test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.

For cap torque testing applications we offer a complete system including torque sensor, display and appropriate test fixtures; refer to this link .....CAP-TSTM.

Features

  • Maximum torque: 100 lbin (11.3 Nm)
  • Maximum angular travel: no limit
  • Travel rate: 12°/ wheel rev.
  • Adjustable travel stops
  • Smooth hand wheel operation
  • Lever operated slider for engaging and disengaging samples

Related Products

Click image for more info
Advanced Force/Torque Indicator
- 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
M3i digital force indicator
Click image for more info
Force and Torque Indicator
- Interchangeable force and torque sensors through Plug & Test™technology
- USB data output
Click image for more info
R50
Universal Torque Sensor
- Compatible with the 7i, 5i and 3i digital indicators
Click image for more info
Digital Angle Indicator
- Displays cw or ccw angle in .01º resolution
- Accurate to ±0.7°
Click image for more info
Jacobs Chuck Grips For TSTM
g1023 container grip
Click image for more info
Bottle / Round Sample Grip
Click image for more info
Cap Grip
Click image for more info

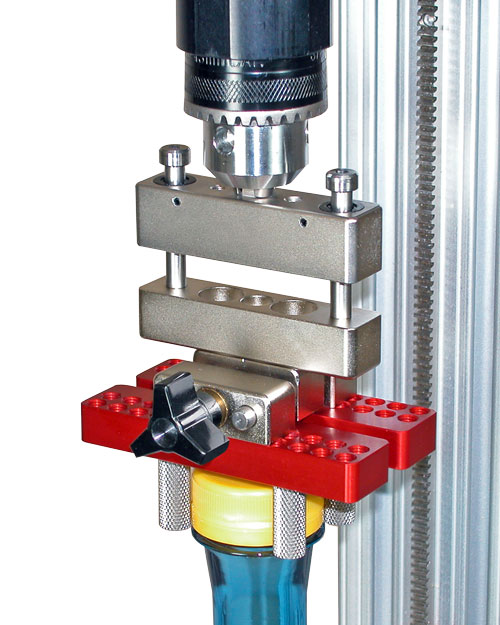

Axial compensator

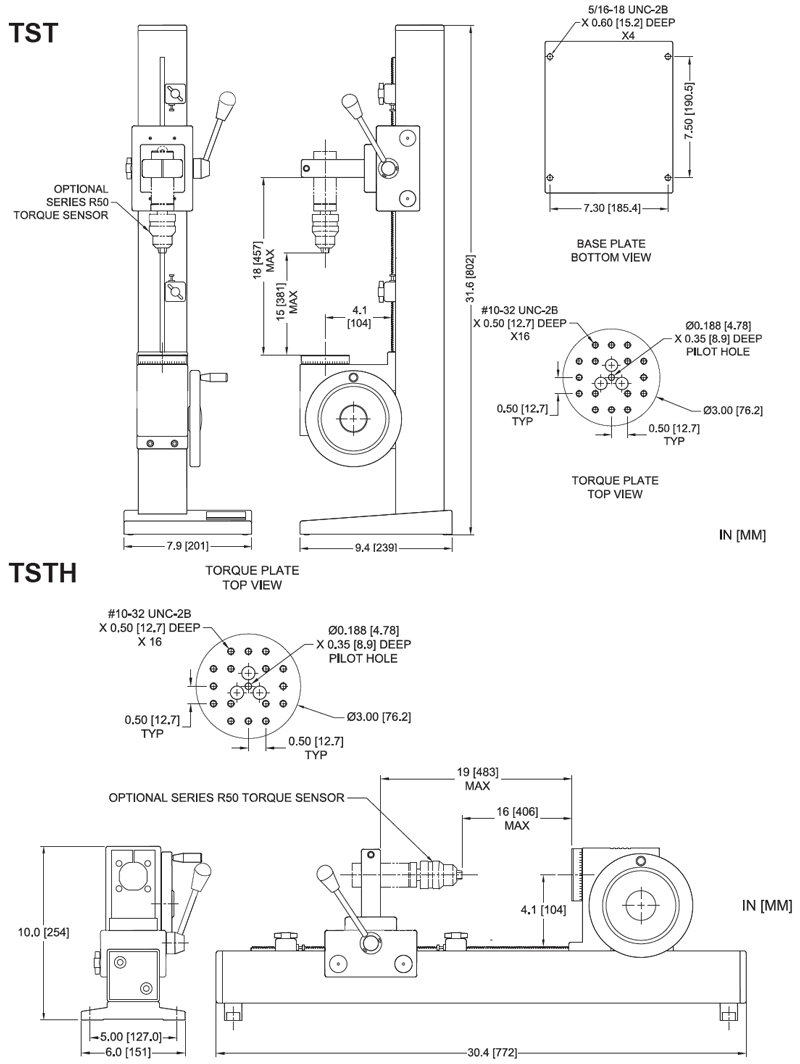

Dimensions

Specifications

Maximum Torque100 lbin (11.3 Nm)
Maximum Angular TravelNo limit
Maximum Slider Travel15.5" (394 mm)
Throat4.10" (104 mm)
Angular Rate12°/ wheel rev.
Slider Travel Rate1.047" (26.6 mm)/lever rev

Downloads

Buy Now

Item Description Price
Manual Torque Test Stand - Vertical
$3,087.50
Manual Torque Test Stand - Horizontal
$3,087.50
Accessories
TST001

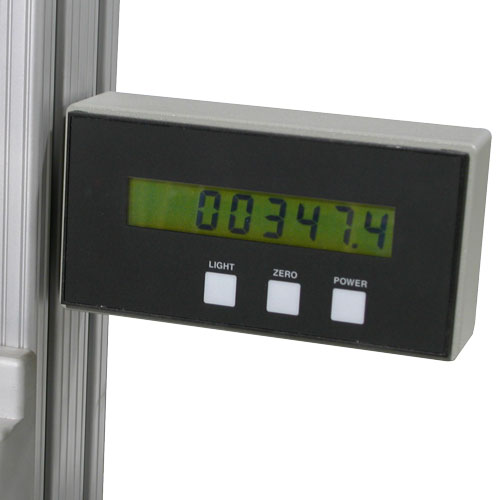

Digital angle indicator for TST-Series stands
$1,135.00
TSF002
Horizontal/wall mounting kit for Series TSF and TST stands
$245.00
SP-2736-12
Column extension, 12 in. / 305 mm, TSTM-DC / TSTMH-DC
$360.00
SP-2736-24
Column extension, 24 in. / 610 mm, TSTM-DC / TSTMH-DC
$550.00
SP-2736-42
Column extension, 42 in. / 1065 mm, TSTM-DC / TSTMH-DC
$855.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
Notes
Column extension $125.00 base + $15.00 per inch

The TST / TSTH now includes the AC1004 adjustable gauge mounting plate (for BGI or MGT).

The TST / TSTH is supplied with a wrench set.
