MTS DISCONTINUED Without Direct Replacement
Dial Torque Analyzer

Dial Torque Analyzer
Click images to enlarge.

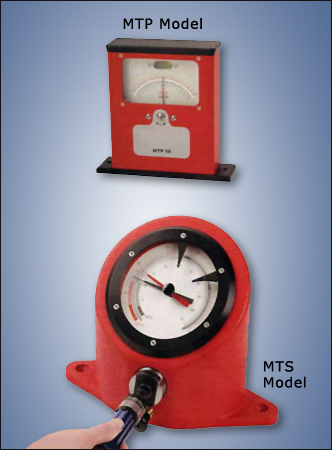

The MTS series is designed for quick and reliable torque testing on hand torque wrenches and drivers.

Note:Do not use electric or pneumatic tools.

Features

  • Designed for all types of hand torque wrenches and screwdrivers.

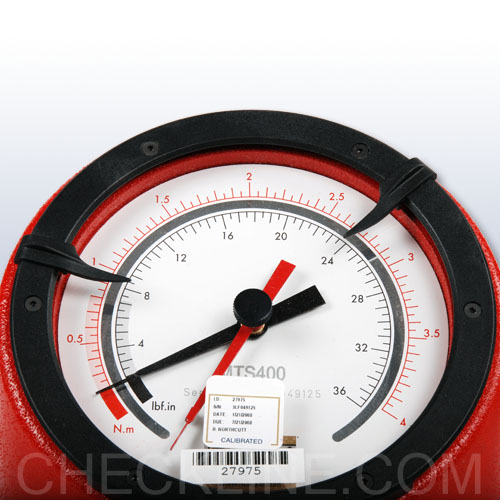

  • New robust and modern design includes angled dial for easy viewing (MTS models).
  • Memory style master pointer retains maximum readings.
  • Reversible drive adapters provide two drive options per model (MTS models)
  • Spindle lock eliminate the need to remove tool from drive during torque adjustment (MTS models).
  • Bench mount style.
  • Clockwise direction only (MTS models).
  • Input drive shock absorber protects from tool kick back. (MTS models).

Force Ranges

ModelRangeResolution
MTS3510-50 ozf-in
7-35 cN-m
0.5 ozf-in
0.5 cN-m
MTS13036-180 ozf-in
26-130 cN-m
2 ozf-in
2 cN-m
MTS4007 - 36 lbf.in
0.8 - 4 N.m
0.5 lbf.in
0.05 N.m
MTS120024 - 120 lbf.in
2.4 - 12 N.m
2 lbf.in
0.2 N.m
MTS250044 - 220 lbf.in
5 - 25 N.m
5 lbf.in
0.5 N.m
Note: Do not use eletric or pneumatic tools.

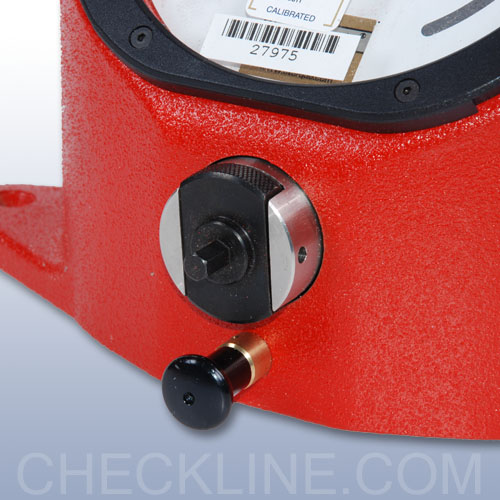

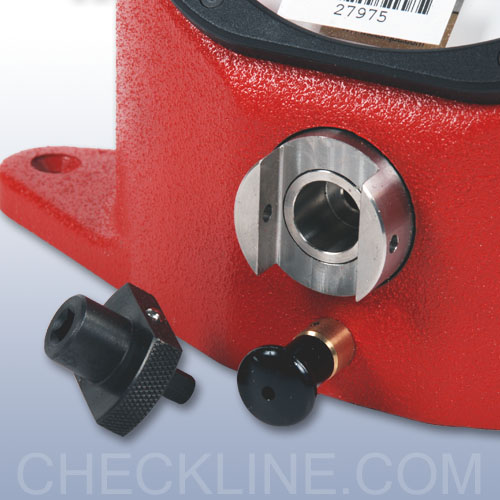

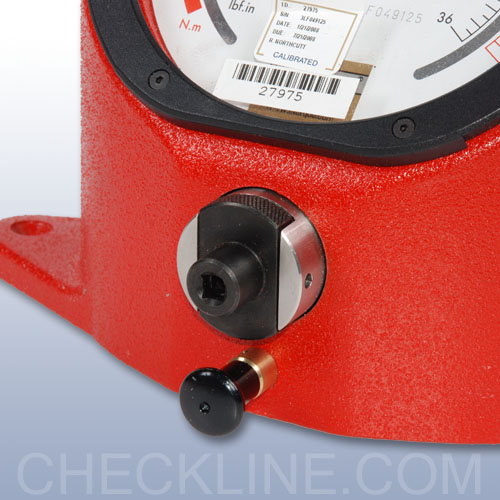

Reversible Adapter

Reversible Drive Adapters supplied with MTS models.
1/4” F/Sq. Drive Adapter 3/8” F/Sq. Drive Adapter 1/4” M/Hex Drive Adapter

Model

1/4” F/Sq.

3/8” F/Sq.

1/4” M/Hex

MTS35

Yes

No

Yes

MTS130

Yes

No

Yes

MTS400

Yes

No

Yes

MTS1200

Yes

Yes

No

MTS2500

Yes

Yes

No

Related Products

Analog Torque Analyzer
Click image for more info
Torque Analyzer - Dial Torque Tester
Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading

Specifications

Accuracy±2% of reading from 20% to 100% of full scale.
WeightMTP:2.16 lbs
MTS: 7.1 lbs
DimensionsMTS: 250mm x 120mm x 182mm

Buy Now

Item Description Price
Torque Analyzer, 7-35 cN.m / 10-50 ozf.in - pn 020001, 058110 - This item is no longer available. There is no replacement.
$
Torque Analyzer, 26-130 cN.m / 36-180 ozf.in - pn 020002, 058120 - This item is no longer available. There is no replacement.
$
Torque Analyzer, 0.8-4 N.m / 7-36 lbf.in - pn 020003, 058130 - This item is no longer available. There is no replacement.
$
Torque Analyzer, 2.4-12 N.m / 24-120 lbf.in - pn 020004, 058140 - This item is no longer available. There is no replacement.
$
Torque Analyzer, 5-25 N.m / 44-220 lbf.in - pn 020005, 058150 - This item is no longer available. There is no replacement.
$
Torque Analyzer, 0-10 cN.m / 0-14 ozf.in - pn 020000, 058100 - This item is no longer available. There is no replacement.
$
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
