TT-3000 Torque Analyzer
Click images to enlarge.

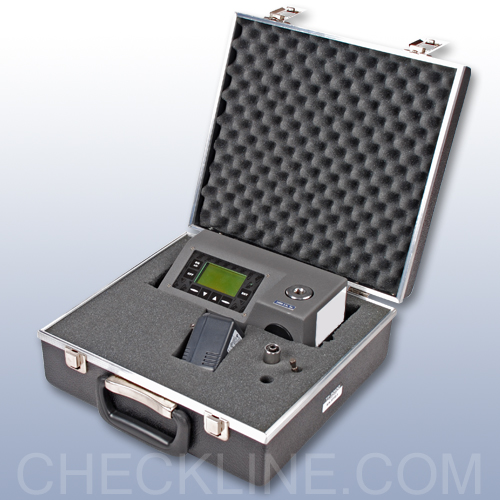

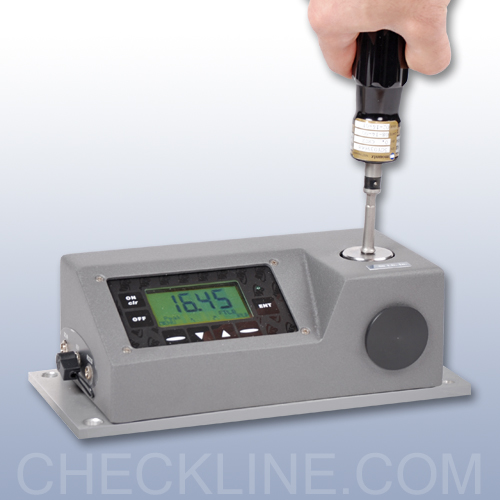

TT-3000 Torque Analyzers are designed for the needs of today’s production facilities. These powerful and versatile systems accommodate most testing requirements at an outstanding cost benefit. perfect for testing screwdrivers, click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.

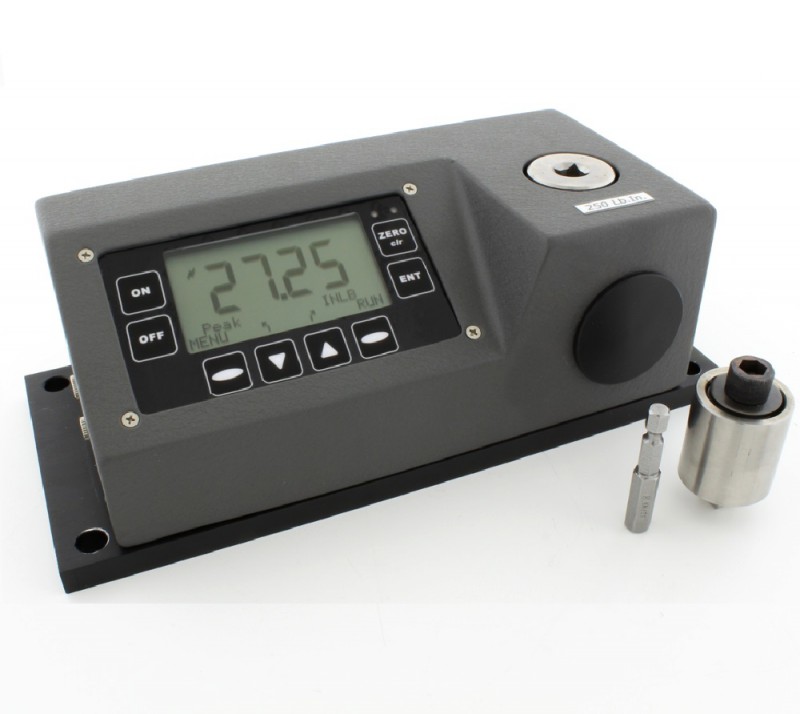

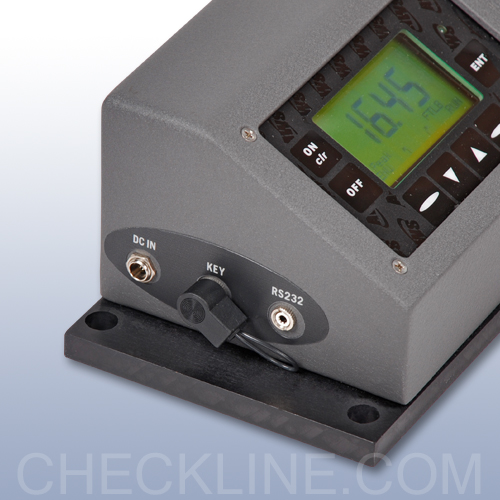

Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. The unique keylock feature enables tamper-proof operation. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, and rundown fixtures for power/pulse tool testing.

Features

  • ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
  • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak, and 1st Peak
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • Joint Simulator supplied with all 1/4", & 3/8" drives, optionally available on 1/2", 3/4" & 1" drives.
  • RS-232 Output
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz

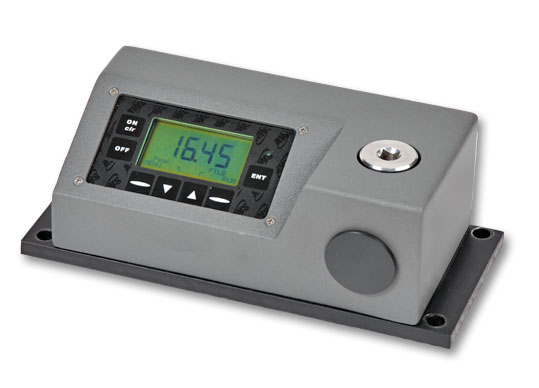

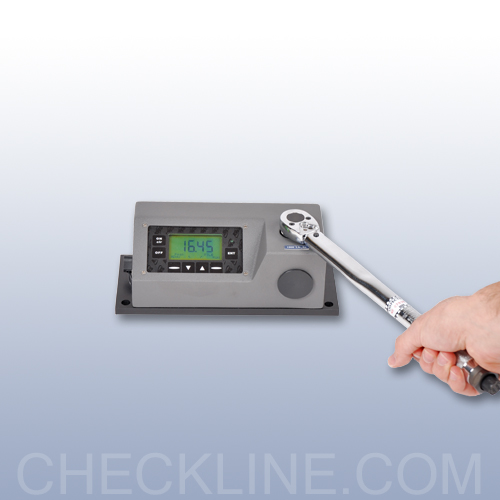

  • For testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.
  • Includes NIST-Traceable Calibration Certificate with Data

Torque Ranges

Model Range Drive Size Run-Down Fixture
TT-30050
5 - 50 ozf-in
0.31 - 3.12 lbf-in
0.02 - 0.26 lbf-ft
360 - 3600.39 gf-cm
0.36 - 3.6 kgf-cm
0 - 0.03 kgf-m
3.53 - 35.3 N-cm
0.03 - 0.35 N-m
1/4" Included
TT-3001
10 - 100 ozf-in
0.62 - 6.25 lbf-in
0.05 - 0.52 lbf-ft
720 - 7200.779 gf-cm
0.72 - 7.2 kgf-cm
0 - 0.07 kgf-m
7.06 - 70.6 N-cm
0.07 - 0.7 N-m
1/4" Included
TT-3011
16 - 160 ozf-in
1 - 10 lbf-in
0.08 - 0.83 lbf-ft
N/A
1.15 - 11.5 kgf-cm
0.01 - 0.11 kgf-m
11.2 - 112 N-cm
0.11 - 1.12 N-m
1/4" Included
TT-3002
20 - 200 ozf-in
1.25 - 12.5 lbf-in
0.1 - 1.04 lbf-ft
N/A
1.44 - 14.4 kgf-cm
0.01 - 0.14 kgf-m
14.1 - 141 N-cm
0.14 - 1.41 N-m
1/4" Included
TT-3012
40 - 400 ozf-in
2.5 - 25 lbf-in
0.2 - 2.08 lbf-ft
N/A
2.88 - 28.8 kgf-cm
0.02 - 0.28 kgf-m
28.2 - 282 N-cm
0.28 - 2.82 N-m
1/4" Included
TT-3005
80 - 800 ozf-in
5 - 50 lbf-in
0.41 - 4.16 lbf-ft
N/A
5.76 - 57.6 kgf-cm
0.05 - 0.57 kgf-m
56.4 - 564 N-cm
0.56 - 5.64 N-m
1/4" Included
TT-3010
160 - 1600 ozf-in
10 - 100 lbf-in
0.83 - 8.33 lbf-ft
N/A
11.5 - 115 kgf-cm
0.11 - 1.15 kgf-m
112 - 1129.848 N-cm
1.12 - 11.2 N-m
1/4" Included
TT-3015
240 - 2400 ozf-in
15 - 150 lbf-in
1.25 - 12.5 lbf-ft
N/A
17.2 - 172 kgf-cm
0.17 - 1.72 kgf-m
169 - 1694.772 N-cm
1.69 - 16.9 N-m
1/4" Included
TT-3025
400 - 4000 ozf-in
25 - 250 lbf-in
2.08 - 20.8 lbf-ft
N/A
28.8 - 288 kgf-cm
0.28 - 2.88 kgf-m
282 - 2824.621 N-cm
2.82 - 28.2 N-m
3/8" Included
TT-3050
800 - 8000 ozf-in
50 - 500 lbf-in
4.16 - 41.6 lbf-ft
N/A
57.6 - 576 kgf-cm
0.57 - 5.76 kgf-m
564 - 5649.242 N-cm
5.64 - 56.4 N-m
3/8" Included
TT-3075
N/A
75 - 750 lbf-in
6.25 - 62.5 lbf-ft
N/A
86.4 - 864 kgf-cm
0.86 - 8.64 kgf-m
847 - 8473.862 N-cm
8.47 - 84.7 N-m
3/8" Included
TT-30100
N/A
100 - 1000 lbf-in
8.33 - 83.3 lbf-ft
N/A
115 - 1152.125 kgf-cm
1.15 - 11.5 kgf-m
N/A
11.2 - 112 N-m
3/8" Included
TT-3100
N/A
120 - 1200 lbf-in
10 - 100 lbf-ft
N/A
138 - 1382.55 kgf-cm
1.38 - 13.8 kgf-m
N/A
13.5 - 135 N-m
1/2" Optional
TT-3150
N/A
180 - 1800 lbf-in
15 - 150 lbf-ft
N/A
207 - 2073.824 kgf-cm
2.07 - 20.7 kgf-m
N/A
20.3 - 203 N-m
1/2" Optional
TT-3250
N/A
300 - 3000 lbf-in
25 - 250 lbf-ft
N/A
345 - 3456.374 kgf-cm
3.45 - 34.5 kgf-m
N/A
33.8 - 338 N-m
1/2" Optional
TT-3750
N/A
900 - 9000 lbf-in
75 - 750 lbf-ft
N/A
N/A
10.3 - 103 kgf-m
N/A
101 - 1016.864 N-m
3/4" Optional
Don't see the range you need? Custom ranges are available, please call 800-645-4330 to discuss your application.

ER - Extended Range Option increases certified range to 5-100% (instead of 10-100%)

Related Products

AWS-1025 Mechanical Torque Loader
Click image for more info
Torque Wrench Loader AWS-1000 Series
- Rugged Machined Aluminum Construction
- Heavy-duty precision gear box for easy load application
MTMDP Torque Tester
Click image for more info
Multi-Range Torque Tester
- Available with 2, 3 or 4 torque transducers
- LED Indicator Shows Active Transducer
Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
TT-QCM Torque Tester
Click image for more info
Torque Wrench Tester
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
run-down-fixture
Click image for more info
Run Down Fixture - Joint Simulators for Torque Testers
- Threaded bolt and nut body for simulating bolted joint. On Standard, HD and HE models bolt is standard and easily replaceable from multiple sources
torque arm for torque sensor calibration
Click image for more info
Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel
Torque Driver Adapters
Click image for more info
Torque Drive Adapters
- Custom drives available, inquire

Dimensions

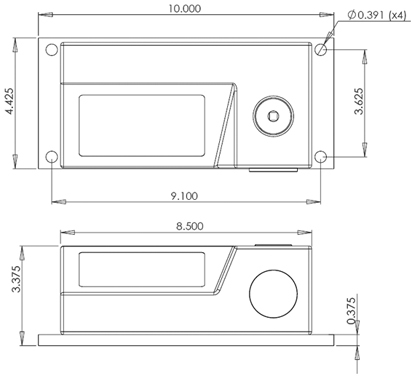

TT-3000 Dimensions

Specifications

Calibrated Range10-100% Full Scale, bi-directional (Standard)
Extended Range5-100% Full Scale, bi-directional (ER Option)
Accuracy±0.5% of Indicated Value (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak, 1st Peak
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memorydata storage of up to 999 readings (optional, inquire)
Data OutputRS-232
Display62 x 62mm backlit LCD
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerNiMH rechargeable batteries provide 8-10 hours continuous use
Weight6-9 lbs, depends on number of transducer
Operating Temp32 - 120 °F (0-50 °C)
Warranty1 Year
Calibration CertificateIncludes NIST Traceable calibration certificate with data
Standard AccesoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option
