MGT Digital Torque Gauge - REPLACED BY TT03

Click images to enlarge.
As November 2011 the MGT has been replaced by the Series-TT03, click for more info

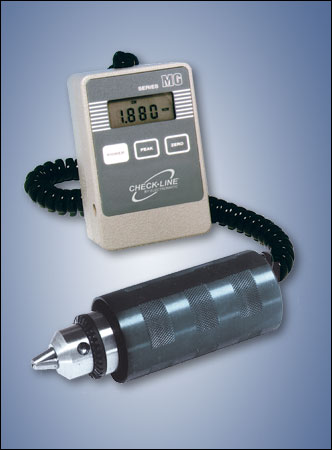

The MGT Torque Gauge is an rugged solution for most torque measurement applications. A dedicated remote torque sensor with a Jacobs chuck can be used to grip a sample or fixture. The MGT is available in a wide variety of capacities, from 12 lbf-in to 100 lbf-in.

Features

  • Display "real-time" or "peak" force
  • Units of measure: lbf-in, kgf-mm, and N-cm (selectable)
  • Battery life: 30 hours of continuous operation
  • Push-button calibration
  • Includes NIST-Traceable calibration certificate
  • Battery or AC operation
  • 3 Year Warranty

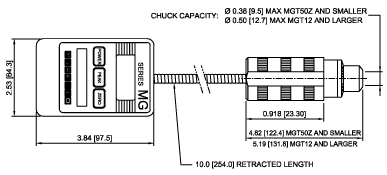

Dimensions

Force Ranges

ModelCapacityResolution
MGT-10Z10 oz-in
7 kg-mm
7 N-cm
0.01 oz-in
0.005 kg-mm
0.005 N-cm
MGT-20Z20 oz-in
14 kg-mm
14 N-cm
0.02 oz-in
0.01 kg-mm
0.01 N-cm
MGT-50Z50 oz-in
36 kg-mm
35 N-cm
0.05 oz-in
0.05 kg-mm
0.05 N-cm
MGT-1212 lb-in
140 kg-mm
135 N-cm
0.01 lb-in
0.1 kg-mm
0.1 N-cm
MGT-5050 lb-in
580 kg-mm
570 N-cm
0.05 lb-in
0.5 kg-mm
0.5 N-cm
MGT-100100 lb-in
1150 kg-mm
1150 N-cm
0.1 lb-in
1 kg-mm
1 N-cm
Note: For 220V operation add suffix E to model number. Example: MGT50E

Chuck Sizes & Min / Max Sample Diameters

Chuck Sizes
MGT Model 10Z 20Z 50Z 12 50 100
Size 9.5mm / 0.375" 12.7mm / 0.500"

Min/Max Sample Diameters
Chuck Size Min Sample Max Sample
9.5mm / 0.375" 1.5mm / 0.062" 9.5mm / 0.375"
12.7mm / 0.500" 2.0mm / 0.078" 12.7mm / 0.500"

Complete Kit

The MGT torque gauges are supplied in a cushioned carrying case with AC adapter, battery, chuck key, user's manual, and NIST certificate of calibration

Related Products

TT03 Torque Tester
Click image for more info
Hand-Held Digital Torque Meter
- Peak memory for clockwise and counter clockwise readings saved and displayed
- High-speed 2,000 Hz sampling rate
Click image for more info
Digital Torque Gauge - DISCONTINUED MODEL
- Display "real-time" or "peak" force
DIS-RL Digital Torque Screwdriver
Click image for more info
Digital Torque Screwdriver
- Peak, Real Time and Peak Down measuring mode (selectable)
- 800 peak data memory for recall or for SPC download
DID-4 Digital Torque Screwdriver
Click image for more info
DID
Digital Torque Screwdriver
- Peak, Real Time and Peak Down measuring mode (selectable)

Specifications

Accuracy:± 0.5% of full scale ±1 digit
Sampling Rate30 times/s
Overload capacity:150% of capacity
Power supply:9V battery or AC adapter
Housing dimensionsSee Drawing
Weight1.8 lbs (0.8 kg)
Warranty3 Years
