TT03 Hand-Held Digital Torque Meter

Made in USA

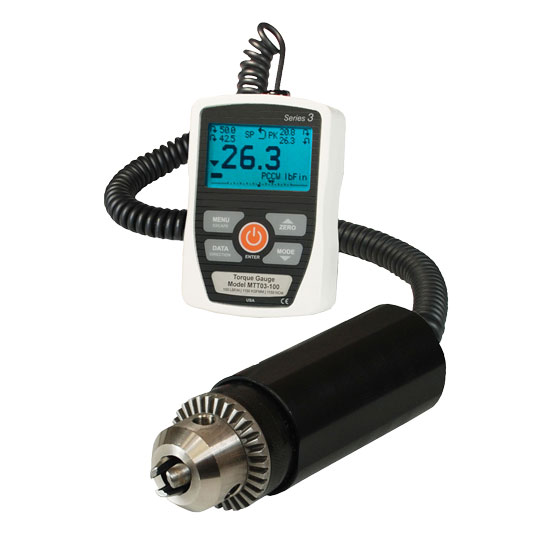

TT03 Torque Tester
Click images to enlarge.
The new Series TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauge's rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.

Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges? features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates single point data. One-click export to Excel allows for further data manipulation.

TT03 Torque Tester Display overview

Features

  • Peak memory for clockwise and counter clockwise readings saved and displayed
  • High-speed 2,000 Hz sampling rate
  • Single Reading USB data output
  • Programmable set points with pass/fail indicators
  • Battery or AC operation
  • Configurable audio alarms and key tones
  • Live load bar graphs with set point markers
  • CE mark
  • Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.

Force Ranges - capacity/resolution

Related Products

Click image for more info
MESUR gauge / MESUR gauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click
htgs torque tester
Click image for more info
Hand-held Digital Torque Gauge

Dimensions

TT03 Torque Tester dimensions

Specifications

Accuracy:±0.5% of Full Scale
Sampling rate:2,000 Hz
Power:AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:lbFin, ozFin, kgFmm, Ncm (depending on model)
USB Output:Individual data point output by pressing DATA key. Configurable up to 115,200 baud.
Configurable Settings:Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload:150% of full scale (display shows "OVER" at 110% and above)
Weight:1.8 lb [0.8 kg]
Environmental requirements:40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty:3 Years

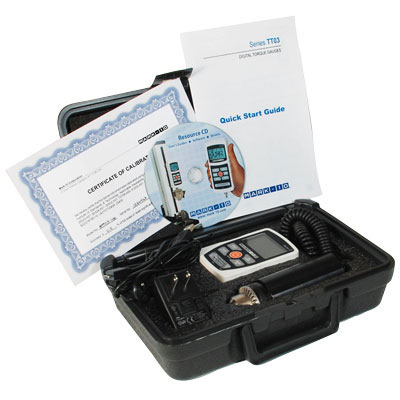

Complete Kit

The TT03 is supplied as a complete kit including the force display with torque sensor, universal AC adapter, battery, chuck key, quick-start guide, USB cable, basic data xfer software and NIST traceable calibration cert if a fitted carrying case.
TT03 Complete Kit

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Digital Torque Tester, 10 oz-in / 7 kg-mm / 7 N-cm
$1,305.00
Digital Torque Tester, 20 oz-in / 14 kg-mm / 14 N-cm
$1,305.00
Digital Torque Tester, 50 oz-in / 36 kg-mm / 36 N-cm
$1,305.00
Digital Torque Tester, 12 lb-in / 140 kg-mm / 135 N-cm
$1,205.00
Digital Torque Tester, 50 lb-in / 580 kg-mm / 570 N-cm
$1,205.00
Digital Torque Tester, 100 lb-in / 1150 kg-mm / 1150 N-cm
$1,205.00
Accessories
NISTCAL-10PT
Upgrade Calibration Cert with 10 Data Points
$75.00
AC1008 - Table Top Stand For Display Units
$150.00
