YSL-2000HD Multi-function Yarn Speed & Length Meter

Made in Germany
YSL-2000HD Speed & Length Meter
Click images to enlarge.
YSL Speed and Length MeterThe Checkline YSL-2000HD combines the functions of three separate instruments in one, easy-to-use device.

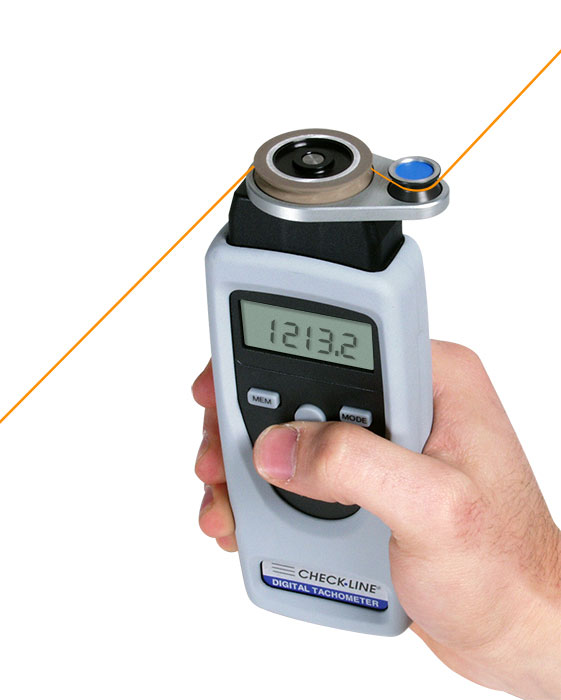

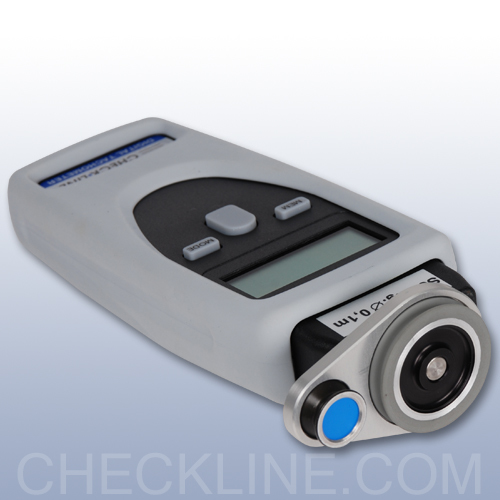

It accurately measures the speed and length of yarns, and other filaments using a unique "wrapper" roller. This precision roller directs the filament onto the low-inertia, U-grooved measuring wheel to maximize contact and eliminate filament slip and breakage.

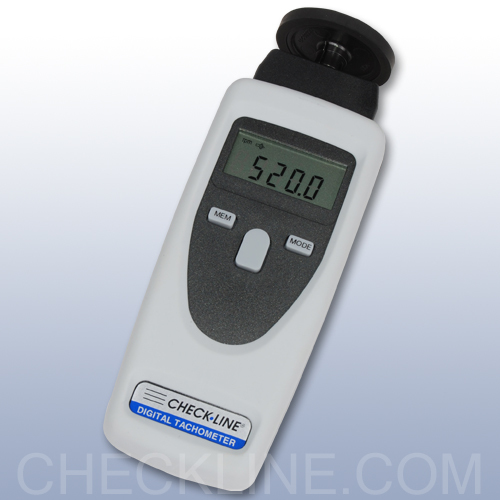

The YSL-2000HD can also be used as either a contact or non-contact tachometer to measure rotational speeds of shafts, motors, pulleys, etc. or linear speeds of moving surfaces such as conveyor belts, webs of paper or fabric, etc.

Features

  • Includes Traceable calibration Certificate
  • Slide-on measuring heads make it simple to rapidly convert from one function to another
  • Accuracy of ± 0.02%
  • Built-in memory for last, maximum, minimum values
  • 5 Year Warranty

Related Products

Extended Handle Speed and Length Meter
Click image for more info
Extended Handle Speed and Length Meter
LMC LMI Yarn Length Meter
Click image for more info
Yarn Consumption / Yarn Length Meter

User-selected engineering units

Linear Speed Length Revolutions
feet/min feet rpm
meters/min meters
inches/min inches

Tachometer Accessories

Complete Kit

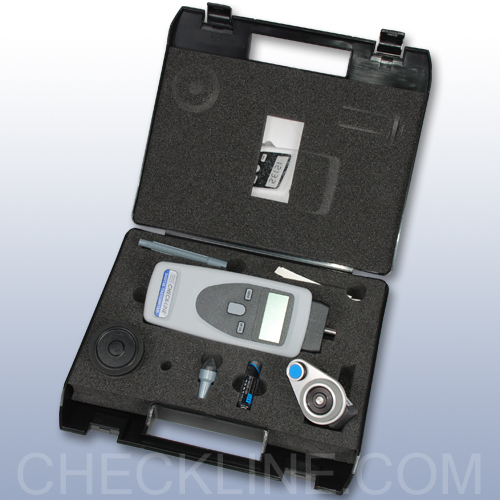

The YSL unit, two slide-on measuring heads (tachometer and yarn speed), cone tip, universal surface speed wheel with integrated funnel tip adapter, reflective tape, two AA batteries and operating instructions, all supplied in a foam-fitted, hard-plastic carrying case.

YSL-2000HD Video Overview

Specifications

Measuring Ranges
RPMNon-Contact: 1.00 - 99,999 rpm
Contact: 1.00 - 19,999 rpm
Surface Speed0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/min
Length0.01 - 99,999 feet
0.02 - 99,999 meters
1.0 - 99,999 inches
Resolution.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999
Yarn/Wire Diameter (max.)Yarn: 1mm Wire: 0.3mm
Accuracy± 0.02% of reading or 1 digit
Display 5 - Digit LCD, 10mm high
Decimal PointAutomatic
Memory SystemMaximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement SystemNon-Contact: Visible LED light beam
Contact: Contact adapter
Sensing DistanceUp to 14 inches (350mm)
Display Update Time0.5 seconds or one measuring
Auto Power OffAfter 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life20 hours continuous use
Weight6 ounces (170 grams)
Housing MaterialABS Plastic
Operating Temperature32 to 122º F (0 to 50º C)
Storage Temperature-4 to 150º F (-20 to 70º C)
Optional AccessoriesShaft extension, 3.15 inches (80 mm)
Warranty5 years

Downloads

Buy Now

Item Description Price
YSL-2000HD Yarn Speed and Length Meter Complete Kit [A5-1200]
$595.00
Accessories
CDT-ADAP-YSL
Spare/ Replacement Yarn Speed & Length Adapter for YSL-2000HD
$395.00
Qty 4 Reflective Tab Sheet, 35 1/2" x 1/2" Squares
$15.00
Reflective Tab Sheet, 35 1/2" x 1/2" Squares - TAB
$5.00
BATT-RC4AA-WC
4-pack AA Ni-MH Rechargeable Batteries & Charger Kit
$35.00
