TSB2 Narrow-Web Tension Sensor
From 0-500 g up to 0-100 Kg

Made in Germany

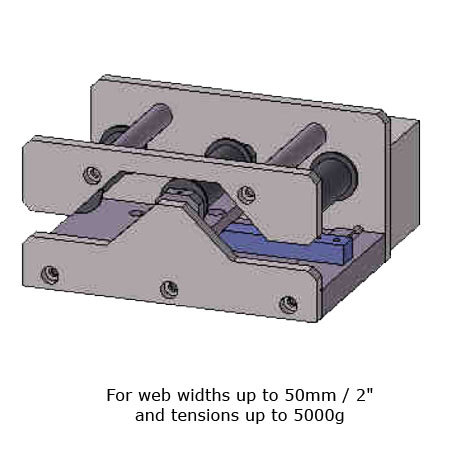

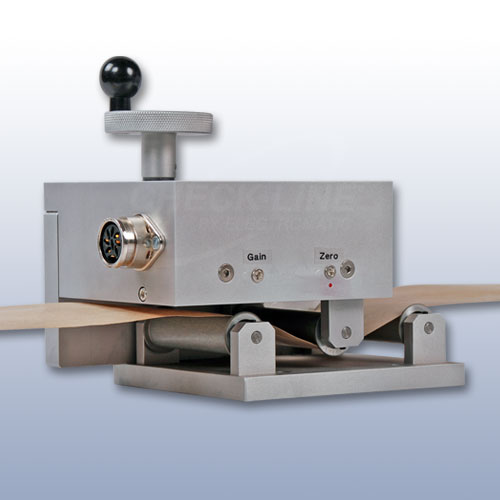

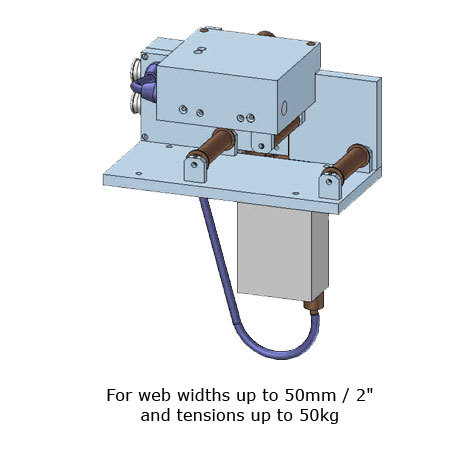

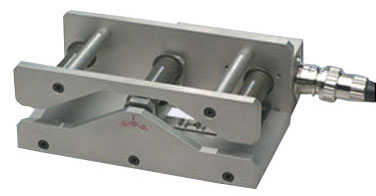

TSB2 Tension Sensor
Click images to enlarge.

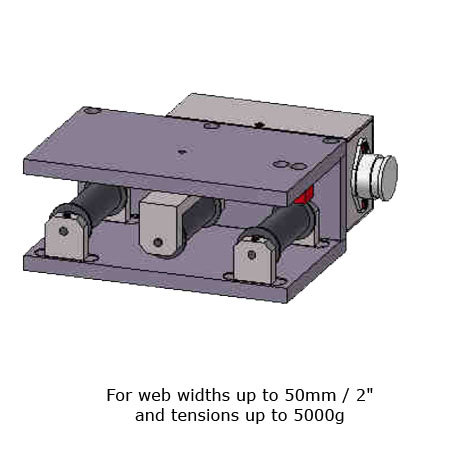

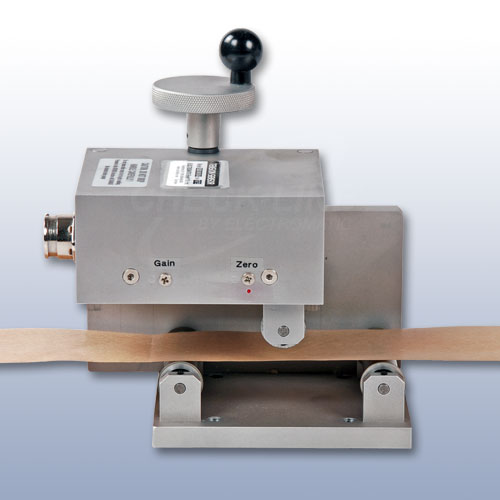

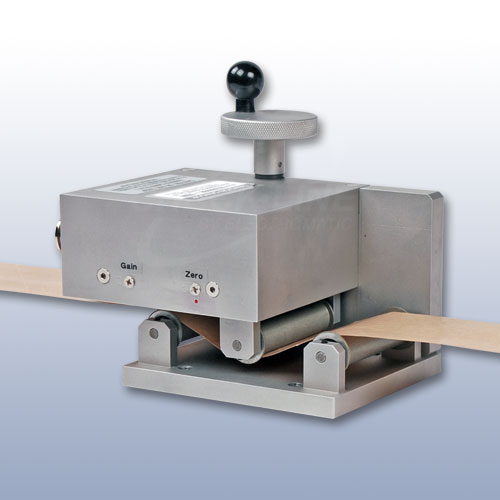

Tension meter for continuous measuring low and high tensions of textile ribbons, films, foils, fiber bunches etc.

Tape rollers mounted on both sides, width of the cylindrical rollers from 15 mm up to 100 mm with tension ranges from 0-500 g up to 100Kg.

Other roller materials (Nickel-plated steel or Plastic), as well as surface coatings, e. g. anti adhesive coatings (Code AH), Carbon-Optimized Coatings are optional

Features

  • Dual-flanged outer guide rollers with various widths from 10 mm up to 100 mm
  • Various output signals:
    • analog (0-1V DC)
    • RS232 (optional)
    • 0-10V DC (optional)
  • Cylindrical tape roller, ball-bearing mounted
  • Integrated measuring amplifier
  • Easy calibration to customized material by operator
  • Rugged aluminum housing
  • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

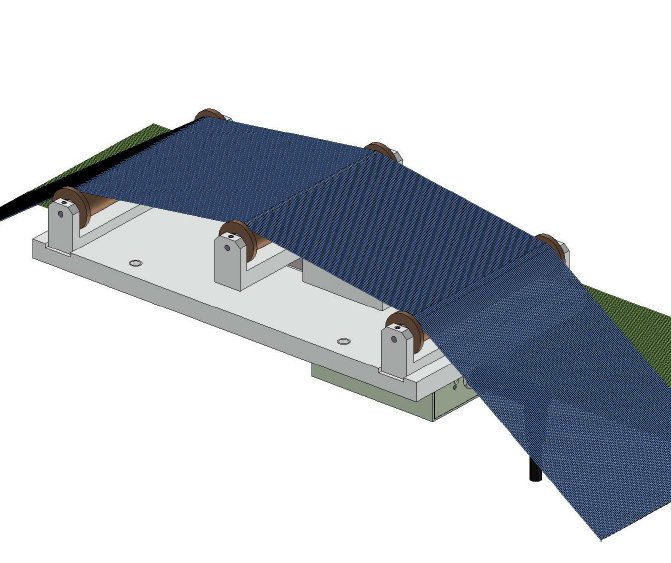

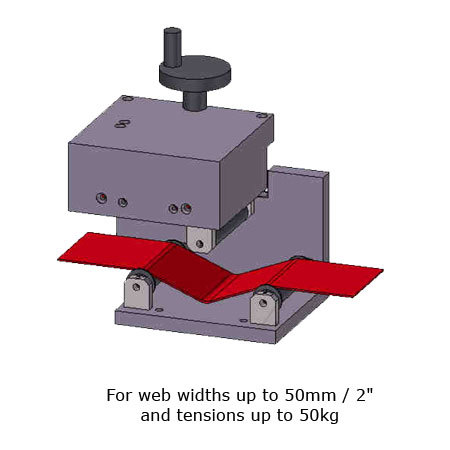

  • Optional hand-wheel feature to open/close roller system for easy threading of material

Tension Ranges

ModelRangeRoller Width (mm)
TSB2-5000 - 500 g20, 30, 36, 41, 50, 100
TSB2-10000 - 1000 g20, 30, 36, 41, 50, 100
TSB2-20000-2000 g20, 30, 36, 41, 50, 100
TSB2-50000-5000 g20, 30, 36, 41, 50, 100
TSB2-10K0-10 Kg15, 20, 30, 36, 41, 50, 100
TSB2-20K0-20 Kg15, 20, 30, 36, 41, 50, 100
TSB2-50K0-50 Kg15, 20, 30, 36, 41, 50, 100
TSB2-100K0-100 Kg15, 20, 30, 36, 41, 50, 100**
Important for your order: Please specify model and roller width! Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.

Calibration to customized material: If process material differs significantly from the Electromatic calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

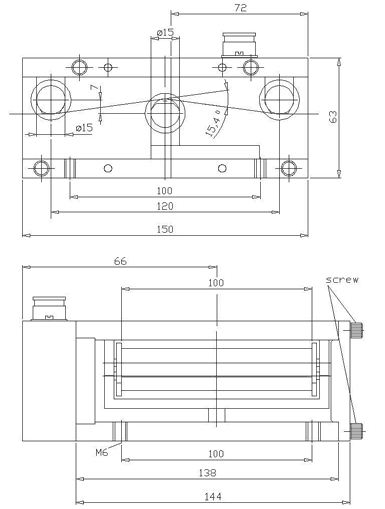

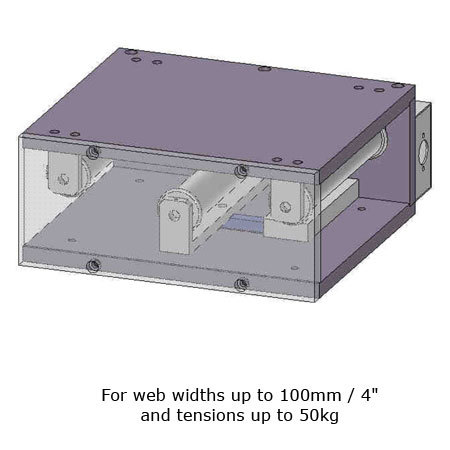

Dimensions

Related Products

Click image for more info
Digital Tension Indicator
- Can be scaled to any engineering units desired with user-set decimal point.
- 4-20 mA analog output for recording and control purpose (No analog output provided on PD765-6R5-10)
- Requires 85-265V AC Power, provides regulated power for the tension sensor
SC-PM Tension Sensor Indicator
Click image for more info
Tension Indicator with Color Display
- User set limits (Min and Max alarms) with Visual Indicator in LCD with Open Collector output for external signal
- Adjustable damping to reduce tension fluctuates
- Storage for 4 different material calibrations (standard + 3 customer supplied materials)
SC4-PM Panel mount digital display unit
Click image for more info
Panel mount digital display unit
- Panel mount display unit (1/4 DIN IEC 61554 cutout – 91.5 x 91.5 mm)
- Suitable for connecting a maximum of 4 sensors (different ranges are possible) with analog output 0 – 1 V DC or optional series without integrated amplifier (output mV/V)
Click image for more info
Tension Indicator/Amplifier
- Supplies separate 0-10 VDC analog output for each channel
- Adjustable output frequency of 1.6/3.3/15/330 Hz.

Specifications

Accuracy±1 % full scale ±1 digit other calibration material: ±3 % full scale or better
Overload protection100% of tension range
Measuring principleStrain guage bridge
Measuring roller deflectionMax. 0.5 mm
Natural frequencyApprox. 500 Hz, depending on tension range
Temperature driftless than ±0.05 % fullscale/ºC
Output signal0 - 1 V DC (analog)
Damping30 Hz
Temperature range10 - 45 ºC
Air humidity85 % RH, max.
Power supply+12 - 24 V DC, max. 50 mA regulated
