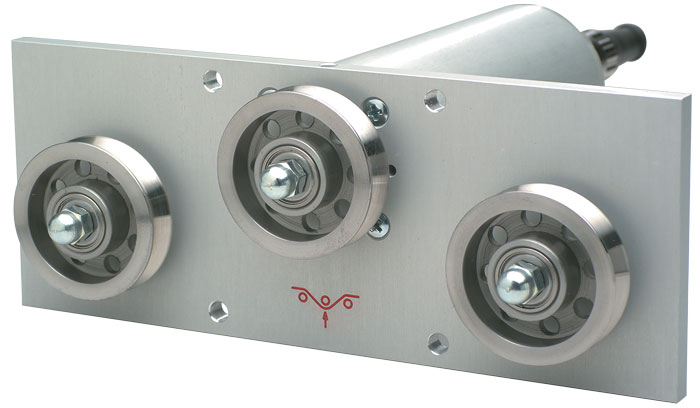

TE-24 Heavy-Duty Tension Sensor

Made in Germany
TE-24 Heavy-Duty Tension Sensor
Click images to enlarge.
6 Tension Ranges
0-1000 g up to 0-50.0 Kg

Heavy-duty, hardened steel rollers makes this model especially suitable for tire cord, wires and similar filaments to high-impact loading.

Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Features

  • Precision strain gauge sensing for highest accuracy and repeatability
  • 30 mm hardened steel rollers are rated for linear speeds up to 2400 m/min
  • 0-1 V DC output, proportional to tension (0-10 V DC optional)
  • Optional 10 ft. cable, TE-CABLE-CN is recommended. Longer lengths are available.
  • Surface mount electronics provide long-term reliability
  • Frequency response of 100 Hz
  • Custom configurations can be supplied to meet nearly any application requirement
  • Sensor can be easily mounted using four holes in front panel or using a “collar” around the cylindrical sensor body.

Tension Ranges

ModelRange
TE-1K-24A0-1000 g
TE-2K-24A*0-2000 g
TE-5K-24C0-5.00 Kg
TE-10K-24C0-10.00 Kg
TE-20K-24D0-20.00 Kg
TE-50K-24E0-50.0 Kg
*Can be supplied with a "B" configuration with low material deflection for wire applications.

Dimensions

Related Products

Click image for more info
Display Unit
- User set limits (Min and Max alarms) with LED and Open Collector output for external signal unit
- Adjustable damping to reduce tension fluctuates
- Can store up to three (3) separate calibrations for 3 different materials
SC4-PM Panel mount digital display unit
Click image for more info
Panel mount digital display unit
- Panel mount display unit (1/4 DIN IEC 61554 cutout – 91.5 x 91.5 mm)
- Suitable for connecting a maximum of 4 sensors (different ranges are possible) with analog output 0 – 1 V DC or optional series without integrated amplifier (output mV/V)
Display Unit
Click image for more info
Data Transfer & Analysis Program
- Data can be viewed and analyzed in TensionInspect or transferred to Excel
- Selectable sample rates and scalable trend graph "x" and "y" axis

Specifications

Accuracy± 1.5% FS or better
Sensor Excitation+12 ... 24 V DC, max. 50 mA regulated
Middle Roller Deflection0.5 mm (maximum)
Sensor Output0-1 V DC (standard)
0-10 V DC (optional)
proportional to tension
Overload Protection200% FS
Frequency Response30Hz (custom frequency response up to 100 Hz available as an option)
Housing MaterialAluminum
Spacing of Outer RollersSee PDF - Click To Download
Roller Diameter (Root)29.5 mm
Roller MaterialHardened Steel
Maximum Linear Speed2400 m/min
Operating Temperature40 to 105° F (5-40° C)
