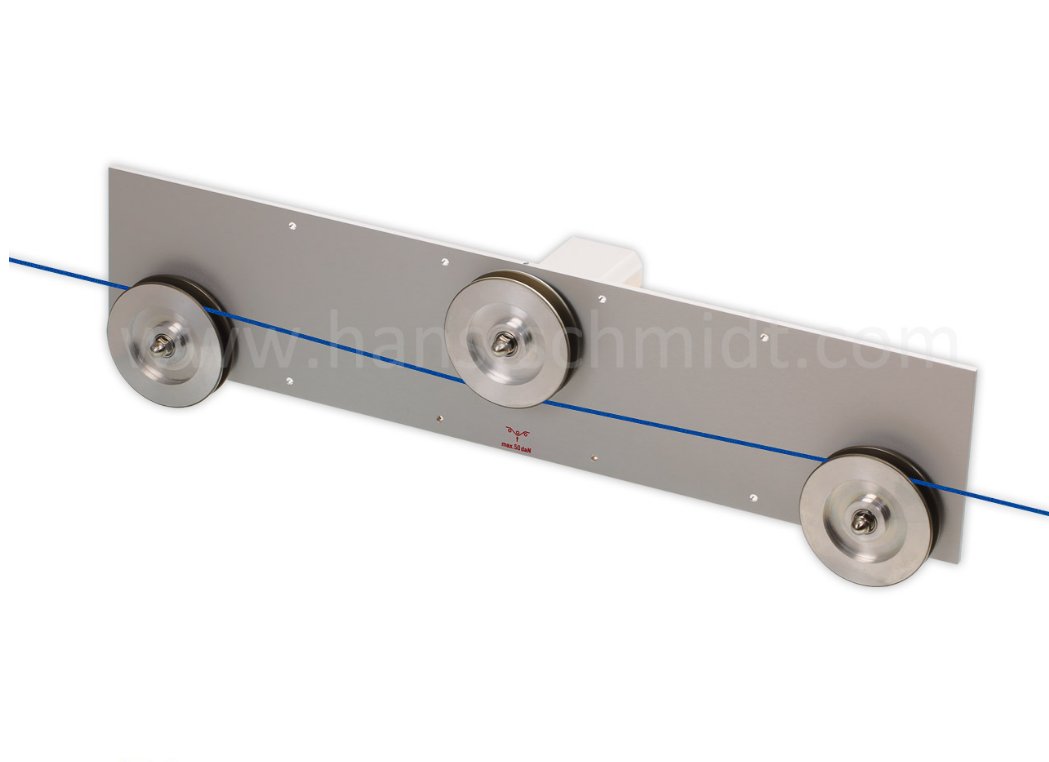

Heavy-duty Tension Sensor for wires, ropes and cables up to a diameter of 15 mm
4 Tension Ranges from 0-20 Kg up to 0-200 Kg
60mm diameter U-Grooved Rollers
Radius of U-Groove is 3mm (5mm and 8 mm available)
Fabricated from Hardcoat Anodized Aluminum
Wide range of analog and digital outputs available The new TSW Series Tension Sensor are purpose-built online tension sensor for continuous measurement of running line tensions of wires, ropes and cables and similar process materials up to a diameter of 15 mm. Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.
4 Tension Ranges from 0-20 Kg up to 0-200 Kg
60mm diameter U-Grooved Rollers
Radius of U-Groove is 3mm (5mm and 8 mm available)
Fabricated from Hardcoat Anodized Aluminum
Wide range of analog and digital outputs available The new TSW Series Tension Sensor are purpose-built online tension sensor for continuous measurement of running line tensions of wires, ropes and cables and similar process materials up to a diameter of 15 mm. Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.
- U-Grooved guide rollers 80 mm OD / 60 mm root diameter with easy-running ball-bearings
- Radius of U-Groove offered in 3mm (standard), 5mm Code R2 or 8 mm (Code R3)
- Tension sensor with integrated measuring amplifier provides 0-1V DC, 0-10V DC or 4-20mA output
- Various digital output signals include USB, RS-232 and RS-422
- Easy calibration to customized material by operator (using Zero & Gain Adjustment Pots)
- Includes mechanical overload protection (200%)
- Fabricated from Aluminum for use in tough production environments

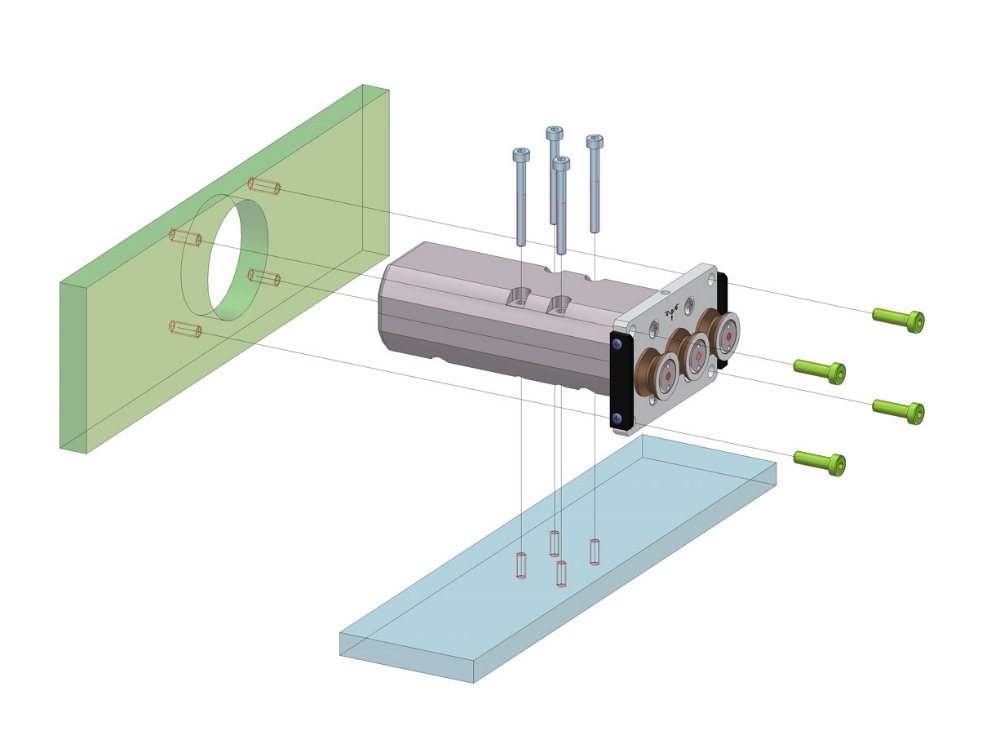

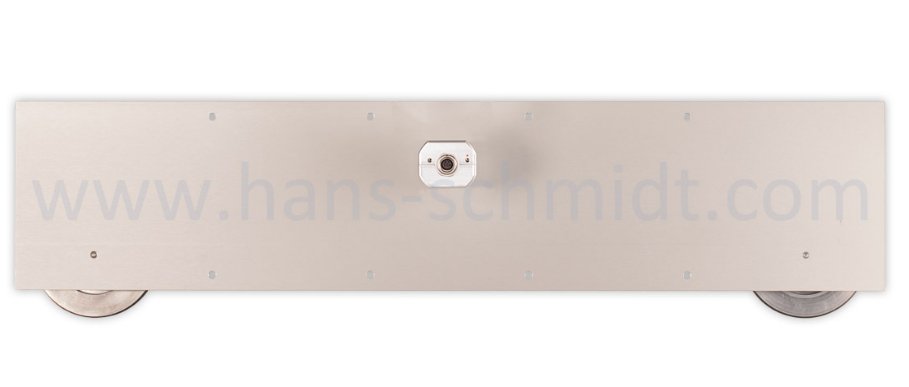

- 2 Mounting possibilities: via holes in front plate or cylindrical hole mounting
- Requires power supply +15…24 V DC (regulated) or connection to SC-PM Tension Indicator
- Front Plate dimensions of 550 mm width x 100 mm
- Strain Gauge-based sensor provides accuracy of 1.5% Full Scale or better.
- Custom-designs are possible along with special features such as air fitting to create positive internal pressure in the housing for protection against airborne chemicals or contaminants
| Model | Tension Range | Measuring Head Width* | Factory Calibration Material |
|---|---|---|---|
| FSW-20K | 0 - 20 Kg (44 Lbs) | 550 mm (22") | Steel rope 1.50 mm ⌀ (7x7x0.20) |
| FSW-50K | 0 - 50 Kg (110 Lbs) | 550 mm (22") | Steel rope 3 mm ⌀ (6x7x0.30) |
| FSW-100K | 0 - 100 Kg (220 Lbs) | 550 mm (22") | Steel rope 4 mm ⌀ (6x7x0.50) |
| FSW-200K | 0 - 200 Kg (440 Lbs) | 550 mm (22") | Steel rope 4 mm ⌀ (6x7x0.50) |
Other tension ranges available on request
* Outside dimensions of front plate
* Outside dimensions of front plate
| Code | Line Speed Vmax ...m/min |
Roller Material |
|---|---|---|

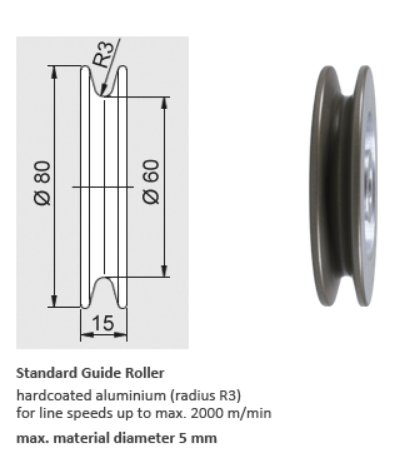

| Standard | 2000 | Hardcoated aluminum (radius 3mm) |

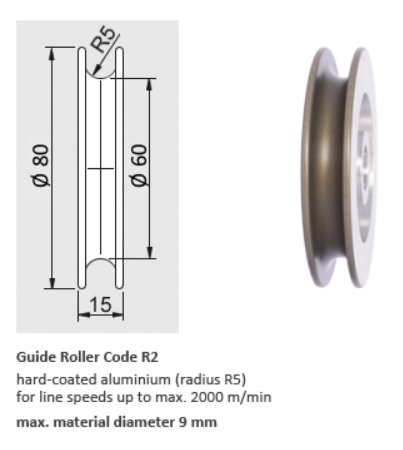

| Code R2 | 2000 | Hardcoated aluminum (radius 5mm) |

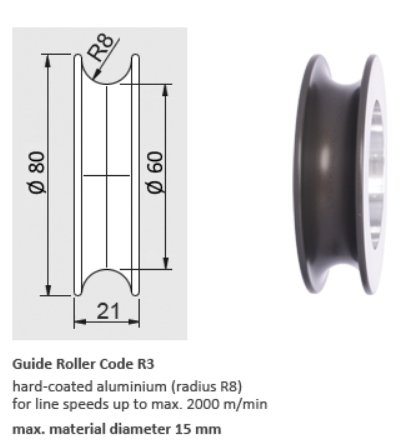

| Code R3 | 2000 | Hardcoated aluminum (radius 8mm) |
 |
Standard Output signal: 0 - 1 VDC Click image for more information |
 |
Code "DC" Output signal: 0 - 10 VDC Click image for more information |
 |
Code "-MA" Output signal: 4 - 20 mA DC Click image for more information |
 |
Code A10 Output signal: mV/V Click image for more information |
 |
Code 232 Output signal: Up to 100 readings can be transferred per second, (internal sampling rate max. 4800 times/s) Click image for more information |
 |
Code 232-H Output signal: Only for tension range 200 Kg or higher Click image for more information |
| Accuracy | ±1.5 % full scale and ±1 digit other calibration material: ±3 % full scale or better |
| Overload protection | 100 % of tension range (200% total) |
| Measuring principle | Strain gauge bridge |
| Measuring roller deflection | Max. 0.5 mm |
| Natural frequency | Approx. 500 Hz, depending on tension range |
| Signal processing | Analog (option: digital) |
| Output Signal | Standard: 0 - 1 V DC (analog) impedance: ≥ 5 kΩ Option: 0 - 10 V DC (analog), 4 - 20 mA (current) or mV/V (DMS) digital RS 232 |
| USB Output (Option "-USB) | USB Connection direct to Windows PC (requires TensionInspect Software, SW-TI3) Supplied with 3 meter USB-A to USB-B Cable. If USB Cable longer than 5 meters is required, a USB Signal Booster is required. |
| Temperature drift | Less than ±0.05 % full scale/°C |
| Damping (fg) | Standard: 30 Hz (other values on request) |
| Temperature range | 10 - 45 °C |
| Air humidity | 85 % RH, max. |
| Power supply | +15...24 V DC, max. 50 mA regulated Code A10: max. +5 V DC, max. 20 mA regulated |
| Housing material | Aluminium |
| Weight, net (gross) | Approx. 1500 g (approx. 1800 g) |
| Connection to PD765 | SIGNAL:Grey (Sig+) to V+, Blue (Sig-) to COM DC-POWER: White (Exc+) to P2+, Black/Brown (Exc-) to P2- |
