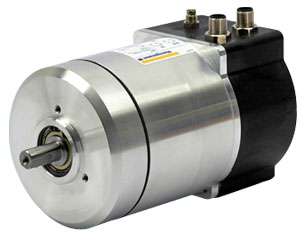

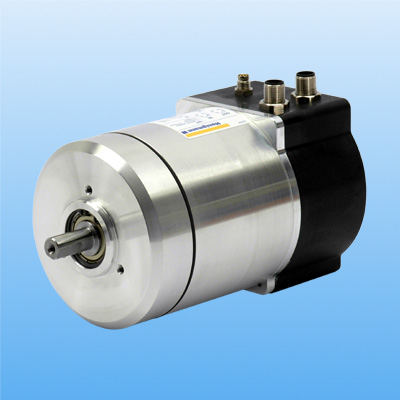

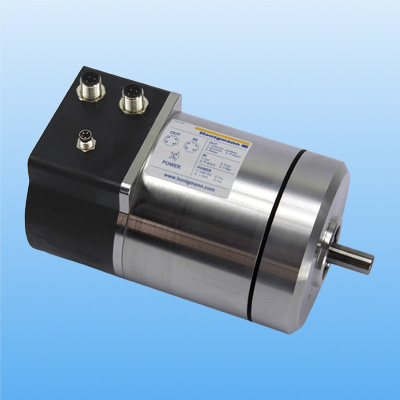

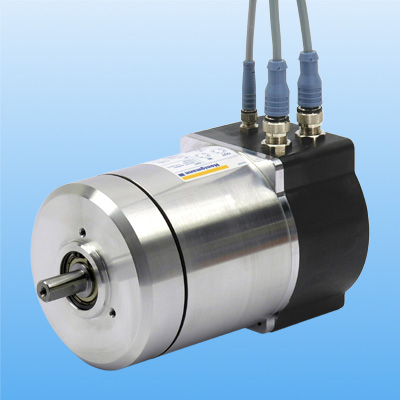

CTA Compact Torque Actuator

CTA Compact Torque Actuator
Click images to enlarge.
Hysteresis brake, electrically adjustable

CTA is an electrically adjustable brake without the need of any external power supply for generating the braking force.

Applications
• tension controlled unwinding
• actuating element for tension control
• simulation of load torques

Features

  • continuous adjustment of the braking force, electromotive
  • adjusted brake torque remains even without external power supply
  • cost-effective actuator for tension control
  • durable, wearless and maintenance-free
  • very smooth running and steady brake moment even at low rotational speeds
  • compact design requires little space
  • torque is independent of rotational speed in a wide range

Controlling the tension

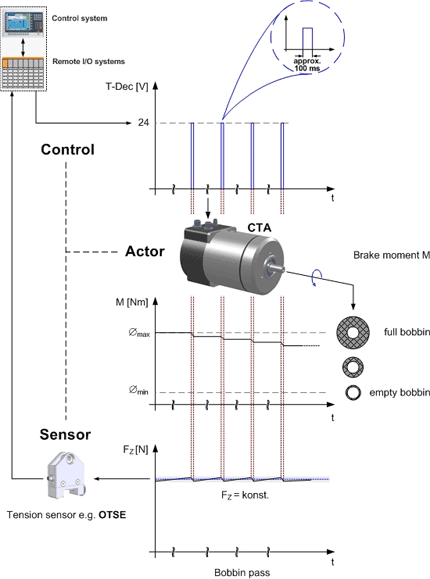

The following schematic diagram shows, how to control the tension during the bobbin pass in an unwinding process.
