SC Series Tension Indicator/Amplifier

Click images to enlarge.

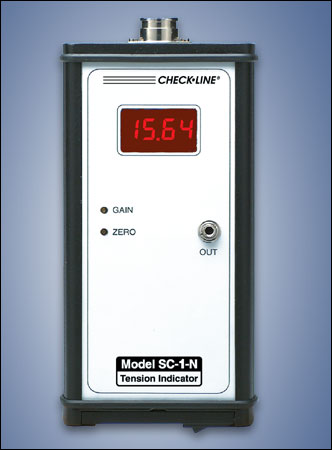

SC-1-N (1 Channel)
SC-3-N (3 Channel)

The SC Series Tension Indicator/Amplifier is designed for connection to our 3-Roller Tension Sensors type TE and TF. The SC indicators provide a regulated DC power source for the sensors and include a 3-1/2 digit LED tension display, calibration adjustment pots and 0-10 VDC analog outputs. On the SC-3-N single-channel Amplifier, a single display is shared by all channels selected via a slide switch.


  • Supplies separate 0-10 VDC analog output for each channel
  • Adjustable output frequency of 1.6/3.3/15/330 Hz.
  • Front panel calibration adjustment pots for each channel
  • Includes AC-Adapter, 115 VAC (for 230 VAC, add "-220" suffix)


Display Ranges0-50.0, 0-100.0, 0-199.9, 0-500, 0-1000, 0-1999, 0-2.00, 0-5.00, 0-10.00 and 0-19.99, switch selectable
Units of Measuregrams, cN or volts
Power for Sensors±12 V DC
Analog Output0-10 V DC, proportional to tension
Frequency Response1.6, 3.3, 15 or 330 Hz, selectable
EnclosureExtruded aluminum
Dimensions7.5 x 4.2 x 1.3" (190 x 106 x 34mm)
Power Required9-15 V DC or 9-15 V AC (supplied with AC-Adaptor)
Operating Temp.32 to 120° F (0 to 45° C)
Accessories IncludedAC Adaptor, Mounting bracket, output plugs (3) and instruction manual
