ET-2109LSR Intrinsically Safe Tachometer

ET-2109LSR Intrinsically Safe Tachometer
Click images to enlarge.

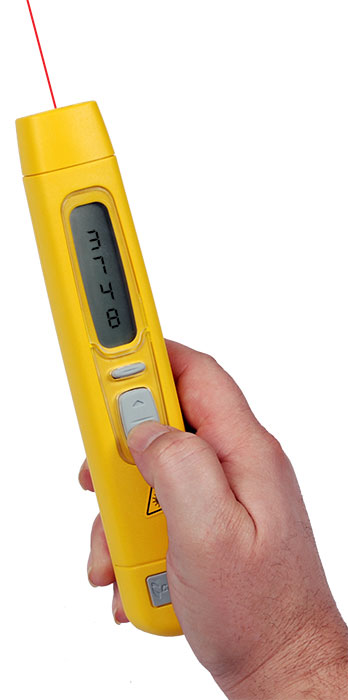

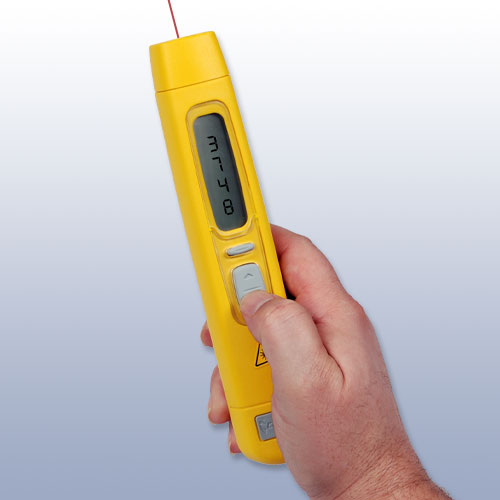

The new CHECK-LINE ET-2109 explosion proof tachometer is certified EEx ia IIC T4 - ATEX II 2 G to allow for use in a wide range of hazardous environments including petrochemical, Gas & volatile materials processing industries.

The ET-2109LSR is not certified for use in Mines.

Measuring Range
3.0 - 99,999 rpm
0.3 - 1,500.0 Meters or Yards/min


  • Certified for use in Hazzardous Areas (EEx ia IIC T4 - ATEX II 2 G rating)
  • Digital LCD display with 180° inversion capability
  • Includes factory calibration certificate
  • Memory holds last reading for 1 minute

Tachometer Accessories


Measuring Range3.0 - 99,999 rpm
0.3 - 1,500.0 Meters or Yards/min
(4,500 ft/min) or seconds
Resolution.001 rpm
Accuracy0.02% of reading ±digit
Optical Sensing Range2 - 80" / 50 - 2000mm
Laser Type635nm with power less that 1mW (class II)
Update Time0.8 sec
Capture Mode0.1 Sec
Count0-99999 revs or length in linear
Time Interval0-99999 seconds (auto)
Memory HoldHolds last reading for 1 minute
On Target IndicatorYes
Housing MaterialHigh Flow ABS - Metalised
Batteries4xAAA supplied
Dimensions21 L x 4 W x 3.5 D - cm
Measuring WheelIncluded, 0.1 meter circumference
Weight (kit)0.4 Kg
Warranty1 year
Sensing Distance 1 meter (39 inches)
Battery Life 6 hours continuous (shorter when using rechargeable type
Display Update Rate 0.8 seconds/update (0.1 sec for Max Value capture)

Complete Kit

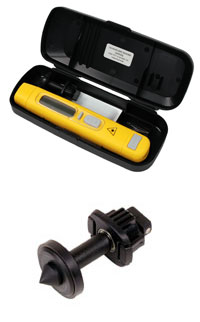

The ET-2109 is supplied as a complete kit with the tachometer, reflective tape, contact adapter, calibration certificate, instruction manual, 4xAAA batteries all in a hard plastic carrying case.

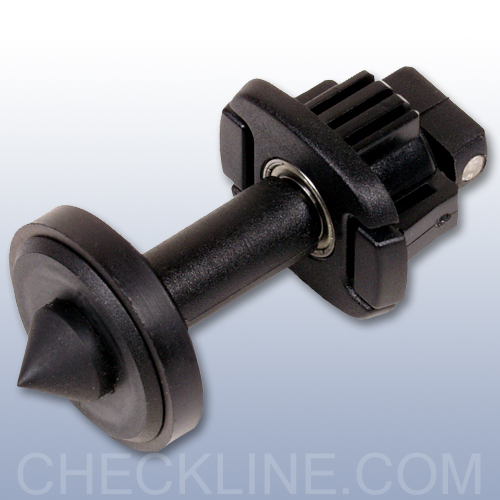

Combination Contact Adapter/Surface speed & length Adapter Included.
ET-2109LSR Intrinsically Safe Tachometer kit


Related Products

Intrinsically safe tachometer
Click image for more info
Intrinsically Safe Hand-Held Mechanical Tachometer
- Suitable in all surface industries in hazardous explosive areas
- Accuracy of ± 0.5% Full Scale
- Rubber shell on housing provides extra protection and improved grip

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Intrinsically Safe Tachometer kit, 3.0 - 99,999 rpm, contact & non-contact operation
Reflective Tape, 1/2" x 5'
Replacement contact Adaptor 0.1 m circumference wheel
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
