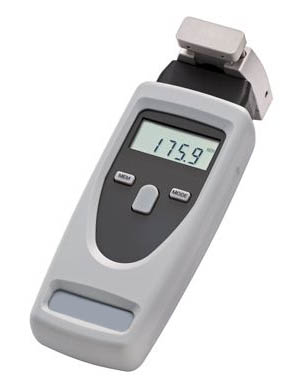

CDT-2000HD-TW Welding Wire Speed Meter

Made in Germany
The CDT-2000HD-TW accurately measures the linear feed speed of welding wire in feet, inches or meters per minute.
Click images to enlarge.
For use on Welding Wire Diameter Range of 0.032" - 0.120" (0.8 to 3.0mm)

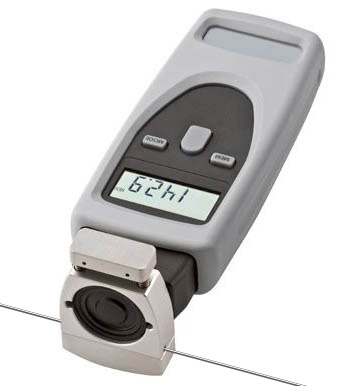

The CDT-2000HD-TW accurately measures the linear feed speed of welding wire in feet, inches or meters per minute. A precision measuring head secures the wire and maintains contact against the measuring wheel for accurate measurements. Based on the award winning CDT-2000HD tachometer, the CDT-2000HD-TW also measure RPM via contact and non-contact methods.

[A5-1279]

Features

  • Includes Traceable Calibration Certificate
  • For use on Welding Wire Diameter up to 0.120" / 3mm
  • Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
  • Total Length can be measured in feet, meters, inches.
  • Spring-loaded head and ball-bearing mounted contact roller eliminates slip and ensures accuracy
  • Designed and fabricated in Germany

How to Use the CDT-2000HD-TW

Related Products

CDT-2000HD hand-held tachometer
Click image for more info
Combination Contact and Non-Contact Digital Tachometer
- Measures speeds from as low as 1.00 rpm up to 99,999 rpm
CDT-ADAP-TW Welding Wire Feed Speed Meter
Click image for more info
Welding Wire Feed Speed Meter / Adapter
- For use on Welding Wire Diameter Range of 0.032" - 0.120" (0.8 to 3.0mm)

Specifications

Speed Range0.30 - 6,500 feet/min
0.10 - 1,999 meters/min
4.0 - 78,000 inches/min
Resolution.01 from 0 - 100
.1 from 100 - 1,000
1 from 1000 - 99,999
Measuring Ranges
Accuracy± 0.02% of reading or 1 digit
Display5 - Digit LCD, 10mm high
Decimal PointAutomatic
Memory SystemMaximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement SystemNon-Contact: Visible LED light beam
Contact: Contact adapter
Engineering UnitsRPM: RPM
Surface Speed: Ft/min, inch/min & meters/min
Length: Feet, inches, meters
Sensing DistanceUp to 24 inches (60 cm)
Display Update Time0.5 seconds or one measuring
Auto Power OffAfter 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life40 hours continuous use
Battery2 AA (1.5 V) or rechargeable
Weight6 ounces (170 grams)
Housing MaterialABS Plastic housing with removable protective rubber shell
Operating Temperature32 to 122° F (0 to 50° C)
Storage Temperature-4 to 150° F (-20 to 70° C)
Accessories includedContact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional AccessoriesShaft extension, 3.15 inches (80 mm)
Warranty5 years
Calibration CertificateIncluded

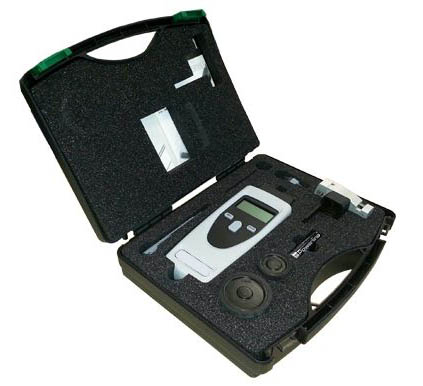

Complete Kit

The CDT-2000HD-TW includes the Tachometer, Welding Wire Speed Adapter, Slide-In Tachometer Contact Adapter, 6" & .1m Surface Speed Wheels, Cone Tip, Funnel Tip, Extension Shaft, Reflective Tape, Two (2) AA Batteries (1.5 V), Calibration Certificate and Operating Instruction Manual -- all supplied in a foam-fitted, hard-plastic Carrying Case.

Buy Now

Item Description Price
Welding Wire Speed Meter / Combination Tachometer kit [A5-1279]
$799.00
