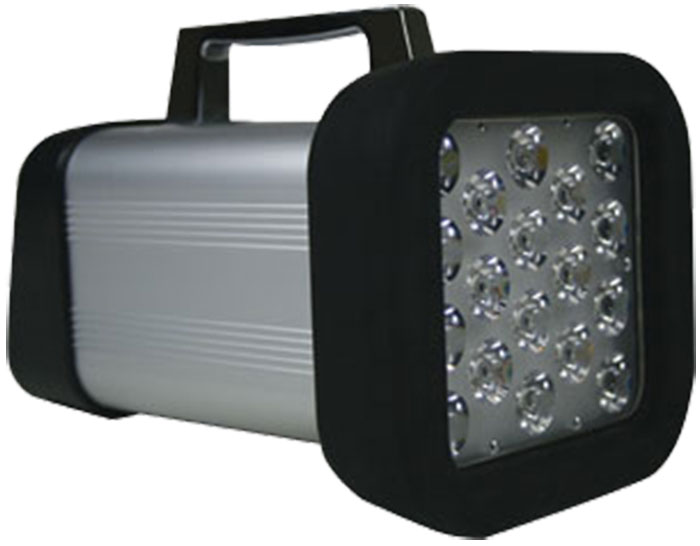

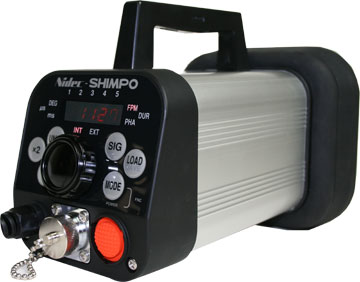

DT-361 High-Intensity LED Stroboscope (18 LEDs)
115V AC Powered

Made in Japan
Click images to enlarge.
The DT-361 High-Intensity LED Stroboscope is designed to measure rotational and reciprocating speed and is ideal for machinery process inspection. The DT-361 Stroboscope is capable of flashing its LED lights in a synchronous frequency to the operating machinery, creating the illusion of viewing slowed or frozen images. Utilizing this phenomenon of slowing or stopping the motion with the adjusted flash rate of its LED lights, machine parts and processes may be inspected for defects, aiding in preventative maintenance programs. The DT-361's LED technology extends operation due to the low energy requirement of the light diodes compared with xenon stroboscopes. Maintenance time and down time is reduced since there is no need to replace the bulb typical of xenon lit stroboscopes. The light output (Lux) of the LED array is far brighter than not only xenon powered stroboscopes, but all comparable LED stroboscopes on the market.

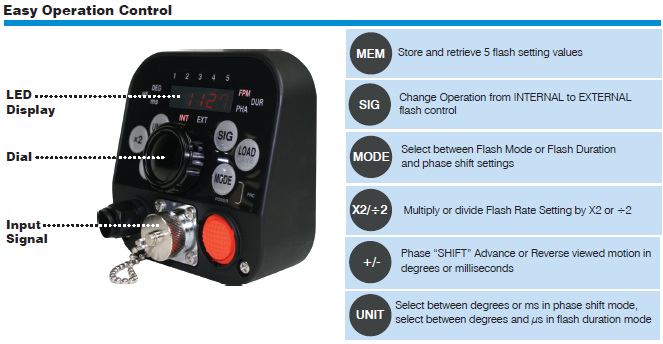

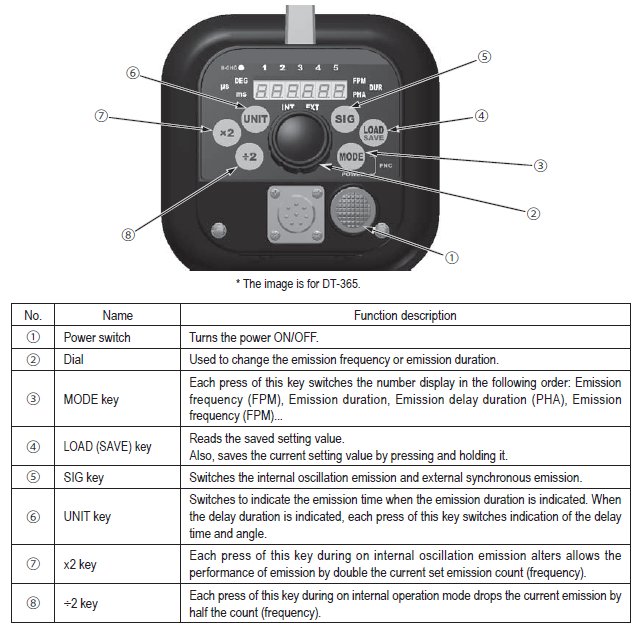

The DT-361 has a vibrant red LED display that is ideal for viewing in dark locations. The simple to use keypad plus rate adjustment dial aids in making quick changes of the flash rate to coincide with changes in the speed of your process. The dial allows fine-tune altering of the flash rate while the x2/÷2 keys enable large spanning over the entire flash range.

The DT-361 has the added feature of modifying the flash duration or on time which aids in picture clarity often necessary in printing processes. The phase shift function is ideal for rotating equipment where the user needs to change the focus on different blades, gears, or section of the machinery. The DT-361 is also capable of being synchronized with an input signal. To complete the system, the DT-361 has a power output to supply an input sensor if desired. The robust aluminium housing is NEMA4X (IP65) protected allowing usage in many harsh plant environments.

Typical applications for using the DT-361 is to determine speeds, inspect rotors, meshing gears, vibration diagnostic equipment, textile equipment, printing production lines, industrial fan inspection and many more.

Features

  • Operates from 115V AC
  • NIST-Traceable Calibration Certificate & Test Report optionally available
  • Extraordinary durability with extruded aluminum, NEMA 4X (IP65) construction
  • Bright LED display and simple controls aid in user operation
  • Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle
  • Flash controller dial permits accurate adjustments to the flash rate
  • LED technology greatly extends operation life and eliminates need to replace burned out bulbs
  • Capable of being synchronized with input signal from sensor or controller
  • Made in Japan
  • 2-Year Warranty

Related Products

AC-Powered LED Stroboscope (Universal Power)
DT-366 LED stroboscope
Click image for more info
Battery Powered LED Stroboscope

Specifications

Range FPM (RPM)60-120,000; From Input Signal 40-35,000
Accuracy±0.02% of reading
Lux Rating@ 6000 FPM & 3.6° (100us): 8" (20 cm) Distance= 3047 Lux with 4.7" (120mm) irradiation diameter 20" (50 cm) Distance = 2444 Lux with 9" (230mm) irradiation diameter
Lamp LifetimeTyp. 50,000 hours. Varies depending on usage
Display6 digit Red LED
ResolutionInternal Mode 1 FPM. External Mode 0.1 FPM
Flash Duration0.1 to 3.6° (0.14 µsec to 400 µsec)
Phase Shift0 to 999 msec; 0 to 359°
Power Requirement115V AC with USA Power Cord
Synchronization Input SignalH level: 2.5 – 12V; L level: 0 – 0.4V
Input Signal Range FPM (RPM)40 – 35,000
Input Signal Flash Delay FPM (RPM)60-10,000
Power Supply OutputDC12V 40mA for sensor input
Temperature Limits32 to 104 °F (0 to 40 °C)
Humidity Limits35 to 85% RH
Protection ClassNEMA 4X (IP65)
Product Weight4 lbs (1.8 kg)
ApprovalsRoHs
Warranty2 Years
Included AccessoriesInput Signal Connector, flash-light style attachable handle

Downloads

Buy Now

Item Description Price
High Intensity LED Stroboscope, 115V AC-Powered with USA Power Cord
$967.50
Accessories
3P-EURO
Grounded 3 Prong Euro Plug Adapter for DT-361 Stroboscope
$5.00
NISTCAL
NIST Traceable Calibration Certificate
$100.00
SAS-360
Flexible swing arm for DT-361, DT-365, DT-365E LED Stroboscopes
$350.00
SAS-360BASE
SAS-DT360 Mounting base, for use with SAS-360 Flexible Swing Arm
$70.00
CABLE-361-10FT
Daisy chain syncing cable for DT-361 and DT-365 stroboscopes with Connectors, 10 ft length
$125.00
