DT-315AEB Digital Stroboscope with External Battery

Made in Japan
Digital Stroboscope with External Battery
Click images to enlarge.
The DT-315AEB and DT-315AX are out of stock, we do not know if, or when they will be available.

Flash Range: 40-35,000 RPM/FPM

Portable, highly stable, and accurate, industrial-quality tool for non-contact RPM measurement, inspection, and observation of moving parts by "freezing" or "slowing down" the action.

Features

  • NIST-Traceable Calibration Certificate & Test Report optionally available
  • Highest accuracy and most stable flash rate
  • Accepts external trigger input and provides synchronizing pulse output
  • Easy-to-read LED display
  • Phase shift for best view and flash photography
  • Easy-to-operate controls
  • Flash rate control
  • Detachable pistol-grip handle
  • Instant double and half-rate flash selection for error-free reading
  • Provides 12 V DC power for external sensors
  • Made in Japan
  • 1-Year Warranty

Optional Carrying Case

DT-315AEB in optional carrying caseHard plastic carrying case with custom molded insert allows for safe storage and easy transportation. Provides storage space for the DT-315A, AC adapter, and accessories.

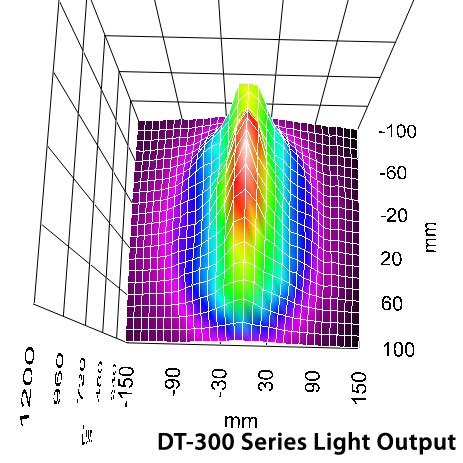

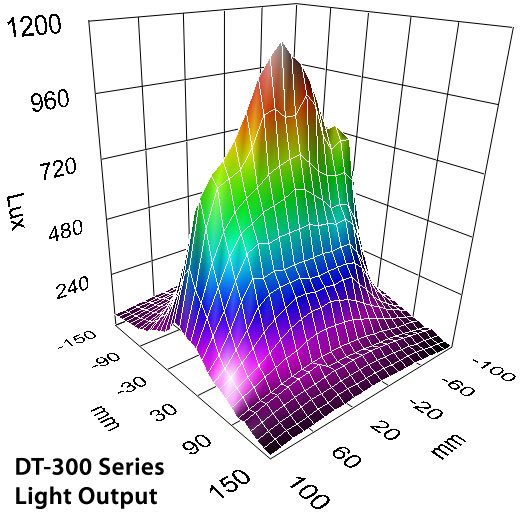

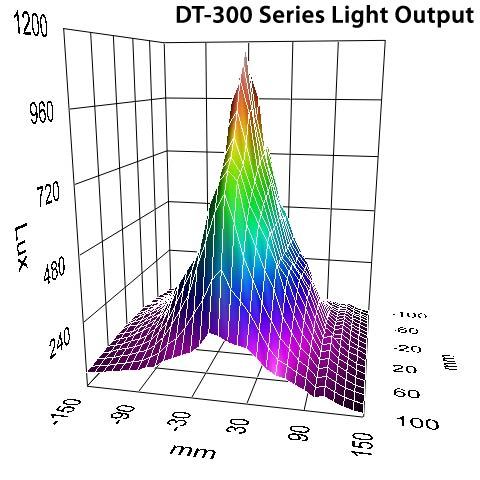

Light Output (LUX) vs Distance

light output
at 30 cm Distance, 6000 flashes/min (FPM)

Specifications

Flash Range40-35,000 FPM
AccuracyInternal Mode: ±0.01% of reading
External Mode: ±0.01% or ± 1 digit
Resolution0.1 FPM: 40.0 - 4,999.9 FPM
0.2 FPM: 5,000 - 7,999.8 FPM
0.5 FPM: 8,000 - 9,999.5 FPM
1 FPM: 10,000 - 35,000 FPM
Drift±0.01% per °C
Update TimeInternal Mode: 0.2 seconds
External Mode: ±0.01% or ± 1 digit
Input SignalLO level: 0-0.4 VDC
HI level: 2.5 - 12 VDC -- or open collector (npn)
pulse width 50us min
Output SignalSynchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
Display & RateDivide or multiply by 2, selectable
Operating Temperature32-104 °F (0-40 °C)
Display5 digits, 10 mm high, red LED
FlashtubeXenon, 10 W maximum
Flash Duration10-30 µs
Sensor Power Supply12 VDC ± 0.5V (50ma)
Power RequirementsExternal Rechargeable 12 V battery
Includes Battery Charger 115V AC (DT-315AEB) or 230V AC (DT-315AEB-2)
Weight4.4 lbs. (2 kg)
Dimensions4.7 x 5.6 x 9.7" (120 x 141 x 248 mm)
Warranty2 Years
EXTERNAL MODE ONLY
Phase Shift0 - 359° with 1° resolution or
0 - 333 ms from 200 - 3,000 FPM
Input Impedance10,000 ohms

Downloads

Buy Now

Item Description Price
Digital Stroboscope with External Battery - Please contact us for pricing and availability.
$
Digital Stroboscope with External Battery (230V ADAPTER) - Please contact us for pricing and availability.
$
Digital Stroboscope without battery pack or charger - Please contact us for pricing and availability.
$
