MV-110 Motorized Test Stand - REPLACED BY MX-110

Click images to enlarge.

The MV-110 has been replaced by the MX-110, click here to go to the MX-110 Webpage.

Capacity: 110lbs / 50Kg / 490N

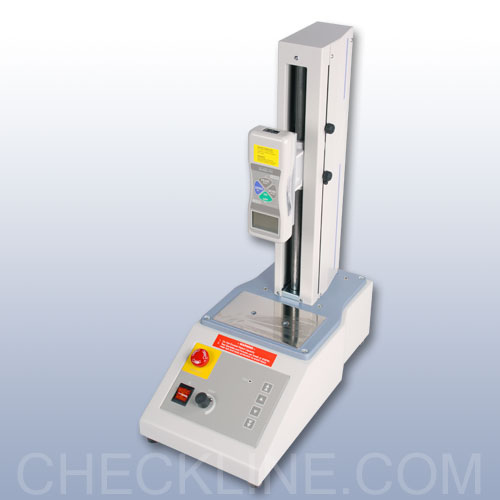

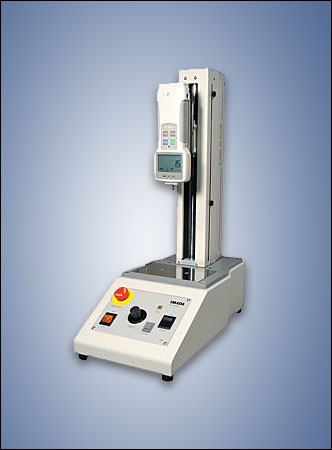

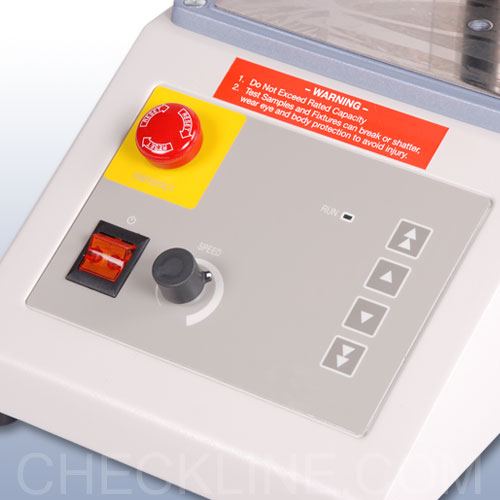

The Check-Line MV-110 test stand offers consistent and reliable testing. Combination of screw system and state of the art brushless motor provides extremely smooth and powerful operation over the entire speed range. The MV-110 accepts any of the standard range force gauges. Quick switch and Emergency Stop features are also included.

*FORCE GAUGE NOT INCLUDED
Designed to work with the DS2, Z2 & ZP force gauges.

Features

  • One stand for both compression (push) and tension (pull) tests
  • Optional digital distance meter
  • Maximum clearance 9" (with extender 14")
  • Screw feeder for smooth, positive movement
  • No programming required

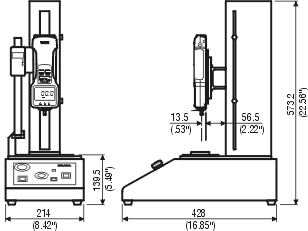

Dimensions

Related Products

DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output
Click image for more info
Lexan Safety Shield
- Helps protect personnel from injury by containing debris during testing
Click image for more info

Ordering Guide

Model Speed Range Distance Meter
MV-110 0.4 – 11.5 in/min
(10 - 292 mm/min)
No
MV-110-SS 0.26 – 8.0 in/min
(6.6 - 203 mm/min)
No
MV-110-MS 0.7 - 23.0 in/min
(18 - 584 mm/min)
No
MV-110-HS* 1.5 - 47.0 in/min
(38 - 1194 mm/min)
No

MV-110S 0.4 – 11.5 in/min
(10 - 292 mm/min)
Yes
MV-110S-SS 0.26 – 8.0 in/min
(6.6 - 203 mm/min)
Yes
MV-110S-MS 0.7 - 23.0 in/min
(18 - 584 mm/min)
Yes
MV-110S-HS* 1.5 - 47.0 in/min
(38 - 1194 mm/min)
Yes
*HS models have a limited capacity of 55lbs/25Kg/245N

Specifications

Capacity110lbs / 50Kg
Travel RateRefer to Ordering Guide above
DimensionsRefer to Dimensions above
Compatible GaugesZ2, ZP and DS2
Warranty2 years
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second
