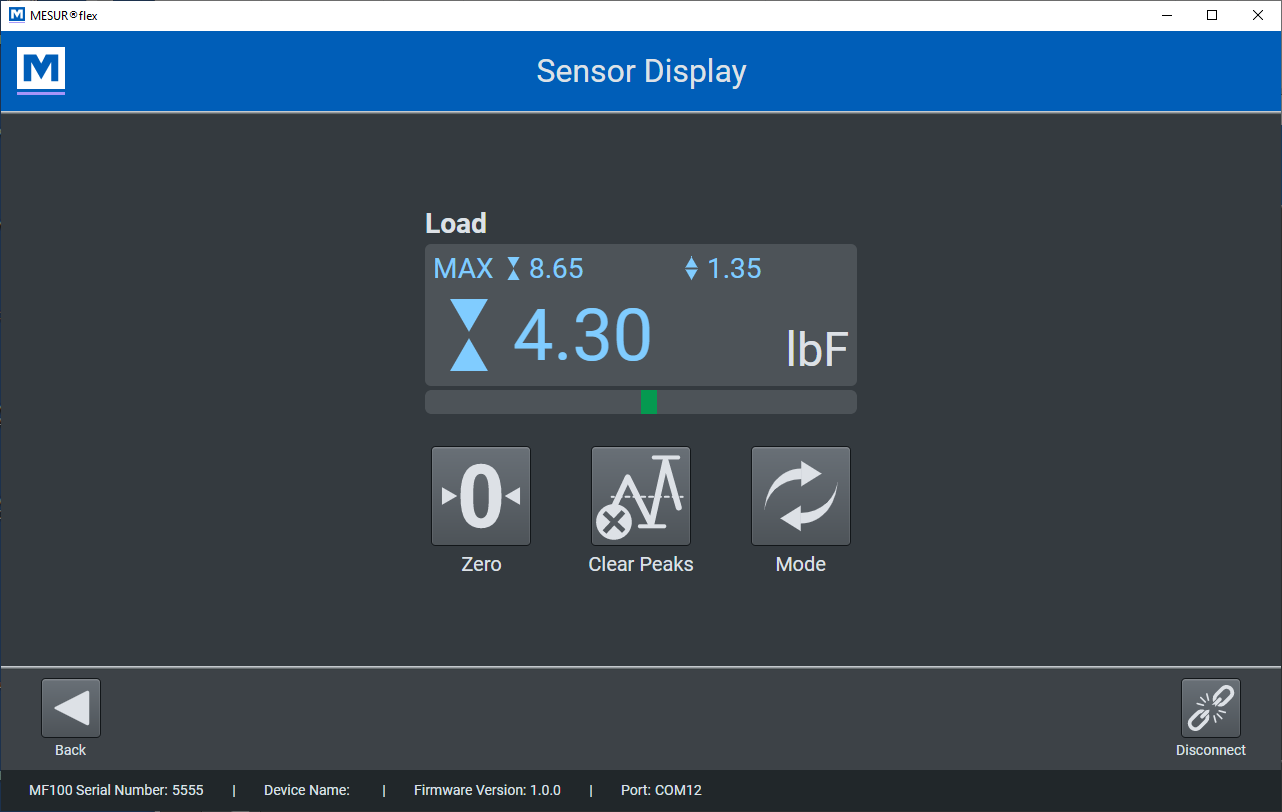

A built-in screw terminal block allows quick, solder-free connection of sensor wires to the interface. Through MESUR®Flex, select the sensor's capacity, add a unique identifier, and calibrate the sensor through a step-by-step wizard. The software contains basic settings for changing measurement units, viewing peak, real-time, and time-averaged data. Or, control the sensor and acquire data via an extensive library of serial commands, ideal for integration into a data collection system.
Use the intuitive MESUR®Flex wizard to set sensor capacity, assign unique identifiers, and complete step-by-step calibrations. The software provides instant access to peak, real-time, and time-averaged data with customizable measurement units. For advanced users, an extensive library of serial commands allows for seamless integration into your existing data collection systems.

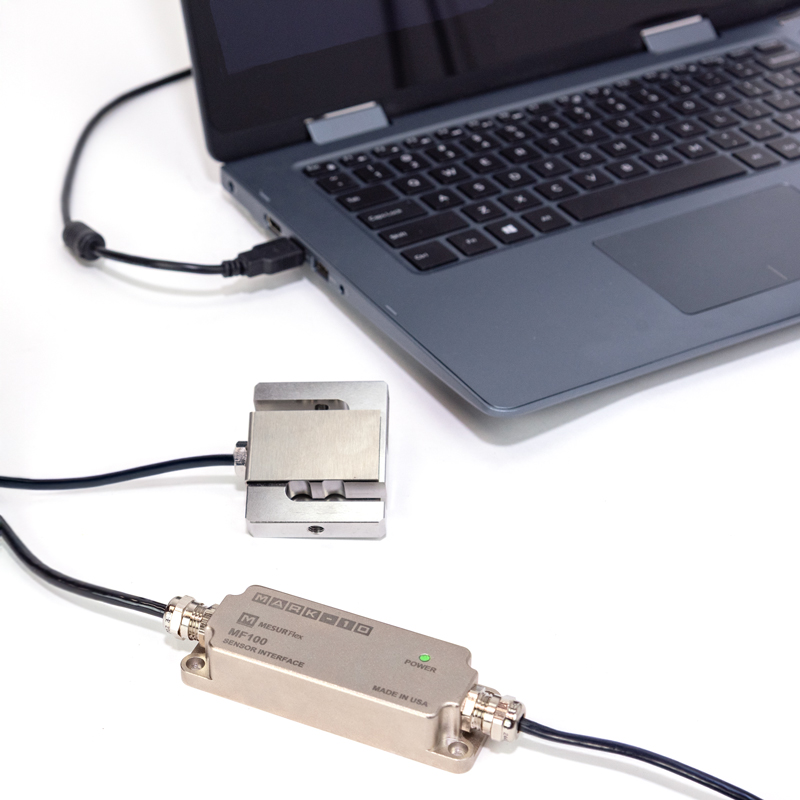

- Connect strain gage-based load cells, force sensors, and torque sensors to a PC
- Screw terminal block allows for easy connection of sensor wires

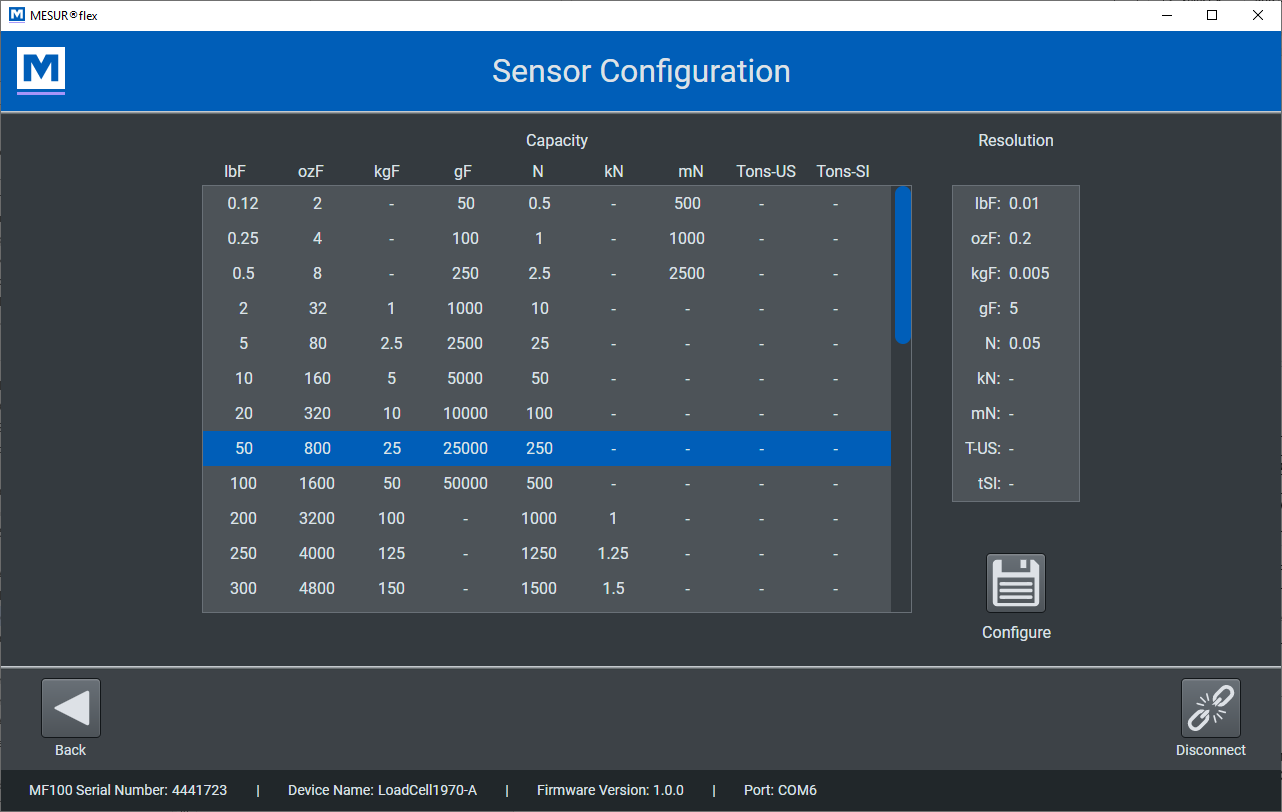

- Configure sensor capacity, resolution, and identifier via MESUR®Flex
- Calibrate the sensor on a PC with an intuitive step-by-step interface in MESUR®Flex
| Sensor Requirements: | Type: Full bridge Resistance: 300 - 1000 ohms Sensitivity: 1–3mV/V full scale |
| Force range | 0.12 lbF - 500 T [0.5 N - 5,000 kN] |
| Torque range | 10 ozFin - 40,000 lbFft [7 Ncm - 57,000 Nm] |
| Load accuracy | ±0.1% of full scale + sensor |
| Data output rate | Up to 500 Hz, user-configurable |
| Weight | 0.4 lb [0.2 kg] |
| Shipping weight | 2.0 lb [0.9 kg] |
| Environmental requirements | 40 - 100°F, max. 96% humidity, non-condensing |
| Conformance | CE, UKCA |
| Warranty | 3 years |
