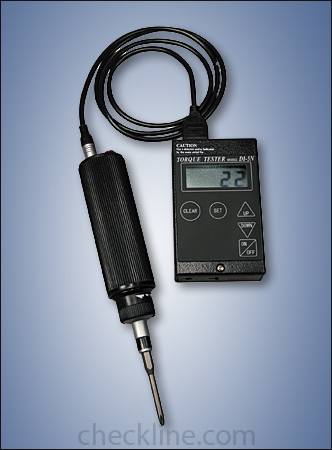

DI-5N-RL Digital Torque Screw Driver

Click images to enlarge.
As of September 2009 the DI-5N-RL is no longer available. We recommend the DIS-RL as a replacement, click for more info

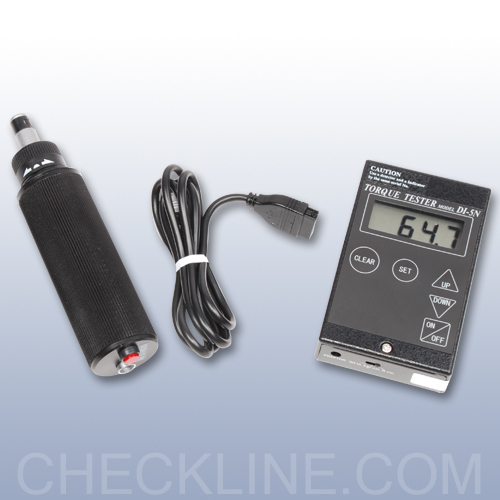

Digital Torque Screwdriver Tester is ergonomically designed, extremely lightweight and good for use as a production tool. It tightens or loosens screws up to 90 lbf-in., yet can be used in difficult to reach places. The torque Screwdriver can also be evaluated by comparative tests on a given fastener. Breakaway tests can be performed. This torque screwdriver tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak and continuous data for SPC (statistical process control) via the RS232 port. DI-5N-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. The Torque Screwdriver is sold in kit form including display unit, screwdriver with cable, AC adapter/charger and carrying case.

Features

  • Ergonomic, light weight, rugged metal construction

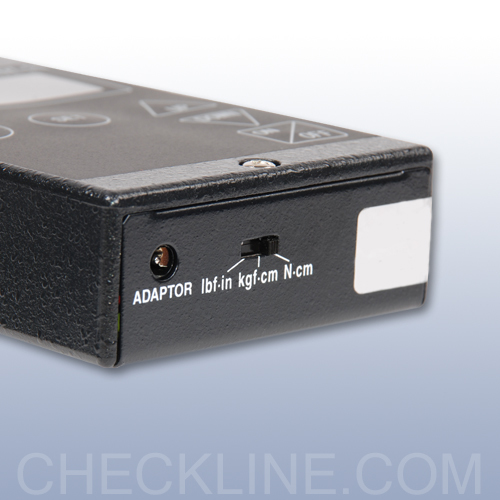

  • lbf-in, Kgf-cm and N-cm (selectable)
  • Peak, Real Time and Peak Down measuring mode (selectable)
  • Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
  • 400 peak data memory for recall or for SPC download
  • Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
  • Zero reset button on the driver for easy operation
  • Both clockwise and counterclockwise operation

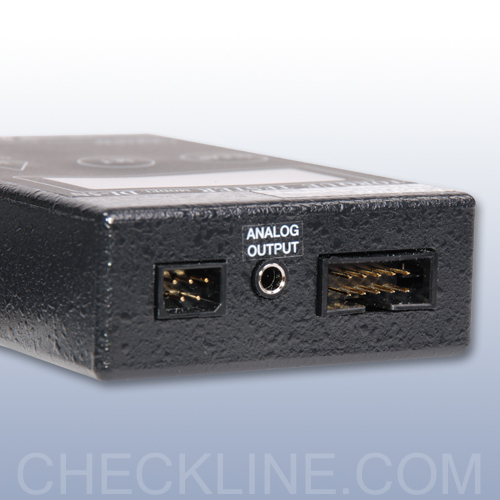

  • RS-232 output for SPC capability (peak data only)
  • Runs on internal NiCad batteries (8 hour use)
  • Includes NIST-Traceable Calibration Certificate
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty

Force Ranges

ModelCapacity
DI-5N-RL20.15 - 18.00 lbf-in
0.15 - 20.00 kg-cm
1.5 - 200.0 N-cm
DI-5N-RL101.5 - 90.00 lbf-in
1.5 - 100.0 kg-cm
15 - 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)

Related Products

SW-1 Software for force and torque
Click image for more info
Data Acquisition Software for Force Gauges & Torque Gauges
- Full SPC and graphing capabilities
- Automates your data collection
- Provides a running log of all measurements along with a chart of the data as well as statistical information
Click image for more info
Torque Screwdriver - DISCONTINUED ITEM
- Peak, Real Time and Peak Down measuring mode (selectable)
- Both CW and CCW operation
- 400 data memory for recall or for SPC download
Click image for more info
MGT
Digital Torque Gauge - REPLACED BY TT03
- Display "real-time" or "peak" force
Click image for more info
Digital Torque Gauge - DISCONTINUED MODEL
- Display "real-time" or "peak" force
Click image for more info

Complete Kit

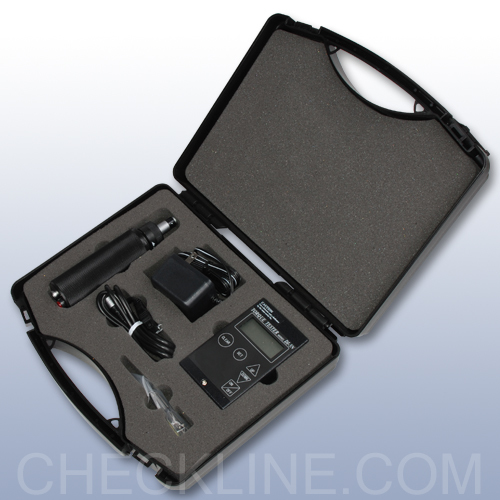

Torque Screwdriver sold as kits including carrying case, Phillips tips and AC adapter/charger

Downloads

Buy Now

Item Description Price
DI-5N-RL2 Torque Screwdriver - DISCONTINUED ITEM
$0.00
DI-5N-RL10 Torque Screwdriver - DISCONTINUED ITEM
$0.00
