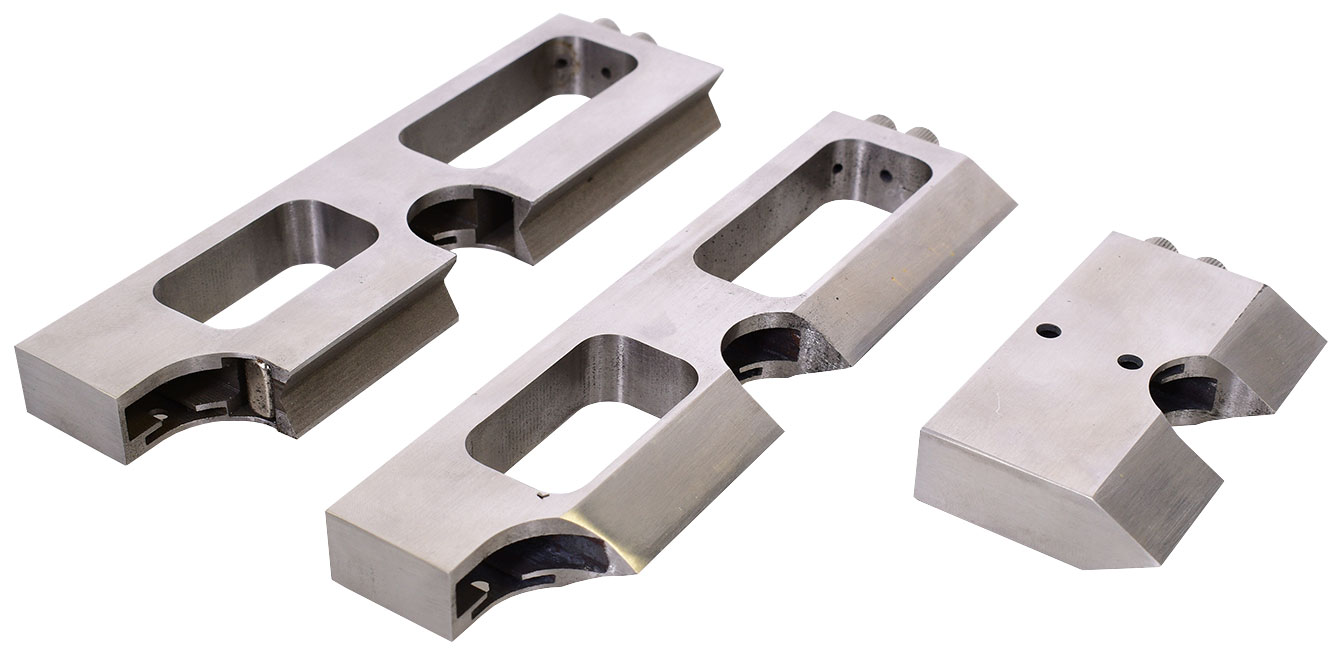

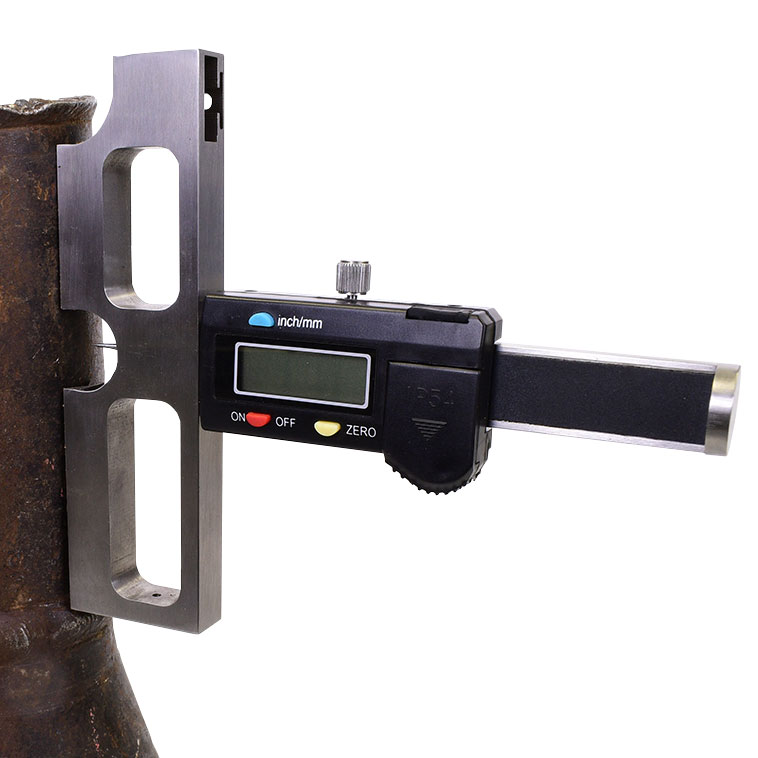

The DPG-4M is the new and improved spring loaded digital pit gauge featuring an exchangeable magnetic 4 7/8" V-groove base with center and cantilever positions in addition to two knife edge bases: the standard 2 3/8" long base and a 4 7/8" long base with two positions. With the magnetic V-groove base you can easily hold the gauge in any vertical, flat or overhead position, and the three bases ensure maximum versatility. Simple to use, the DPG-4M is water resistant and made of hardened stainless steel, producing accurate measurements of surface pits, gauges, dents, undercuts and more. Only 0.050" in diameter, the probe can access even the smallest pits.
| Range | 0 - 1.190" (0 - 30mm) |
| Resolution | 0.0004" (0.025mm) |
| Accuracy | ±0.001" (0.025mm) |
| Protection | IP-54 |
| Temperature Range | 32°F - 105°F (0°C - 40°C) |
| Relative Humidity | 80% |
| Storage Temperature | 14°F - 140°F (-10°C - 60°C) |
| Power | One (1) 1.55V Button Battery |
| Knife Base | 2 3/8" and 4 7/8" (60 and 125mm) |
| Magnetic | "V" Groove base 4 7/8" (125mm) |

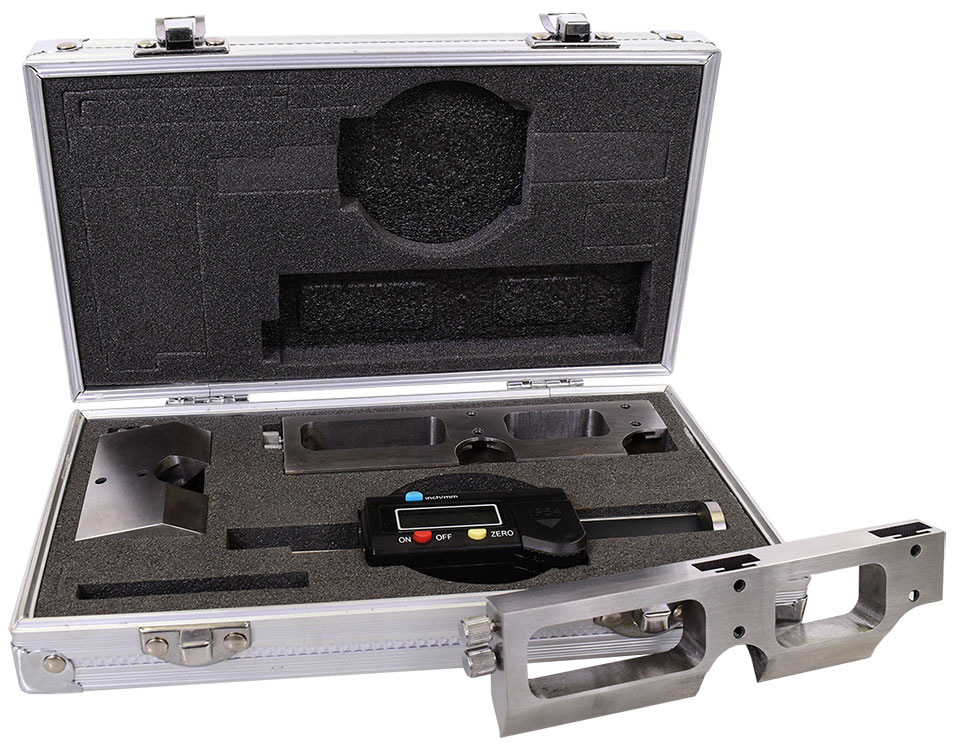

-Aluminum Storage Case
-Spring Loaded, digital depth gauge with sharp pointed tip
-Standard 2 3/8" knife base
-Two Position 4 7/8" knife base
-Two Position 4 7/8" Magnetic "V" Groove base
-Two sets of attachment screws
-Spring Loaded, digital depth gauge with sharp pointed tip
-Standard 2 3/8" knife base
-Two Position 4 7/8" knife base
-Two Position 4 7/8" Magnetic "V" Groove base
-Two sets of attachment screws
| Item | Description | Price | ||
|---|---|---|---|---|
Pit Gauge Kit with New Magnetic V-Groove Base | $385.00 | |||
| Accessories | ||||
NIST-Traceable Calibration Certificate for Digital Pit Gauge | $110.00 | |||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
