DPG-2 Digital Pit Gauge

DPG-2 Digital Pit Gauge
Click images to enlarge.

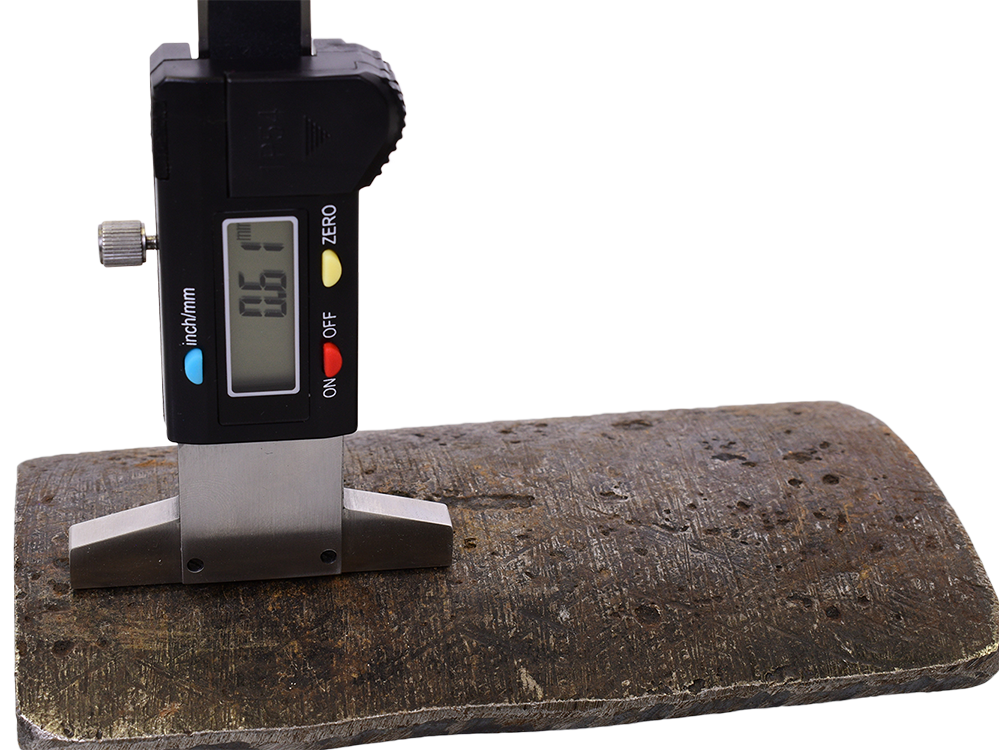

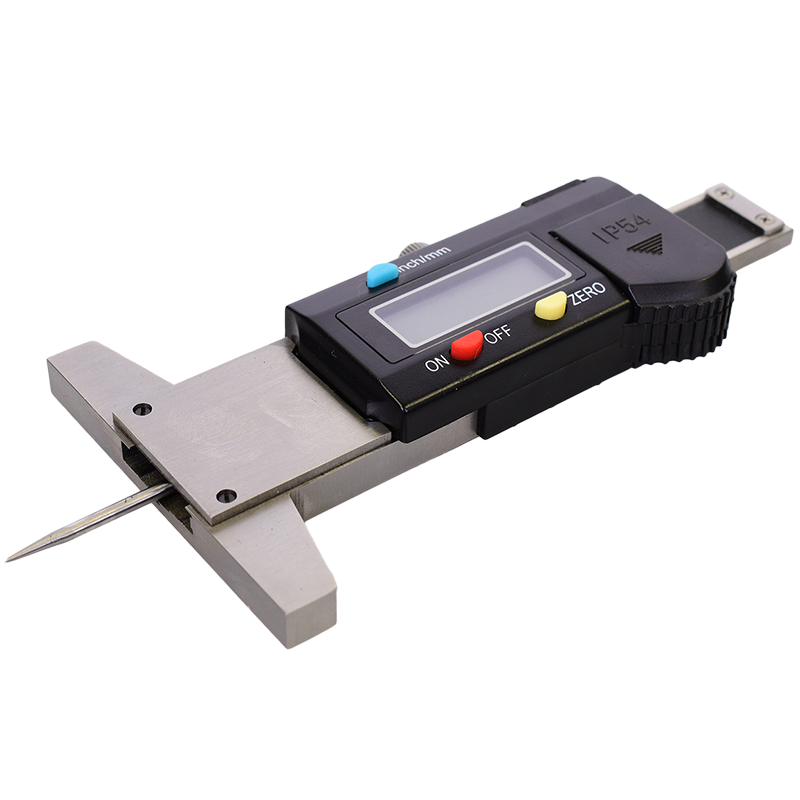

The DPG-2 is a unique Pit Gauge, based on a Direct Reading Digital Vernier Caliper.

The DPG-2 is easy-to-use and provides fast and accurate measurements of surface pits, gauges, dents, undercut, etc.

The DPG-2 is made in hardened stainless steel and its 0.050" (1.2 mm) diameter probe, will access even the smallest pits.

*Waterproof Seal

Features

  • MM/IN - Switch between mm and inch measurements
  • ON/OFF - Now just move the slide to turn unit On/Auto/Off.
  • ZERO - Set “ 0” at any position
  • IP54 protection level for water spray, dust, etc.
  • Accuracy of +/- 0.001"
  • Can measure up to a 1.18" depth
  • Made of hardened stainless steel
  • 0.050" diameter probe

Specifications

Range1.25 in | 30mm
Resolution0.0004 in | 0.01mm
Permissible Error+/- 0.001 in | +/- 0.03mm
Measuring Speed≤ 1.5 m/sec.
Working Temperature0-40 °C
Working Relative Humidity≤ 80%
Storage Temperature-10-60 °C
PowerOne Button Battery 1.55 V, LR44 / A76
Warranty1-year

Downloads

Buy Now

Item Description Price

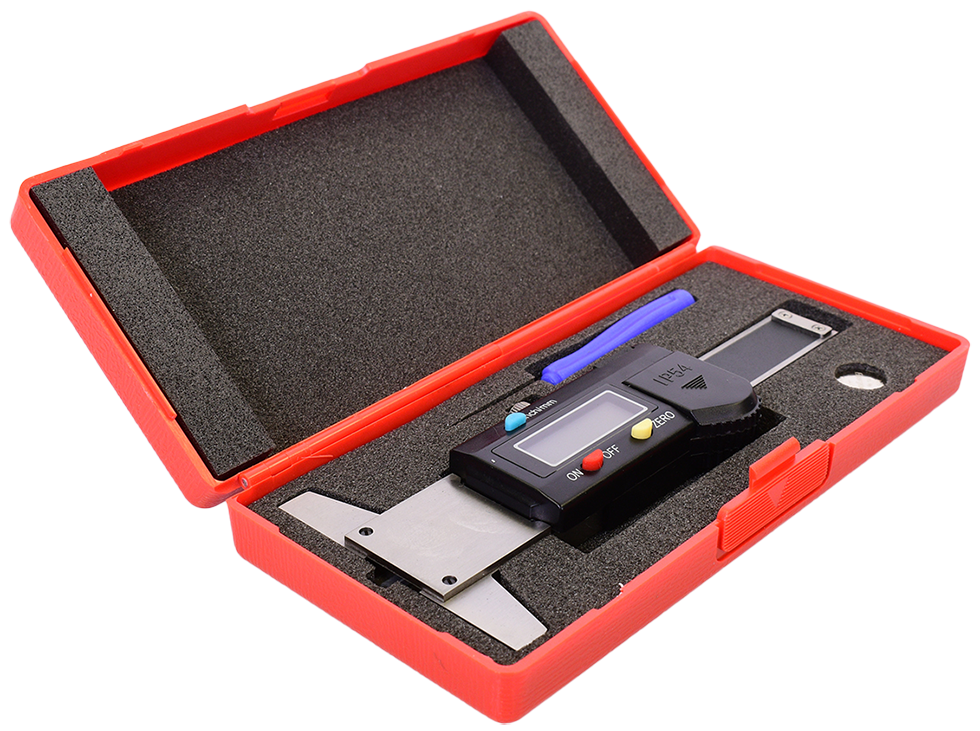

Digital Pit Gauge with case, Range: 1.25 in / 30mm
$140.00
Accessories
DPG-NIST

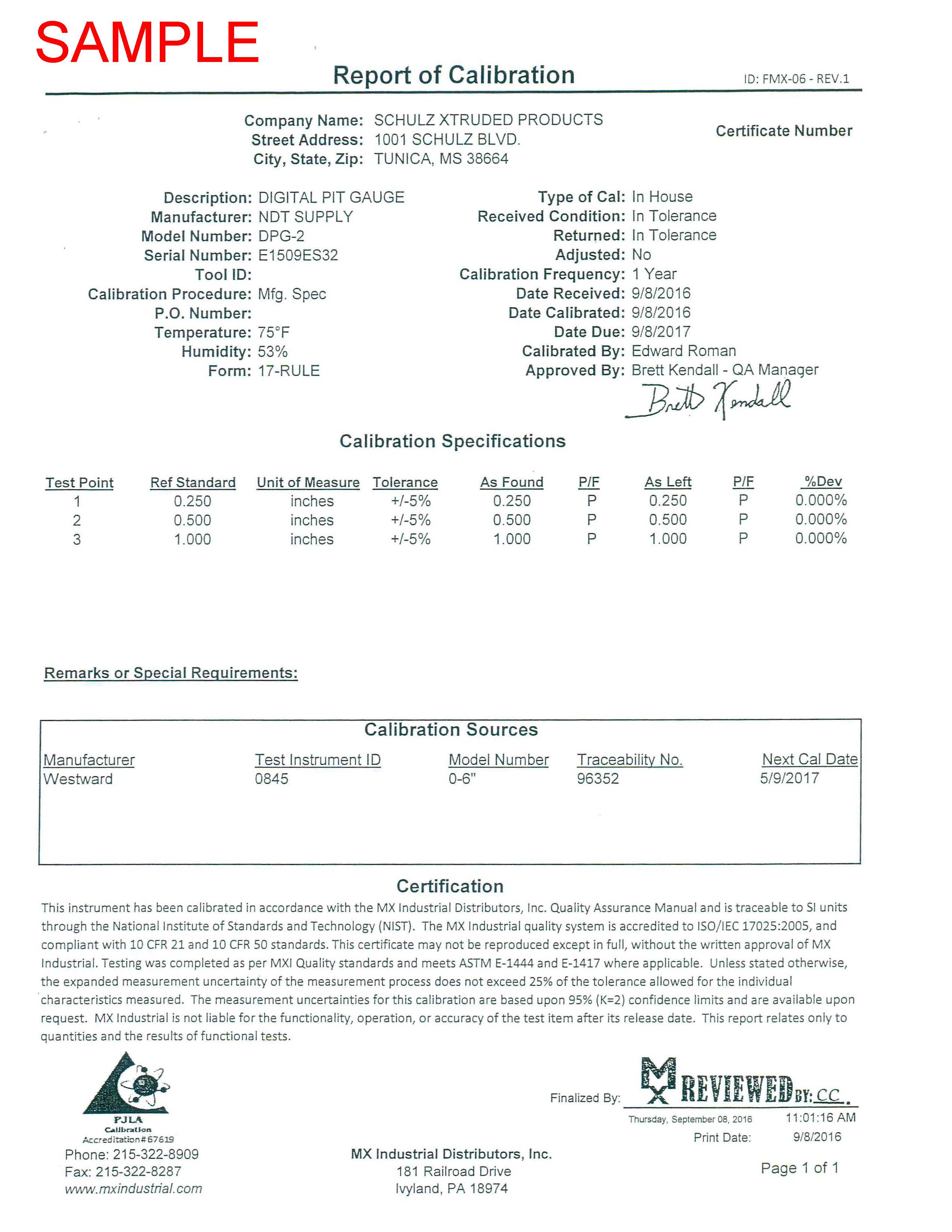

NIST-Traceable Calibration Certificate for Digital Pit Gauge
$110.00
