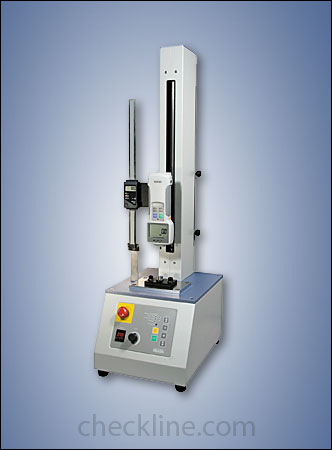

MX-275 Motorized Vertical Test Stand

Click images to enlarge.
Capacity: 275 lbs / 125 Kg / 1225 N

The new MX-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

Connect the MX-275 test stand with a Z2 or ZP Series force gauge and enable force controlled testing.

High/Low Set Point Force Control
Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.

One Way Force Control
Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing.

Speed control, quick switch and emergency stop are standard features. Optional timer and digital distance meter available.

*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges.

Features

  • One stand for both compression (push) and tension (pull) tests
  • Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control
  • Clearance 16"
  • Force Controlled operation with ZP & Z2 Series force gauges
  • Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
  • Wide speed range: 0.4 – 9.4 in/min (optional speed ranges available)
  • Optional timer and digital distance meter

Ordering Guide

ModelSpeed RangeOptional Distance Meter
MX-2750.4 up to 9.4"/min
(10 - 239 mm/min)
No
MX-275-HS0.7 up to 23"/min
(18 - 584 mm/min)
No
MX-275-LS0.15 up to 4.2"/min
(4 - 107 mm/min)
No
MX-275S0.4 up to 9.4"/min
(10 - 239 mm/min)
Yes
MX-275S-HS0.7 up to 23"/min
(18 - 584 mm/min)
Yes
MX-275S-LS0.15 up to 4.2"/min
(4 - 107 mm/min)
Yes

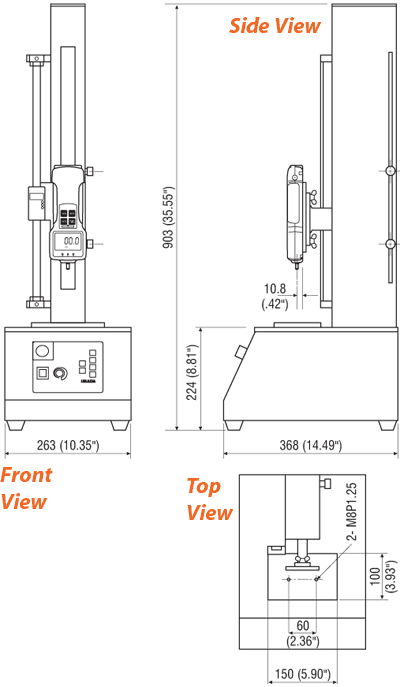

Dimensions

Related Products

Click image for more info
ZP
Digital Force Gauge with USB Output
- USB, RS-232C, and Analog outputs
Click image for more info
Z2
Digital Force Gauge
- Output signals (RS 232 C, analog and Mitutoyo Digimatic)
SW-1 Software for force and torque
Click image for more info
Data Acquisition Software for Force Gauges & Torque Gauges
- Full SPC and graphing capabilities
- Automates your data collection
- Provides a running log of all measurements along with a chart of the data as well as statistical information
Click image for more info
Lexan Safety Shield
- Helps protect personnel from injury by containing debris during testing
Click image for more info

Specifications

Capacity275 lbs / 125 Kg
Travel Rate0.4 - 9.4 in/min
DimensionsRefer to Dimension above
Compatible GaugesZP, Z2 and DS2
Warranty2 years
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second

Buy Now

Item Description Price
MX-275 Motorized Vertical Test Stand
$3,750.00
MX-275S Motorized Vertical Test Stand with Distance Meter
$4,440.00
Accessories
Lexan Safety Shield
$295.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
