IntelliMESUR-LR F105 / F305 / F505 / F505H IntelliMESUR Force Test Frame

Made in USA
Mark-10 Series F
Click images to enlarge.
Load Cell and Grips Sold Separately

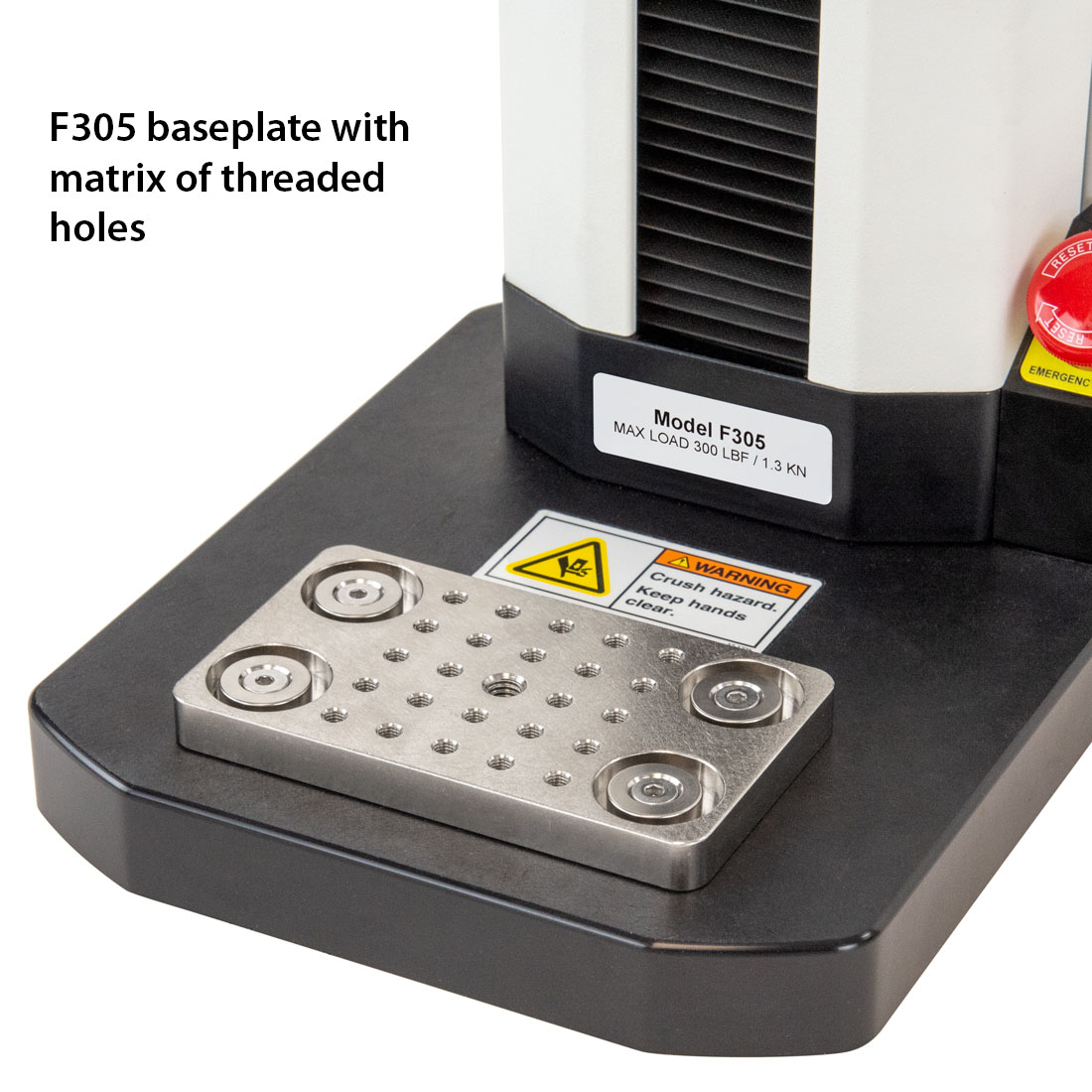

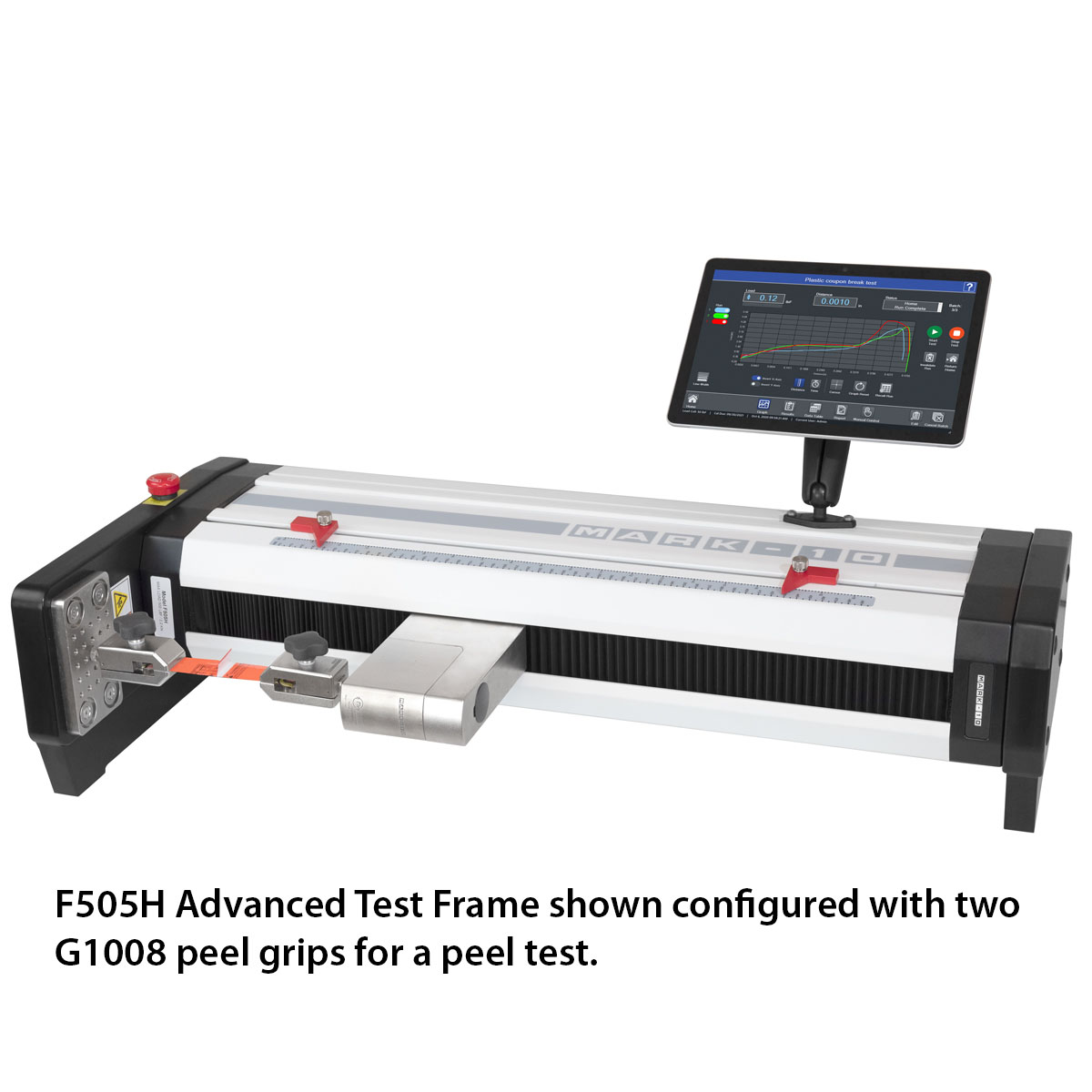

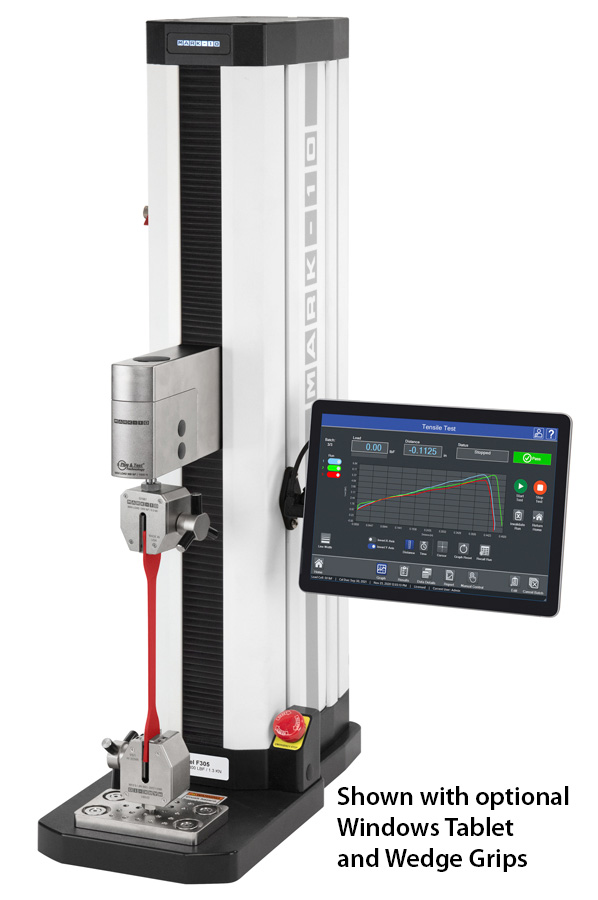

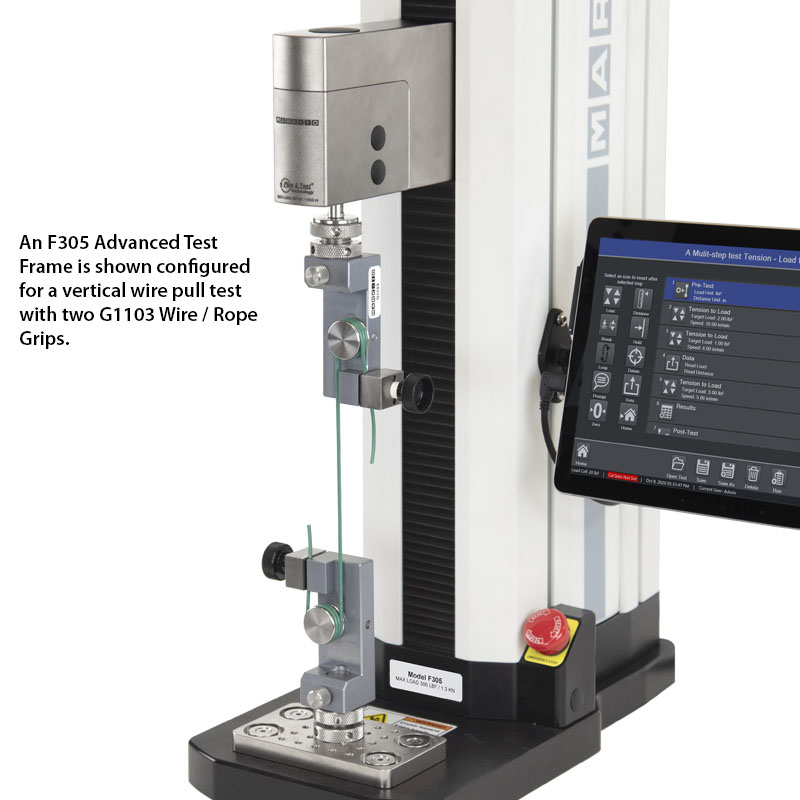

Series F force test systems are designed for tension and compression force testing applications, with force capacities up to 500 lbF (2.2 kN). Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position.

Stepper motors and controllers drive a ball screw and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

IntelliMESUR

IntelliMESURIntelliMESUR® software is an integrated solution running on Windows tablets and PCs. Select a pre-loaded 10.1” tablet with mounting bracket or use your own Windows device. With IntelliMESUR®, you can create and run a wide range of basic and multi-step tests, including:

  • Limit testing to a load, break, or distance
  • Height measurement
  • Load holding
  • Cycle testing
  • Multi-step testing, utilizing any combination of the above functions
Run individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report.


Run a test via the Graph or Results views, and switch views as needed. Pass / Fail indicator easily identifies problematic samples. Individual runs may be invalidated if, for example, the sample slips out of the grips, or the test was interrupted.

IntelliMESUR results



From IntelliMESUR®’s home screen, quickly access up to 10 favorite tests. Associate an image with each favorite for easy identification.

Basic tests - Select a test type, and IntelliMESUR® will guide you through the setup.

  • Load Limit
  • Distance Limit
  • Break Limit
  • Load Hold
  • Cycle
Multi-step tests - Building upon basic test wizards, easily incorporate any combination of steps, with the ability to loop a sequence of steps. Select from:

  • Move to load
  • Move to distance
  • Move to break
  • Hold a load or position
  • Hold a load or position
  • Loop / cycle
  • Datum
  • Prompts
  • Save current load or position
  • Zero load or position
  • Return to Home position


Multi-step tests

Force Ranges

ModelTest Frame Capacity*Maximum Travel
F105100 lbF / 0.5 kN18.0 in / 457 mm
F305300 lbF / 1.5 kN18.0 in / 457 mm
F505500 lbF /2.2 kN18.0 in / 457 mm
F505H500 lbF /2.2 kN18.0 in / 457 mm
* Load capacity is reduced at higher speeds, as follows:
– F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
– F505 / F505H: limited to 300 lbF [1.5 kN] above 24 in [610 mm]/min

Series F Videos

Specifications

Maximum travel18.0 in / 457 mm
Speed range0.02 – 45 in/min /0.5 – 1,100 mm/min
Load accuracy (% of full scale)Test frame: ±0.1%
Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%
Load sampling rate20,000 Hz
Data acquisition rate1,000 Hz
Speed accuracy±0.2% of setting, virtually no variation with load
Distance accuracy±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution0.0005 in / 0.01 mm
Limit switch repeatability±0.001 in / 0.03 mm
PowerUniversal input 100-240 VAC, 50/60 Hz, 300W
Fuse type1.2 A, 250V, 3AG, SLO BLO
Weight (test frame only)F105/F305: 60 lb / 27 kg
F505/F505H: 70 lb / 32 kg
Shipping weightF105/F305: 75 lb / 34 kg
F505/F505H: 85 lb / 39 kg
Temperature range40 – 95°F / 5 – 35°C
Humidity rangeup to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
ConformanceCE
Warranty3 years
DimensionsRefer to PDF Brochure for Dimensions

Related Products

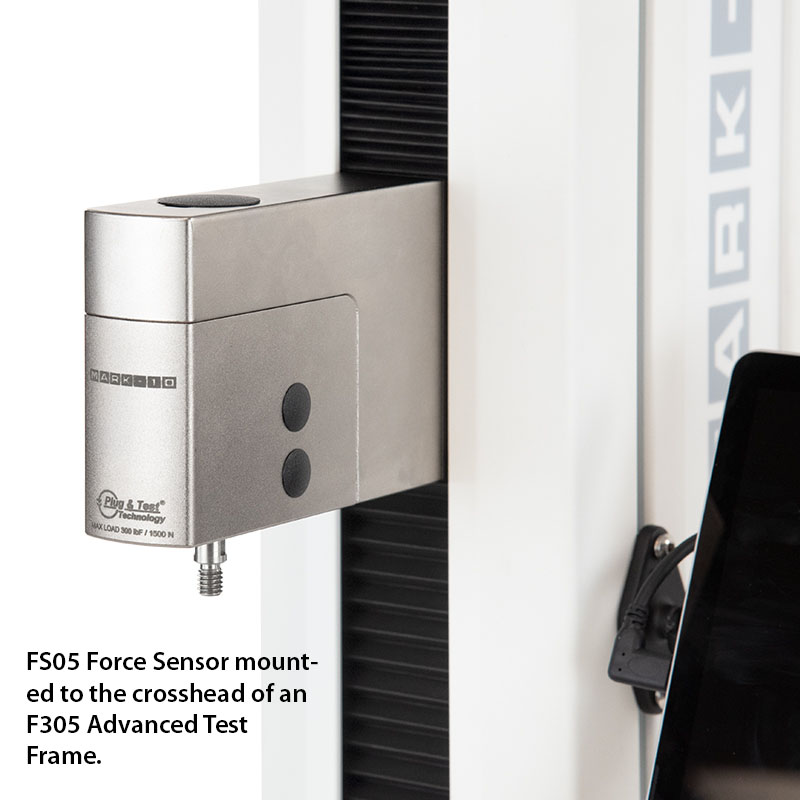

Series FS05 Sensor
Click image for more info
Tension and Compression Force Sensors
- Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
FS06 force sensor
Click image for more info
Force Sensors for F105, F305, F505, and F505H test frames
- Compatible with Model F105, F305, F505, and F505H test frames
S-Beam Force Sensor - R07
Click image for more info
R07
S-Beam Force Sensor
- Compatible with Models F755, F755S, F1505, and F1505S test frames
AC1095 column extension
Click image for more info
Double column extensions for Motorized Test Stands
Materials Testing Calculations
Click image for more info
Characterize and analyze the behavior of materials, components, and assemblies
Click image for more info
Safety Shields for Motorized Test Frames and Test Stands

Downloads

Buy Now

Item Description Price

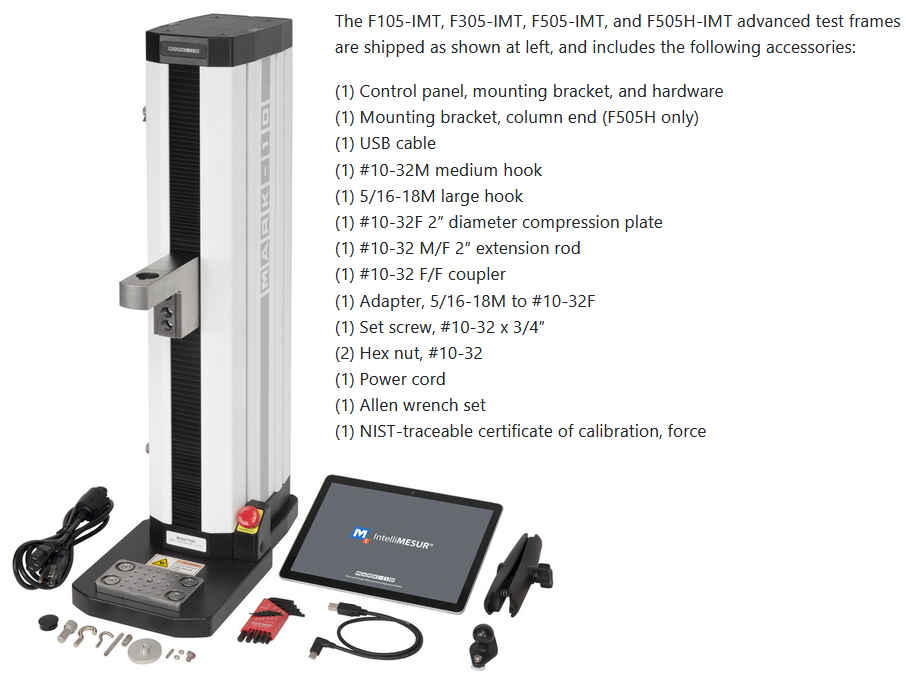

Series WITH Tablet PC
Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 100 lbF / 0.5 kN - FORCE SENSOR SOLD SEPARATELY
$10,972.50
Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 300 lbF / 1.5 kN - FORCE SENSOR SOLD SEPARATELY
$11,590.00
Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 500 lbF / 2.2 kN - FORCE SENSOR SOLD SEPARATELY
$12,967.50
Test frame with IntelliMESUR® pre-loaded tablet control panel, horizontal, 500 lbF / 2.2 kN - FORCE SENSOR SOLD SEPARATELY
$13,680.00

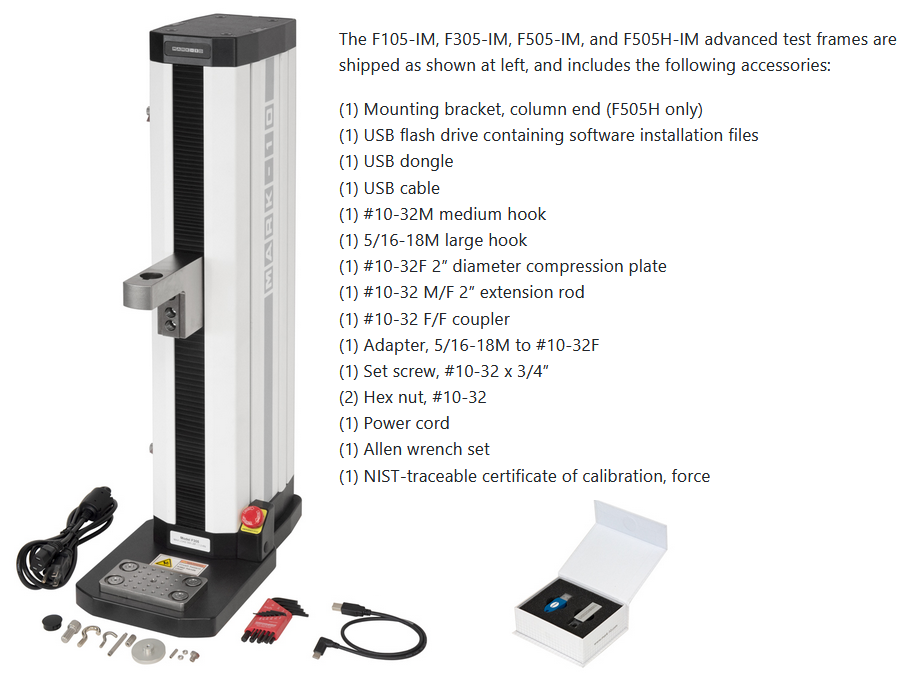

Series F WITHOUT Tablet PC
Test frame with IntelliMESUR® software, single license, vertical, 100 lbF / 0.5 kN - FORCE SENSOR SOLD SEPARATELY
$8,882.50
Test frame with IntelliMESUR® software, single license, vertical, 300 lbF / 1.5 kN - FORCE SENSOR SOLD SEPARATELY
$9,452.50
Test frame with IntelliMESUR® software, single license, vertical, 500 lbF / 2.2 kN - FORCE SENSOR SOLD SEPARATELY
$10,877.50
Test frame with IntelliMESUR® software, single license, horizontal, 500 lbF / 2.2 kN - FORCE SENSOR SOLD SEPARATELY
$11,590.00
Accessories
Test Stand Optional Functions
IMF001
COF testing module for IntelliMESUR®
$550.00
IMF002
Materials testing calculations module for IntelliMESUR
$3,000.00
Test Stand Accessories
NIST-traceable certificate of calibration, distance and speed
$395.00
Safety Shield For Test Frames, 51.9" height
$3,619.50
Safety Shield For Test Frames, 34.4" height
$2,669.50
AC1093
USB hub for Series F
$295.00
AC1085
Control panel tabletop mounting kit
$200.00
DC6000
Replacement tablet control panel, Series F, pre-installed w/IntelliMESUR®, w/test frame mounting hardware
$9,100.00
Column Extensions
Single column extension, 6 in / 150 mm, F105 / F305 / F505 / F505H
$440.00
Single column extension, 12 in / 300 mm, F105 / F305 / F505 / F505H
$610.00
Single column extension, 24 in / 600 mm, F105 / F305 / F505 / F505H
$770.00
Double column extension, 6″ / 150 mm, F105 / F305 / F505
$1,925.00
Double column extension, 12″ / 300 mm, F105 / F305 / F505
$2,200.00
Double column extension, 24″ / 600 mm, F105 / F305 / F505
$2,472.00
