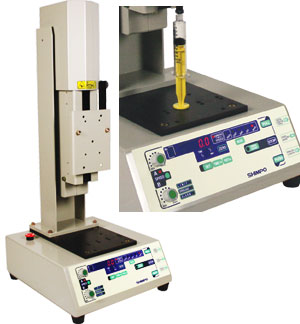

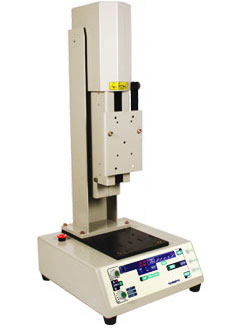

FGS-100PV Motorized Programmable Force Test Stand

fgs-100pv motorized test stand
Click images to enlarge.
The FGS-100PV advanced motorized, programmable force test stand combined with our line of top quality force gauges; provide a complete force measurement system capable of handling the most precise testing applications. Their all steel construction makes them remarkably rugged while performing with precision. Programming capabilities provide the versatility to tackle a multitude of applications. Two modes of operation, single or continuous cycling allow for a single precise test or repetitive, consistent results. User selectable high and low force set points through RS232 interface or directly through the force gauge allows the test stand to stop at specific force loads while displaying and outputting the displacement. The FGS-100PV motorized test stand offers a wide range of force capacities in vertical configurations and are available in both standard and ultra-slow speeds.

Features

  • Compatibility with nearly all manufacturers' force gauges enables flexibility in testing applications
  • 5 user programmable set points for speed, distance and stop time permit customized testing
  • Analog voltage output of displacement allows graphing and analysis of data on computer
  • Manually adjustable upper and lower limits restricts movement, allowing for precise testing
  • All gauge functions can be communicated through stand via RS232 interface allowing easy operation and data download
  • Compact, modular design reduces weight, footprint and cost of stand

Dimensions

Related Products

Click image for more info
Digital Force Gauge with USB Output
- 1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals
- Accuracy of ±0.2%
providing superb repeatability
Click image for more info
FGE
DISCONTINUED - Replaced by the FGE-XY Hand-held Digital Force Gauge
- Display "real-time" or "peak" force
- Accuracy ± 0.2%

Specifications

Capacity110 lb (50 kg)
Travel SpeedFGS-100PVH: 0.79 – 19.69 inch/min (20 – 500 mm/min)
FGS-100PVL: 0.39 – 3.93 inch/min (10 – 100 mm/min)
Stroke5.5" (140 mm)
Vertical ClearanceFGS-100PVH: 2.4" – 7.1" (61 – 181mm) 5 steps, 1.18"/step (30 mm/step)
FGS-100PVL: 2.4" – 7.1" (51 – 181 mm) 5 steps, 1.18"/step (30 mm/step)
DisplayFour digit LED, 0.41" high (10.5 mm), Reads in inches (0.01 resolution) or millimeters (0.1 resolution)
Operating ModeManual (MANU), Jogging (JOG), Single (SING), Continuous (CONT), Program (PROG)
Time Delay0 through 5 second delay between direction change
Power120 VAC, 60 Hz
Weight42 lb (19 kg)
Warranty2 Years

Downloads

Buy Now

Item Description Price
Vertical motorized test stand, 100lb/50Kg capacity, high speed model - 115V AC - Please contact us for pricing and availability.
$
Vertical motorized test stand, 100lb/50Kg capacity, low speed model - 115V AC - Please contact us for pricing and availability.
$
FGS-100PVH-230
FGS-100PVH Motorized Test Stand 100lb/50Kg capacity, high speed model - 230V AC - Please contact us for pricing and availability.
$
FGS-100PVL-230V
Vertical Motorized Test Stand, 100lb/50Kg Capacity, low-speed version - 230V AC - Please contact us for pricing and availability.
$
Accessories
UNI-PLATE
Gauge mounting plate for FGS-100 Series Stands
$135.00
FGV-FGS250P
Interface cable for FGS-100 & FGS-250 force test stands
$
FGS-ANALOG
Analog output cable for force test stands
$30.00
FG-250PV-RS232
RS-232 Communication cable from FGS stand to computer
$
FG-HORIZ-ADAP
Grip adapter for horizontal test stands
$260.00
