TSA750 Lever Operated Force Gauge Test Stand

Made in USA

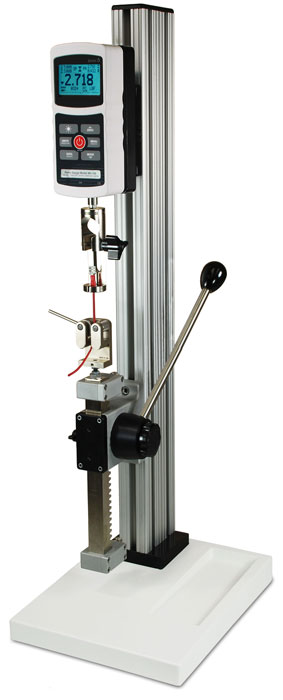

The TSA750 is shown in a typical wire terminal pull testing application with Series 5 digital force gauge, G1001 wire terminal grip, and G1002 dual roller grip.
Click images to enlarge.
TSA750 - Vertical
TSA750H - Horizontal

The lever operated Force Measurement Test Stand Model TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

Compatible with the following gauges, Series 5, Series 4, Series 3.

*Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately

Optional Horizontal Configuration shown below

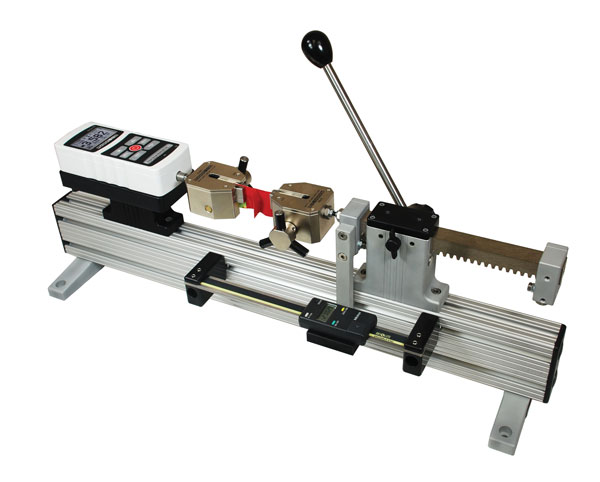

The TSA750H is shown in a typical peel testing application with Series 5 digital force gauges and pair of G1061 wedge grips.

Features

  • Precision ground rack and pinion mechanism
  • Threaded holes for bench mounting
  • Loading lever can be positioned in 30° increments for ease of operation

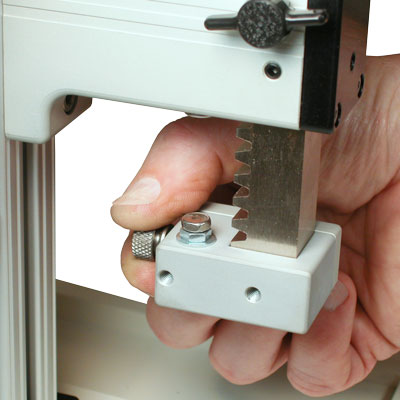

  • Adjustable travel stops
  • Adjustable wear plates for smooth, precise motion

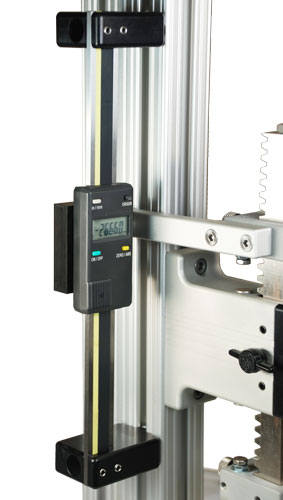

  • Optional digital travel display
  • Friction brake

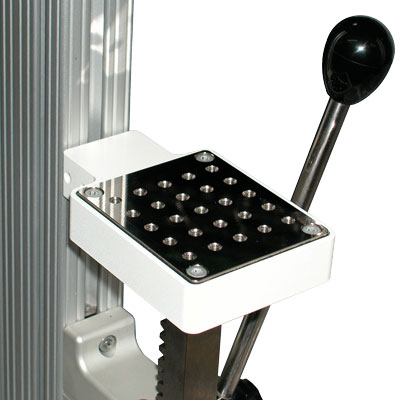

  • Optional Mounting Table Contains a matrix tapped holes for grip and fixture mounting

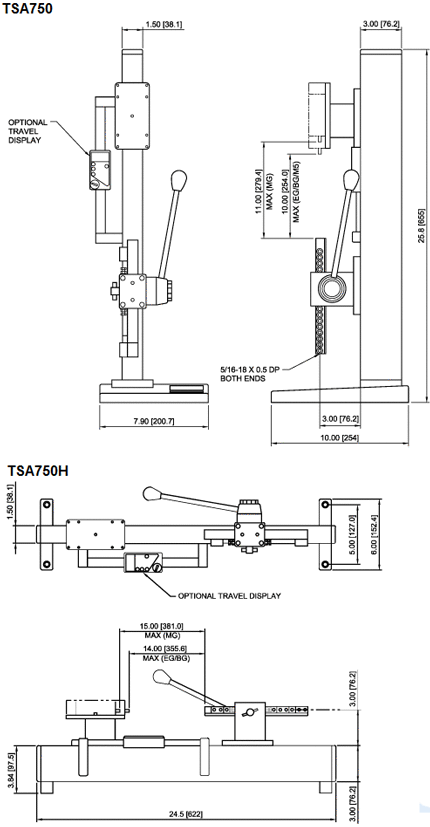

Dimensions

Related Products

M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs
M4 DIgital Force Gauge
Click image for more info
Digital Force Gauge with Output
- USB, RS-232, Mitutoyo, and analog outputs
- 3,000 Hz peak sampling rate
M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- High-speed 2,000 Hz sampling rate
- Includes NIST Traceable Calibration Cert

In the Box

TSA750 Test Stand The TSA750 and TSA750H test stands are shipped as shown at left, and include the following accessories:

(1) G1028 small hook
(1) G1038 medium hook
(1) G1035 large hook
(1) G1042 extra large hook
(1) G1009 compression plate, 2” dia.
(2) #10-32 stud with jam nuts
(4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
(4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
(1) Allen wrench set
(1) Resource CD
(1) Base (TSA750)
(2) Mounting leg with hardware (TSA750H)
(1) Additional column cap with hardware (TSA750H)

Specifications

Maximum force750 lb / 375 Kg
Maximum travel, with stops3.75" [95 mm]
Maximum travel, without stops6" [152 mm]
Travel rate3" [76.2 mm]/lever revolution
WeightTSA750: 16 lb
TSA750H: 13 lb
Warranty3 Years

Downloads

Buy Now

Item Description Price
Vertical Lever Test stand - 750 lb / 375 Kg
$975.00
Horizontal Lever Test stand - 750 lb / 375 Kg
$975.00
Accessories
TSA001
Digital travel display for TSA/TSAH
$650.00
TSA002
Horizontal/wall mounting kit for TSA/TSAH
$150.00
TSA003
Mounting table kit for TSA750/TSA750H
$185.00
AC1004
Mounting kit, Idicator to TS-Series test stands
$85.00
TSA-EXT-6
6" Column Extension for TSA750
$150.00
