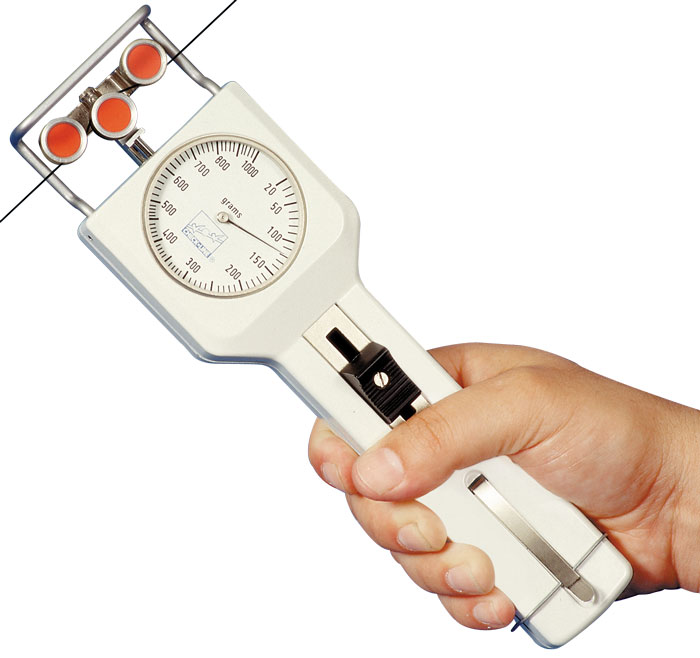

DXN High Precision Tension Meter

Made in Germany
DXN High Precision Tension Meter

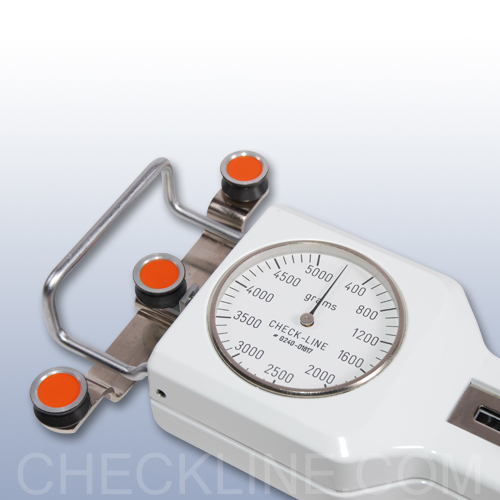

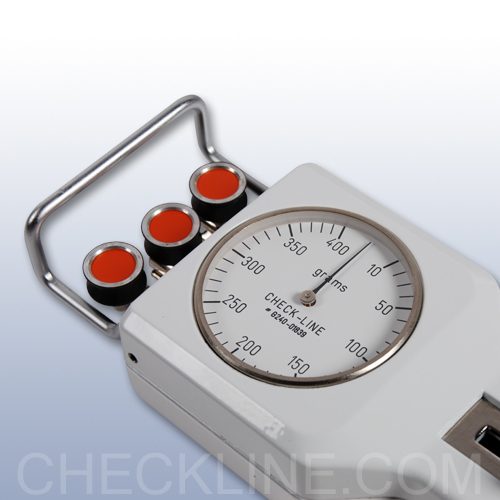

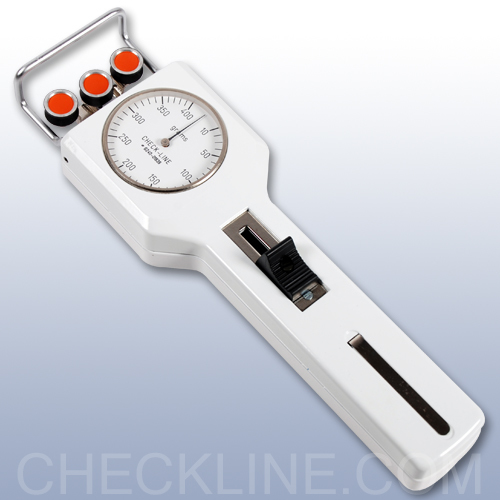

Click images to enlarge.
11 ranges, 20-120 g to 5-50 Kg

A precision movement with high over-load capacity provides highest accuracy and long lasting calibration

Features

  • Large, linear scale for higher reading accuracy over the entire range.
  • Material thickness compensation on all high range models.
  • DXN's are individually calibrated for highest accuracy.
  • Choice of guide rollers for filament speeds up o 5000 m/min.
  • Rugged die-cast aluminum housing.
  • NIST-Traceable calibration optionally available.

Tension Ranges

ModelRangeMeasuring Head
Width mm
Calibration MaterialMaterial thickness
compensator
DXN-12020-120 g65PA: 0.12 mmNo
DXN-20020-200 g65PA: 0.12 mmNo
DXN-40020-400 g65PA: 0.20 mmNo
DXN-100050-1000 g65PA: 0.30 mmYes
DXN-1000EX100-1000 g116PA: 0.30 mmYes
DXN-2000200-2000 g116PA: 0.50 mmYes
DXN-5000400-5000 g116PA: 0.80 mmYes
DXN-10K*2-10 Kg116PA: 1.00 mmYes
DXNL-20K**5-20 Kg216PA: 1.50 mmYes
DXNL-30K**5-30 Kg265PA: 1.50 mmNo
DXNL-50K**5-50 Kg265Steel Rope 1.50mmNo
*Lever optional on 10K model
**20K, 30K and 50K models include lever

Options

Air Damping (A)
An adjustable, precision air dashpot provides steady tension readings for those applications where high tension fluctuations exist

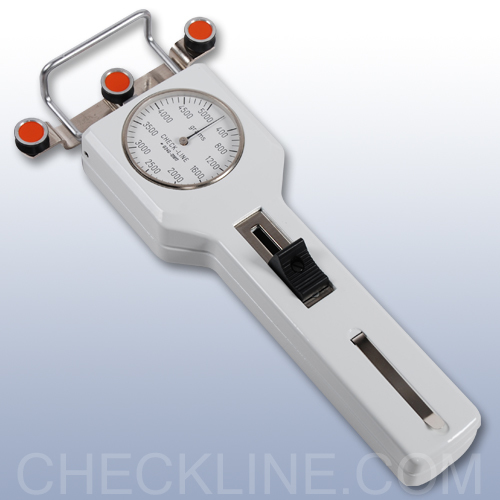

Lever (L) A heavy-duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 K higher.

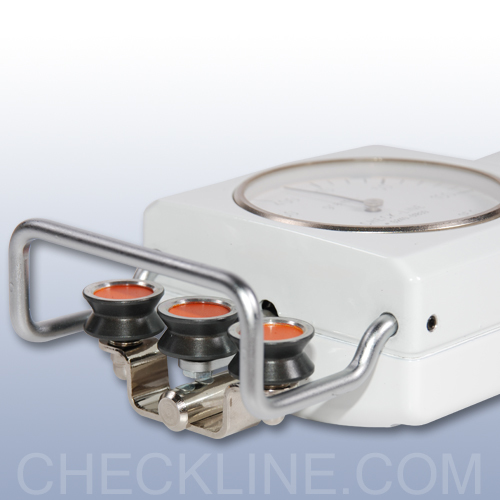

High Speed Rollers
(K) For speeds up to 3500 m/min (U) For speeds up to 5000 m/min.

Related Products

Click image for more info
Available Rollers for Hand-Held Tension Meters

Specifications

Accuracy± 1% of Full Scale or ± 1 graduation mark on scale
Diameter54 mm (2.13")
Maximum Speed(standard) 2000 m/min
(optional) 3500 m/min (K)
(optional) 5000 m/min (U)
Outer roller distance, c:cDXN-30 to DXN-1000 EX - 38 mm
DXN-2000 to DXN-10K - 100 mm
DXN-20K - 200 mm
DXN-30K to DXN-50K - 250 mm
Roller MaterialHard-coated aluminum (standard)
Hardened steel (ST)
Ceramic (CE)
Phenolic (PH)
Housing materialDie-cast aluminum
Dimensions260 x 72 x 44 mm
(10.2" x 2.8" x 1.7")
Weight700 g (1.5 lbs.), approx.
