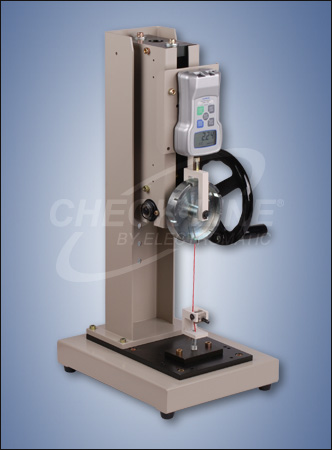

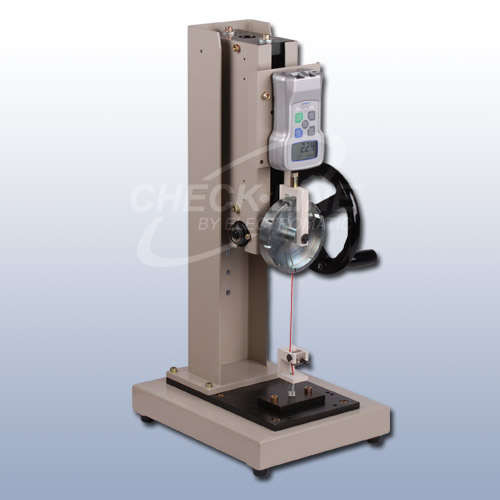

WTT-FGS Wire Terminal Tester

Click images to enlarge.

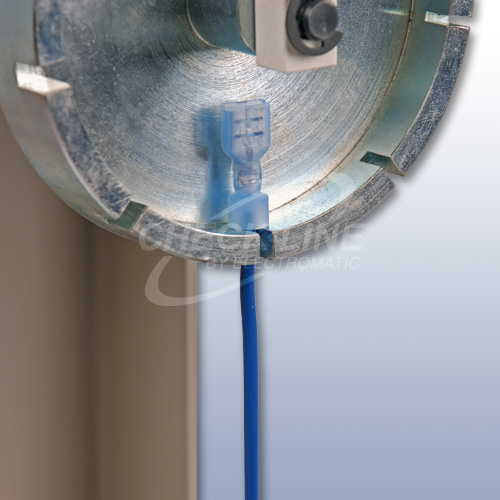

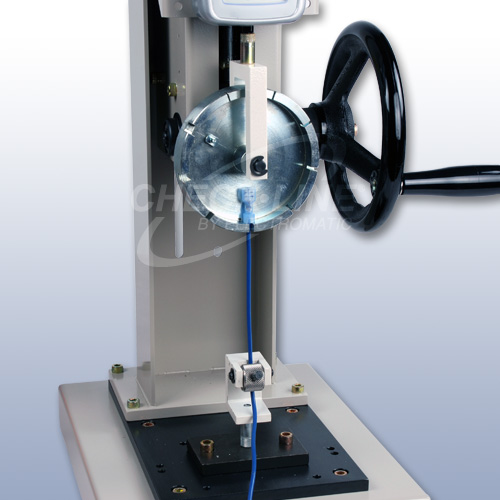

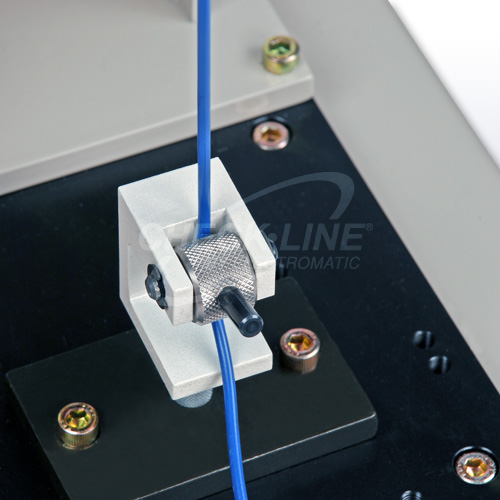

The WTT-FGS wire terminal tester is designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end. It is ideal for obtaining accurate, consistent results up to 110lbs.

The WTT-FGS system is an easy to solution suitable for a vast majority of terminal testing applications. The system consists of the following:

Test Stand: FGS-100H
Force Gauge: FGV-100XY
Wire terminal tester: FG-M6WTER100

Max wire diameter 0.160" / 4mm (limited by bottom cam grip).

Features

  • Versatile bottom mounting plate accepts standard and custom-made attachments
  • Precision gear movements
  • Sturdy, all steel construction
  • Constant Linear Motion

Related Products

Click image for more info
Manual Hand Wheel Operated Test Stand
Click image for more info
Digital Force Gauge with USB Output
- 1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals
- Accuracy of ±0.2%
providing superb repeatability
Click image for more info
Wire Terminal Test Fixture

Specifications

Capacity110 lbs (50 kg)
Stroke5.9" (150 mm)
Travel Rate3 mm/wheel turn (approximately)
Weightapprox. 33 lb (15 kg)
Warranty1 year

Buy Now

Item Description Price
System Includes
FGV-100XY Force Gauge
FGS-100H Test Stand
FG-M6WTER100 Terminal Grip
$2,135.00
