FG-M6WTER100 Wire Terminal Test Fixture

Click images to enlarge.
Capacity: 100 lb / 50 Kg / 500 N

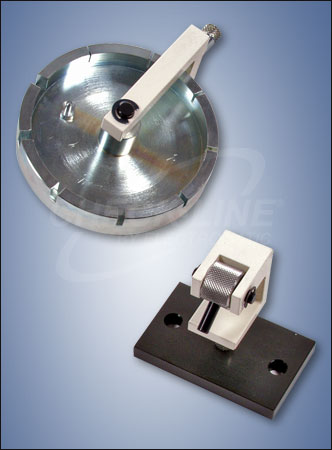

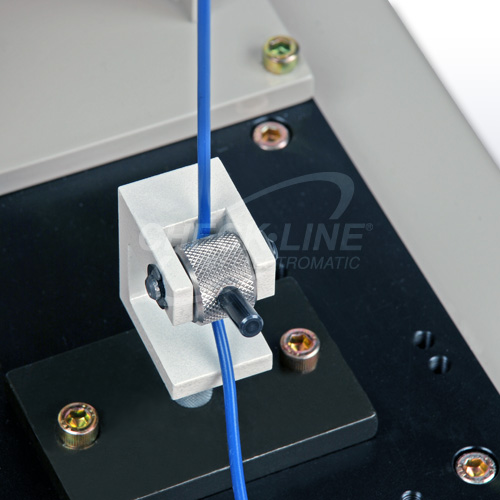

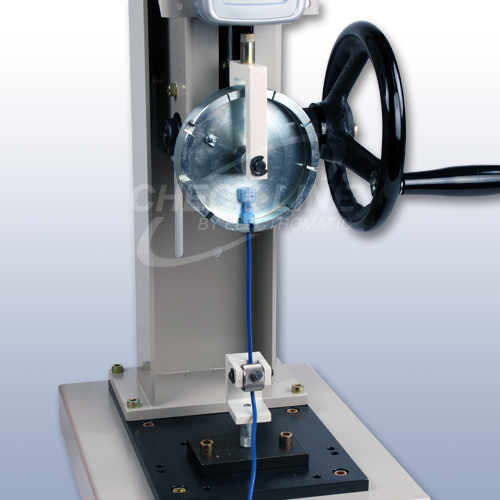

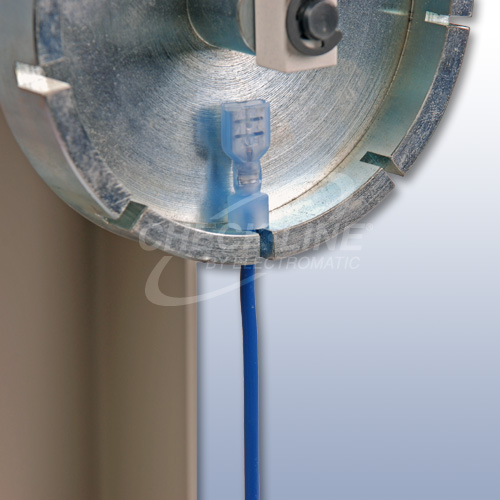

Designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end.

Max wire diameter 0.160" / 4mm (limited by bottom cam grip).

Downloads

Buy Now

Item Description Price
Wire Terminal Test Fixture, M6 Thread, 100 lb (50 kg) Capacity
$
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
