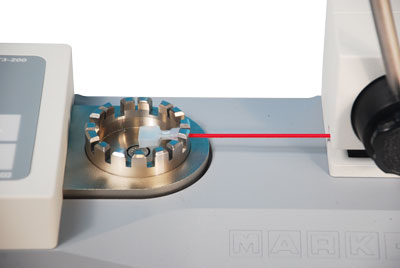

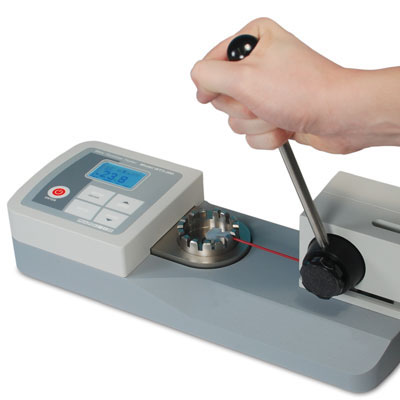

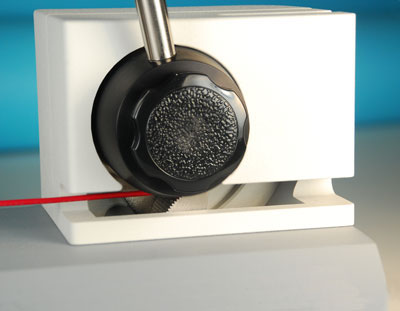

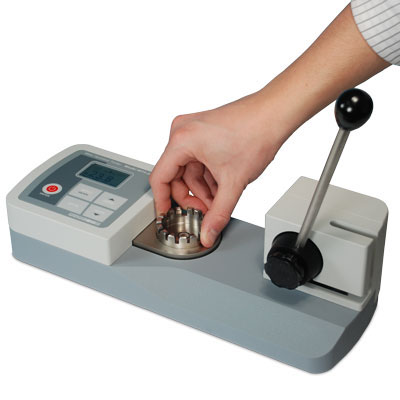

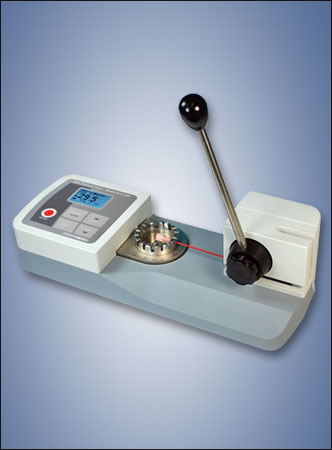

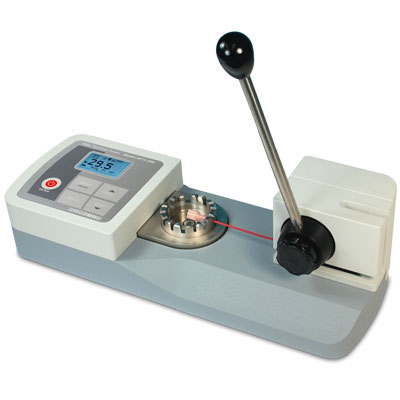

The WT3-200 wire terminal pull tester is designed to measure the pull-off force of wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1000 N) of pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).

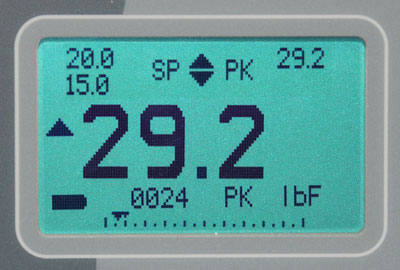

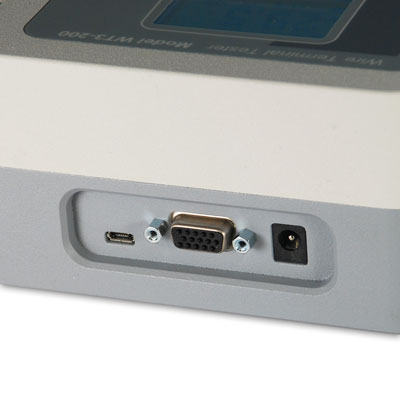

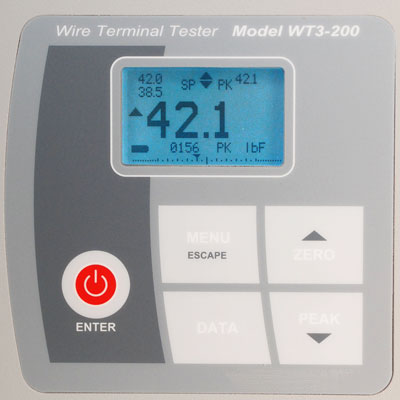

A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. An analog load bar is shown on the display for graphical representation of applied force.

On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.

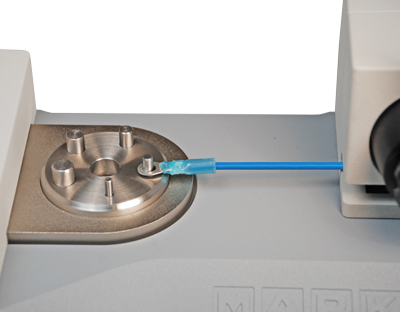

An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe. Part Number WT3002

Features

  • Measures real-time and peak force values
  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • 1,000-point data memory with statistics and outputs
  • Programmable set point indicators and outputs for pass/ fail determination
  • Configurable audio alarms and key tones
  • Ergonomic lever operation produces 200 lbF [1000 N]
  • Automatic output / data storage / zeroing upon sample break helps automate testing processes
  • Password protection prevents unauthorized changes
  • High-speed 7,000 Hz sampling rate accurately captures peak force values
  • Mounting holes for bench mounting

Force Ranges

ModelCapacityResolution
WT3-200200 lbF
3200 ozF
100 kgF
1000 N
1 kN
0.1 lbF
2 ozF
0.05 kgF
0.5 N
0.005 kN

Related Products

Motorized Wire Terminal Tester
Click image for more info
Motorized Wire Pull Tester
Motorized Wire Terminal Pull Tester
Click image for more info
Motorized Wire Terminal Tester
- LCD display with UP, DOWN, STOP and emergency stop buttons and soft keys
- Integrated travel limit switches
- 3 Year Warranty
- CE Certified
Click image for more info
Calibration Kit for WT3-200 Wire Pull Tester
WT3-201 Wire Pull Tester
Click image for more info
Wire Pull Tester
- Includes NIST Traceable Calibration Certificate (without data)
- Automatic output / data storage / zeroing upon sample break helps automate testing processes

Dimensions


Width of slots in rotating grip [in(mm)]: 0.01 (0.3), 0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3)

Complete Kit

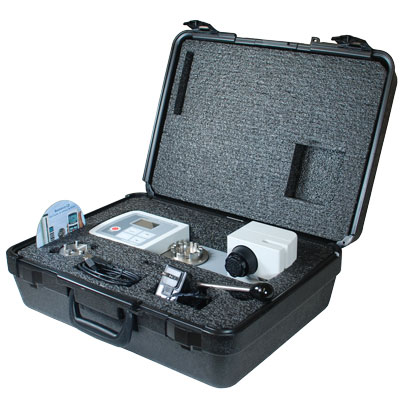

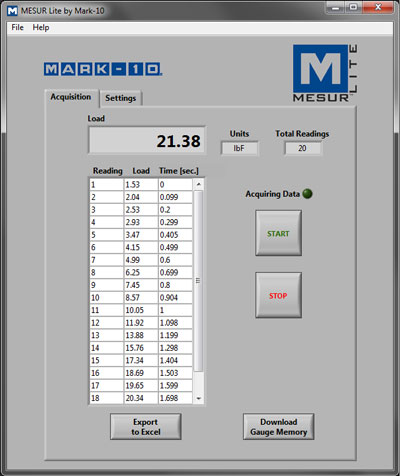

Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTMLite software, MESURTMgauge DEMO software, and user's guide), NIST-traceable certificate of calibration with data.

Carrying Case is shown is sold separately
Part number WT3001 - $250.00

Specifications

Accuracy±0.2% of full scale
Wire diameter rangeAWG30 - AWG 3 [0.03 - 0.25 in (0.8 - 6.3 mm)]
Minimum sample length7.50 in [191.0 mm], excluding termination
Maximum sample elongation1.15 in [29.2 mm]
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Sampling rate7,000 Hz
OutputsUSB / RS-232: Configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analog: ±1V DC, ±0.25% of full scale at capacity.
Configurable SettingsDigital filters, outputs, automatic shutoff, default settings, passwords, key tones, audio alarms, backlight, calibration
Safe overload150% of full scale (display shows "OVER" at 110% and above)
Weight16.0 lb [7.3 kg]
Warranty3 years (see individual statement for further details)

Downloads

Buy Now

Item Description Price
Manual Wire Terminal Pull Tester, REPLACED BY WT3-201
$
Accessories
WT3001
Carrying case for WT3-200
$250.00
Ring terminal fixture insert for WT3-200/1/M/G1076
$195.00
WT3003
Machinable blank terminal fixture insert
$175.00
NISTCAL-10PT
Upgrade Calibration Cert with 10 Data Points
$75.00

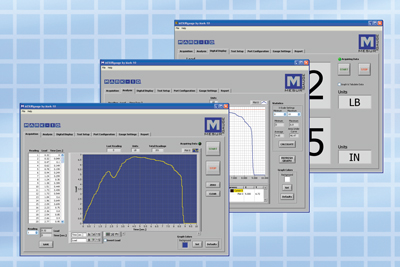

MESUR gauge Load & Travel Analysis Software
