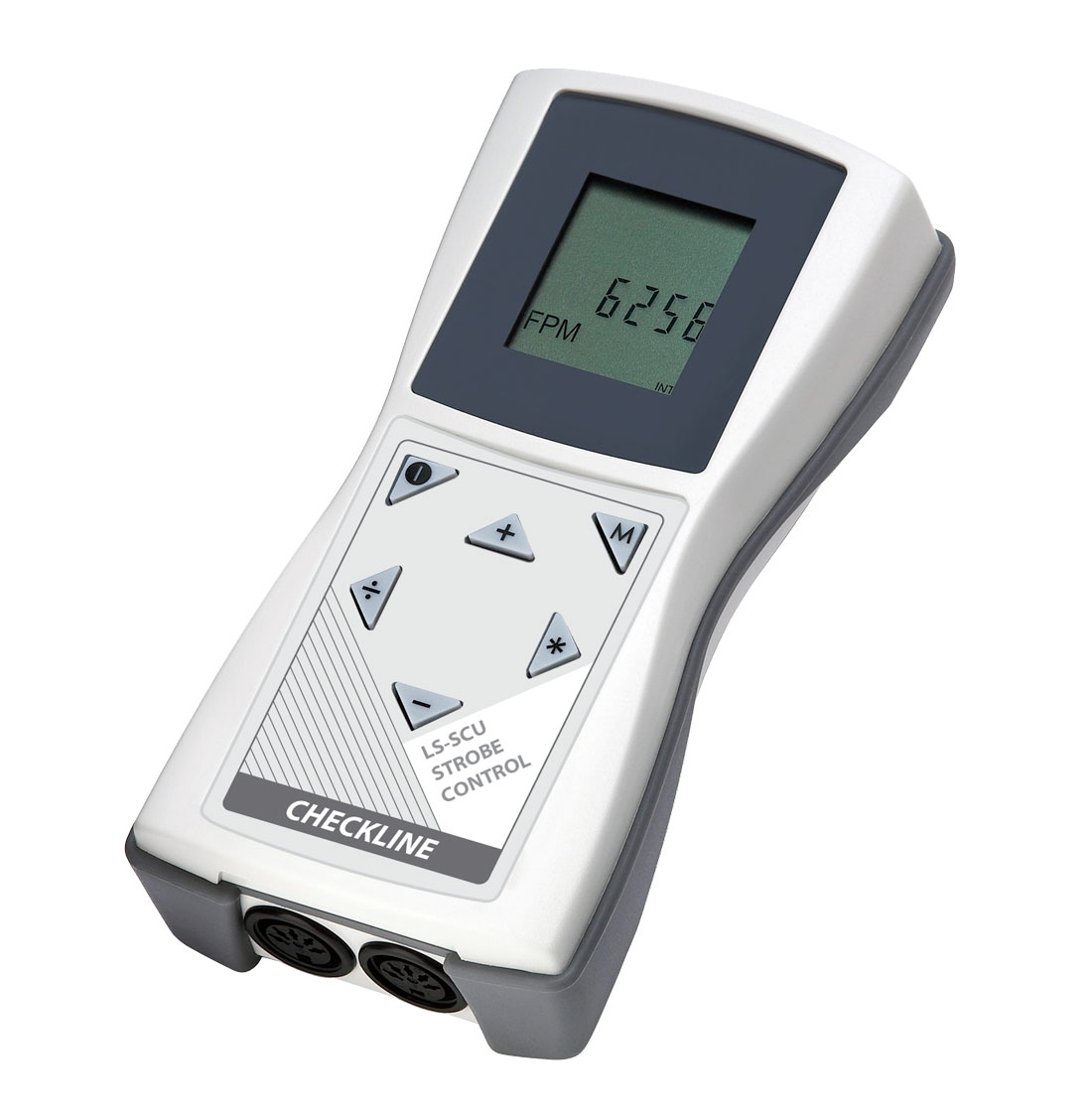

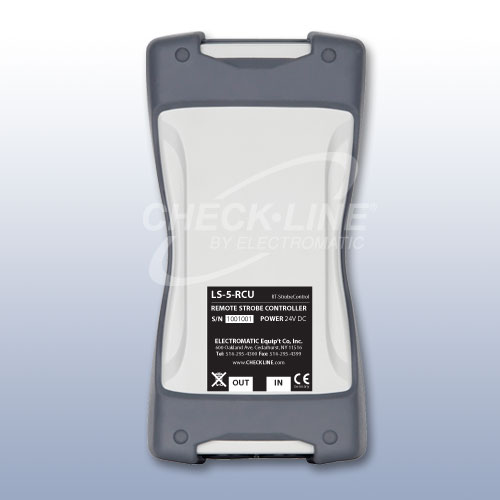

LS-SCU Remote Control Unit

Made in Germany
Click images to enlarge.

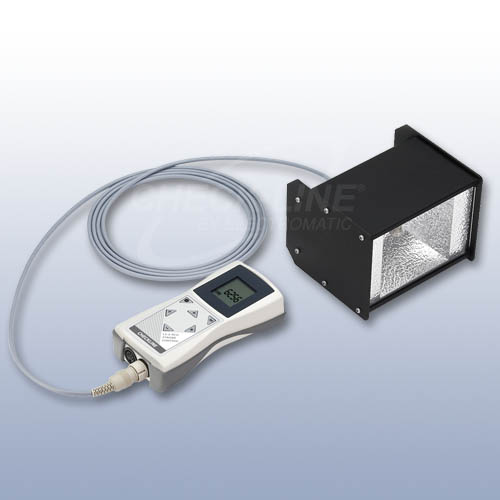

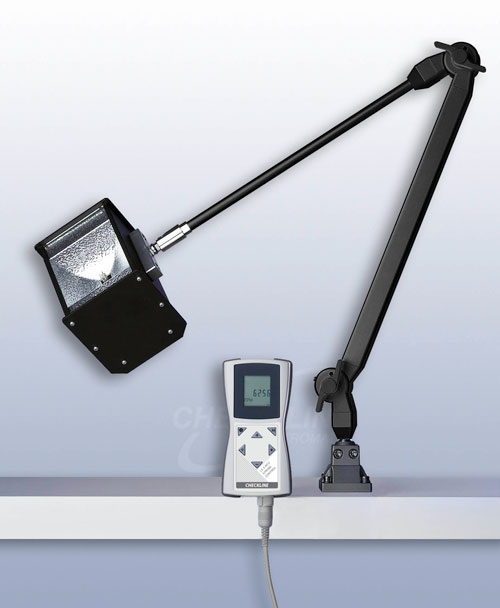

Designed to provide a programmable frequency output for use to Control Xenon and LED Stroboscopes. Programmable adjustments include flash rate (FPM or Hz), Pulse Duration (usec), Pulse Degree, Delay (msec), Phase Shift (Degree), Divider and more.

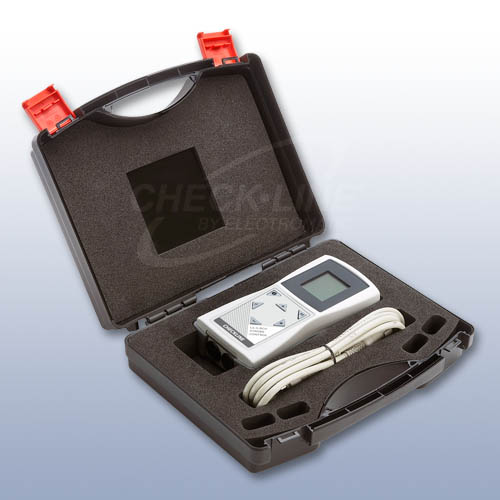

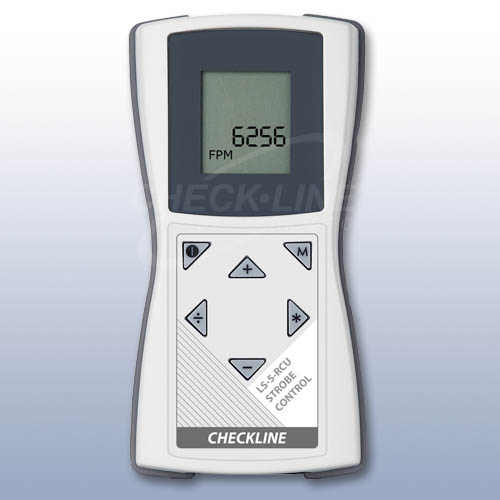

All controls are accessed via 6 tactile buttons on the front of the controller with all values shown on a alpha/numeric LCD Display. Unit is 24V DC powered and is supplied with 5 ft. connection cable.

Universal Power Supply with 4 plug adapters (for use with 100–265V AC) available as an option.

Related Products

Click image for more info
Flash Control Module
Inspection Stroboscope
Click image for more info
Inspection Stroboscope - Inspection Strobe Light
- Unmatched brightness, sharpness and uniformity from any strobe in its class
Click image for more info
Web Inspection Stroboscope
- Unmatched image brightness (2500 Lux) along with best sharpness and light uniformity from any strobe in its class
ls-5-led stroboscope
Click image for more info
LED Inspection Strobe Light
80 LEDs in 10 x 8 array
- Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.
LS-9-LED
Click image for more info
LED Inspection Stroboscope
120 LEDs in 15 x 8 array
- Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")
- Uses 120 of the newest generation LEDs in a 15 x 8 array providing 7500 Lux, peak
ls-18-led stroboscope
Click image for more info
LED Inspection Stroboscope
200 LEDs in 25 x 8 array
- Light intensity of 9000 Lux peak from 200 LEDs
LED Fixed-Mount Inspection Stroboscope - 480 LEDs

Downloads

Specifications

Frequency30.0 - 999.9 FPM ± 0.1
1,000 - 600,000 FPM ±1
0.5 - 999.9 Hz ± 0.1
1,000 - 10,000 HZ ± 1
Pulse Widthabsolute (± 1) and
relative (± 1°) adjustable
Phase Shift0 - 359° ±1°
Delay0.0 - 2,000.0 ms ± 0.1 ms
Divider1 - 255 ± 1
Power Supply10 - 32 V DC, with reverse polarity protection
Current intake<50 mA
Trigger Input
Low Level< 1 V
Level3 - 32 V, NPN + PNP
Minimum pulse Length50 µs
Reverse voltage protectionYes
Trigger Output
PrincipleShort circuit and overvoltage proof transistor output to the optocoupler control, non-isolated
Pulse Lengthadjustable
Warranty1 Year
Housing MaterialABS / EPDM

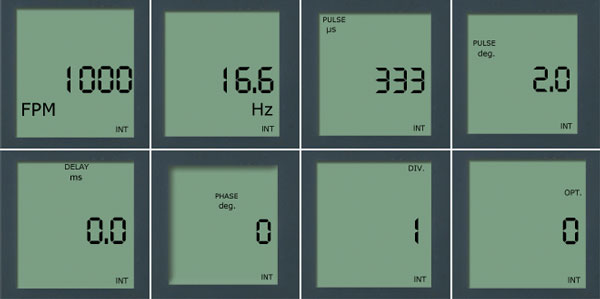

Default SettingsFPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Dimensions162x82x40 mm / 6.4x3.3x1.6 inch
Weight230 g
Ambient Temperature0 - 50 °C (32 - 122 °F)

Buy Now

Item Description Price
Remote Control Unit and connection cable
$355.00
Accessories
LS-DIN

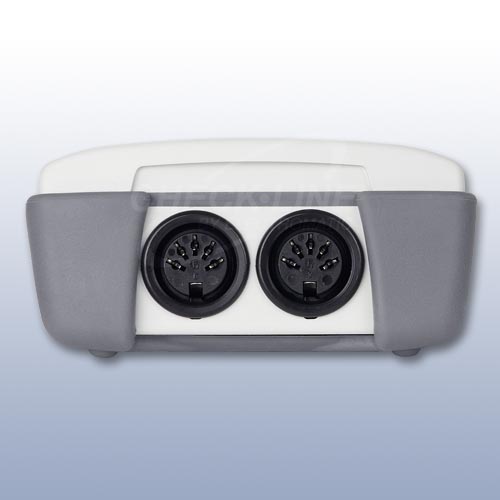

5-pin DIN Connector for use with all LS-Strobes and LS-SCU Strobe Controller
$10.00
LS-5-CABLE

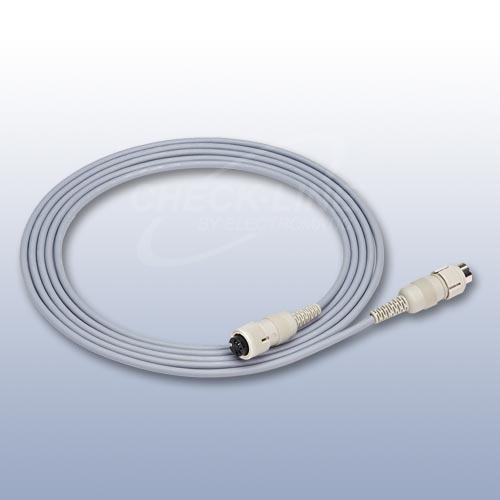

Connection cable with LS-5-DIN at both ends, 5 ft length
$50.00
LS-CABLE-EXT
Extension Cable for LS Strobes, 2 meter with 5-pin MALE/5-pin FEMALE DIN Connectors
$75.00
LS-CABLE-EXT-5M
Extension Cable for LS Strobes, 5 meter with 5-pin MALE/5-pin FEMALE DIN Connectors
$95.00
