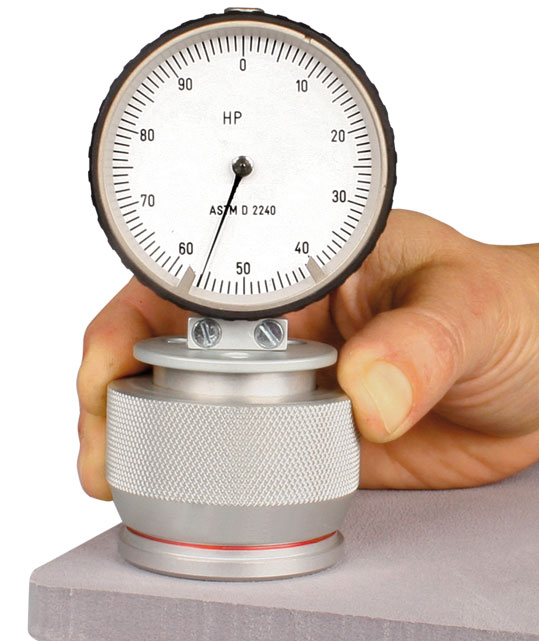

HP Series Shore Durometer

Made in Germany
HP durometer for testing rubber and plastic hardness
Click images to enlarge.
Available Scales: A, B, C, D, DO, O

CHECK-LINE HP Series durometers are designed to measure the hardness or firmness of a wide variety of parts and test samples. This unit is designed in accordance with ASTM and DIN quality standards which specify the bottom contact area (working diameter), sensing pin configuration and internal spring forces. Additionally, the displacement of the sensing pin, relative to the dial indicator, is specified by these standards.

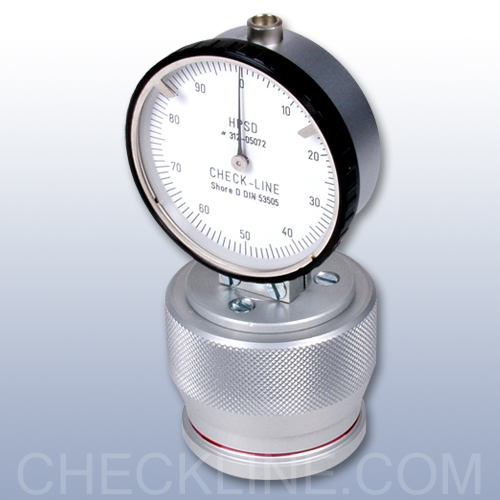

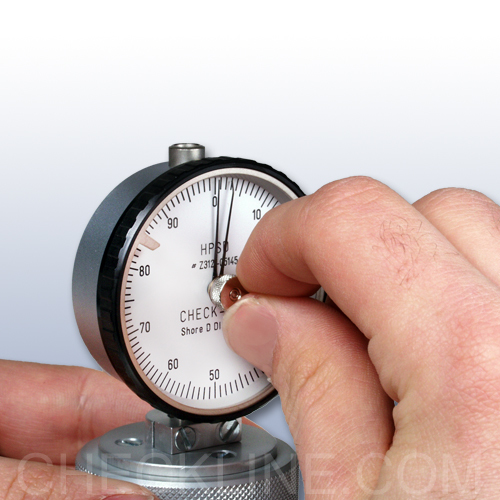

The HP Series provides an analog dial indicator calibrated for a range of 0-100 Shore units, an optional memory pointer is available to record the highest recorded reading.

All CHECK-LINE Durometers feature a unique spring-operated test pressure shell, which helps assure that similar test pressures are used for each measurement. This system significantly enhances the measurement repeatability, especially between different operators.

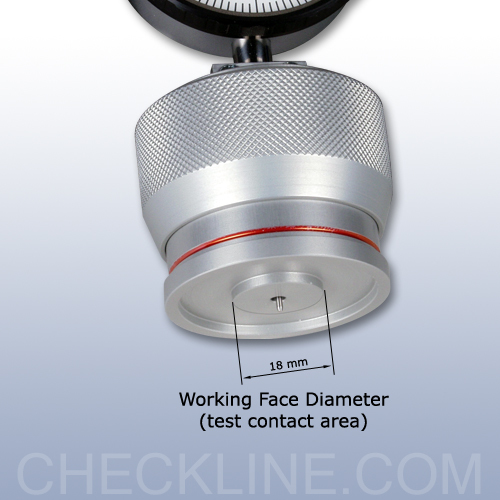

Oversized flat bottom surface makes position of working face (area of contact as specified in ASTM/DIN Standards) convenient and consistent which limits variability between operators.

Conforms to ASTM D-2240

Easy To Operate

durometer animation

Related Products

Click image for more info
HP Durometer Test Stand
- Spring loaded lever for fast & precise travel
- 11.5" High Shaft allows you measure a wide range of different sized objects
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation

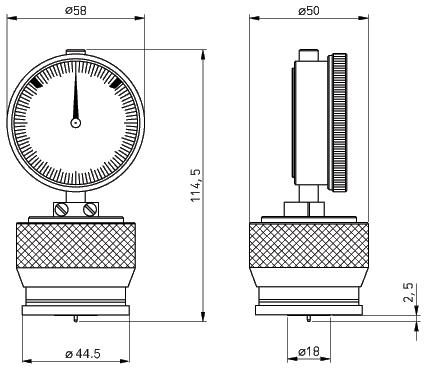

Dimensions

HP Durometer dimensions

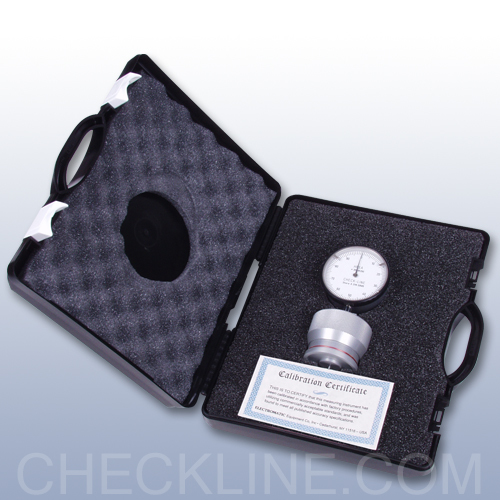

Complete Kit

The HP series is supplied as a complete kit including gauge and instruction manual in a foam-fitted carrying case.
HP Durometer Kit

Specifications

Worldwide StandardsAccording to DIN 53505 ,ISO 7619, ISO 868 and ASTM D 2240
Tolerance± 0.5 at "100" and -0 +1 at "0"
Display range0 - 100 Scale
Scale diameter56 mm
Weight, net (gross):approx. 300 g (500 g)
Dimensions50 x 50 x 110 mm (L x W x H)

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Shore A Durometer for Soft rubber, plastics and elastomers.
$395.00
Shore B Durometer for Harder elastomers and plastics. Use above 93 A scale.
$395.00
Shore C Durometer for Medium hard elastomers and plastics.
$395.00
Shore D Durometer for Hard rubber and plastics
$395.00
Shore DO Durometer for Dense granular material and textile windings.
$395.00
Shore O Durometer for soft elastomers below 20 A scale
$395.00
Accessories
Memory
Add Memory Pointer to Durometer (Not OO or OOO)
$100.00
PTS Durometer Test Stand - for HPSA/HPSD
$495.00
NISTCAL
NIST Traceable Calibration Certificate
$100.00
Type A Test Block Kit with NIST traceable certificate
$275.00
Type D Test Block Kit with NIST traceable certificate
$200.00
