DAW Digital Adjustable Torque Wrench

DAW Digital Adjustable Torque Wrench
Click images to enlarge.
The DAW Series of Digital Adjustable Torque Wrenches are designed for simple and precise measurements in industrial, automotive, aerospace, and many other applications. The DAW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb,r N-m or kg-cm (user-selectable).

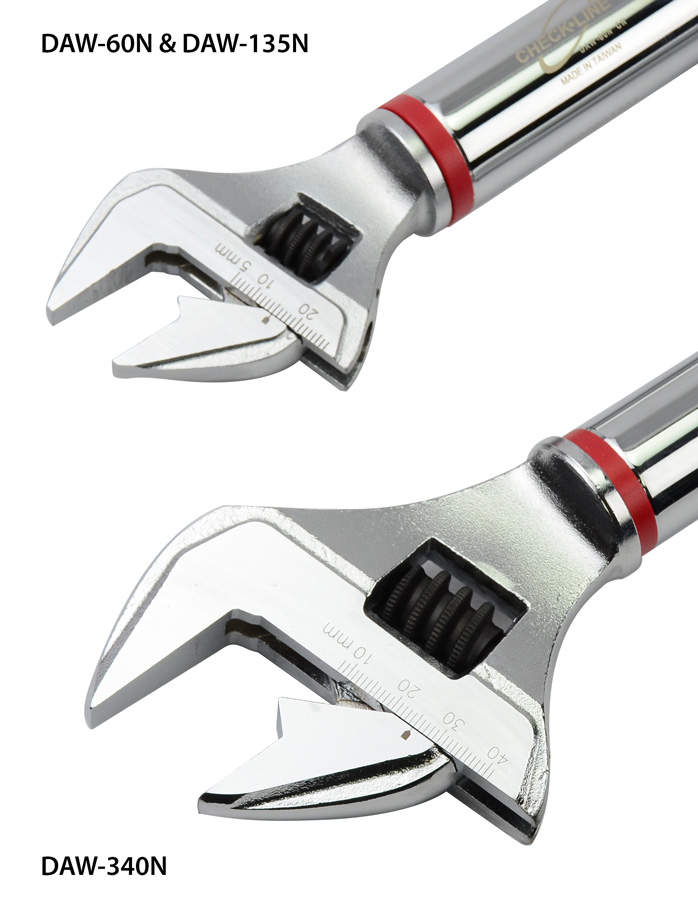

The DAW features rugged adjustable steel jaws and the ability to program 9 target setpoints. 12 bright LEDs and an audible alarm alert the operator when the applied torque approaches and reaches the desired target.

DAW-60N Digital Adjustable Torque Wrench

Features

  • 9 Programmable Target Torque Set-points
  • Displays Torque in-lbs, ft-lbs, N-m, Kg-cm (User selectable)
  • CW operation (CCW with display facing away from operator)
  • Peak or Real-Time (track) mode (User Selectable)
  • Buzzer and LED indicator for the pre-settable target torque
  • 50 data point memory
  • Auto shutdown after 5 minutes of non use
  • Includes Calibration Certificate (Click for sample)
  • CE Certified

Ranges

ModelRange / ResolutionDrive SizeLength
DAW-60N3 - 60 Nm / 0.01 Nm
26.5 - 530 lb-in / 0.1 lb-in
2.2 - 44 lb-ft / 0.01 lb-ft
5-27 mm
0.2 - 1.06 in
428 mm
16.85 in
DAW-135N6.8 - 135 Nm / 0.1 Nm
60 - 1200 lb-in / 1 lb-in
5 - 100 lb-ft / 0.1 lb-ft
5-27 mm
0.2 - 1.06 in
428 mm
16.85 in
DAW-340N17 - 340 Nm / 0.1 Nm
12.5 - 250 lb-ft / 0.1 lb-ft
10-41 mm
0.39 - 1.61 in
650 mm
25.6 in

Other ranges available, inquire

Related Products

GEK Digital Torque Wrench
Click image for more info
GEK
Adjustable and Ratchet Digital Torque Wrenches
Digital Torque Wrench DTW
Click image for more info
DTW
Digital Torque Wrench
- CW and CCW operation
- Buzzer and LED indicator for the pre-settable target torque
ETW digital torque wrench
Click image for more info
ETW
Digital Torque Wrench with Memory and Data Output
- Bi-Directional Accuracy better than 1% from 10%-100% of Capacity
- USB output & data transfer / analysis software
DTL-100i digital torque wrench
Click image for more info
DTL
1/4" Mini Digital Torque Wrench
- Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
- CW and CCW operation

Specifications

AccuracyCW 3% of indicated From 20 - 100% of capacity
Memory50 Readings for recall on display, no output, 9 Presets
Unit Selectionft-lb, in-lb, N-m, kg-cm
Battery2x AA
Battery Life110 Continuous Hours
1 Year Standby
Operating Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
HumidityUp to 90% non-condensing
Warranty1 Year

Complete Kit

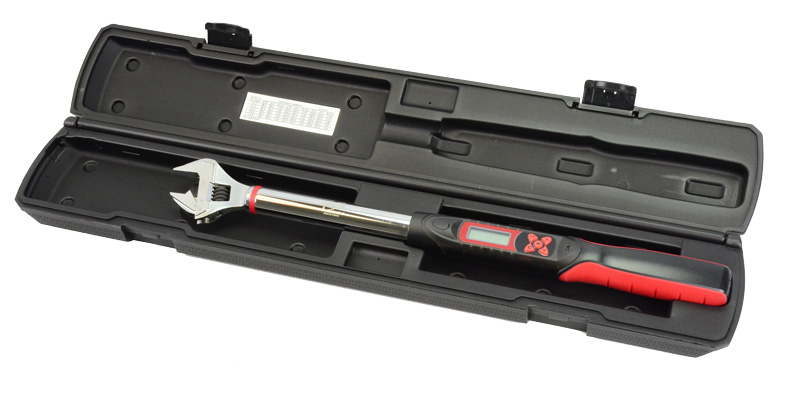

The DAW is supplied as a complete kit including the torque wrench, instruction manual, factory calibration certificate, and 2x AA batteries in a hard plastic carrying case.

Buy Now

Item Description Price
Digital Adjustable Torque Wrench, 60 Nm / 530 lb-in / 44 lb-ft, 5-27mm drive
$295.00
Digital Adjustable Torque Wrench, 135 Nm / 1200 lb-in / 100 lb-ft, 5-27mm drive
$295.00
Digital Adjustable Torque Wrench, 340 Nm / 250 lb-ft, 10-41mm drive
$295.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
