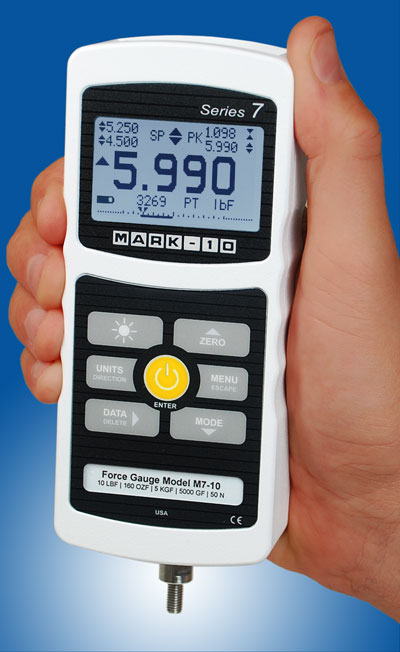

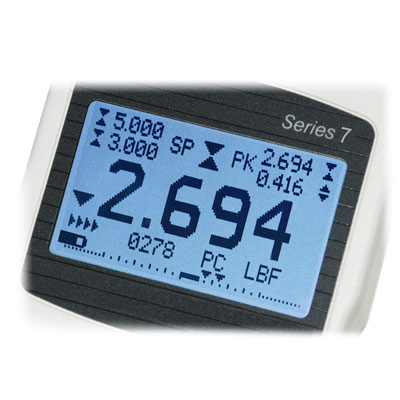

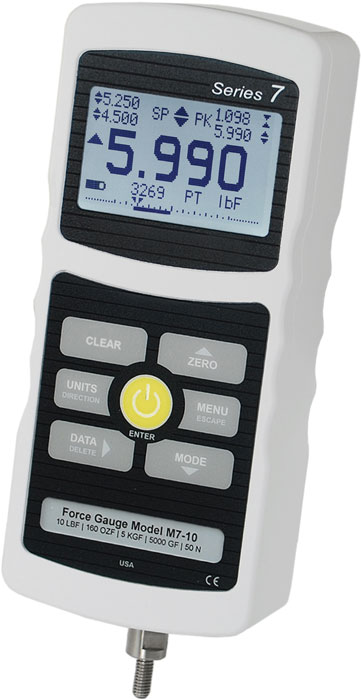

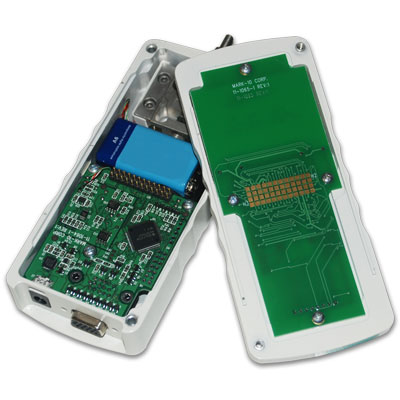

Series-7 Professional Digital Force Gauge

Made in USA
Click images to enlarge.
Measures Tension &
Compression Force
(Push / Pull)
11 Ranges up to 500 lbs

Series 7 professional digital force gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.

Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection.

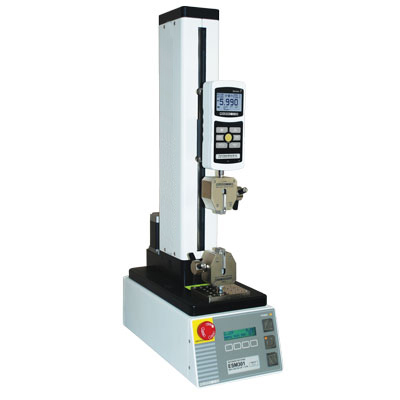

Series 7 force gauges are directly compatible with our ESM301 test stand, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications.



Features

  • High-speed 14,000 Hz sampling rate
  • Individual data point memory for up to 5,000 data points, downloadable to a PC
  • Sample break detection with auto functions, including stopping movement on the ESM301(L) test stand
  • Automatic output / data storage / zeroing upon various event completions
  • Programmable footswitch command string

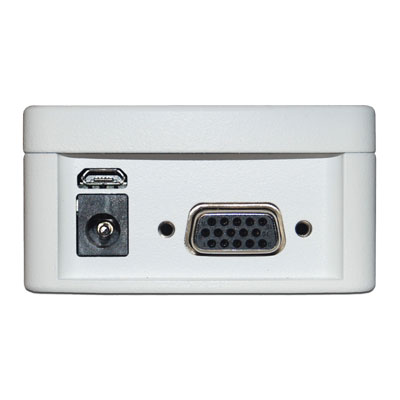

  • USB, RS-232, Mitutoyo, and analog outputs
  • 1st / 2nd peak detection
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • 5 units of measurement, plus Coefficient of Friction, and user-defined unit with configurable name

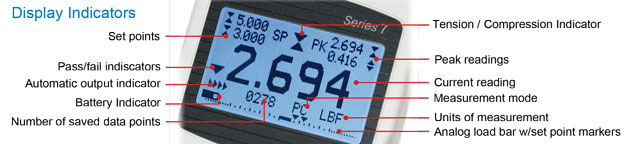

  • Programmable set points with pass/fail audible and visual indicators
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Password protection, configurable for individual keys and calibration

Specialized Gauge Functions

Series 7 gauges feature several functions typically found in more complex instruments, such as materials testers, data acquisition systems, and PLCs. The following unique features are highlighted:

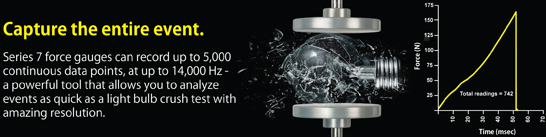

High Speed Data Capture & Storage> High Speed Data Capture and Storage Series 7 can capture and store up to 5,000 continuous data points at a rate of up to 14,000 readings per second. This unique function is ideal for capturing switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others.

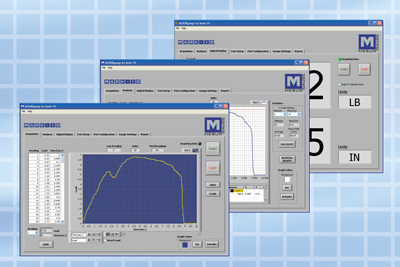

Data from the storage buffer can be exported to data collection software such as MESURTMgauge for further analysis and graphing. Using a Series 7 gauge could replace cumbersome and expensive data acquisition hardware and software.
Footswitch Command String Footswitch Command String Integrate your footswitch / automation system with a Series 7 gauge to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single footswitch activation.

Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step.
Automatic Data Output / Save / Zero / I/O Pin Toggle Automatic Data Output / Save / Zero / I/O Pin Toggle Upon completion of several event types, the Series 7 can perform the following productivity-enhancing functions:
  • Automatically save the peak reading to memory.
  • Transmit the peak reading via USB, RS-232, or Mitutoyo output.
  • Zero the display.
  • Toggle an I/O pin, for example to stop movement of an ESM301/ESM301L test stand.
Applicable events include:
  • Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall).
  • Completion of an averaging sequence.
  • External trigger (ex. switch activation).
  • 1st / 2nd peak capture (ex. tensile testing).
User-defined Unit of Measurement User-defined Unit of Measurement Series 7 gauges display 6 standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name. Typical applications:

- To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm.

- To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi.

Force Ranges - capacity/resolution

Model lbF ozF kgF gF N kN mN
M7-012 0.1200
0.00002
2.0000
0.0005
- 50.00
00.01
0.5000
0.0001
- 500.0
000.1
M7-025 0.25000
0.00005
4.000
0.001
- 100.00
000.02
1.0000
0.0002
- 1000.0
0000.2
M7-05 0.5000
0.0001
8.000
0.002
- 250.00
00.05
2.5000
0.0005
- 2500.0
0000.5
M7-2 2.0000
0.0005
32.00
00.01
1.0000
0.0002
1000.0
0000.2
10.000
0.002
- -
M7-5 5.000
0.001
80.00
00.02
2.5000
0.0005
2500.0
0000.5
25.000
00.005
- -
M7-10 10.000
00.002
160.00
000.05
5.000
0.001
5000.0
1.0
50.00
00.01
- -
M7-20 20.000
00.005
320.00
000.01
10.000
00.002
10000.0
2.0
100.00
000.02
- -
M7-50 50.00
00.01
800.00
000.02
25.000
00.005
25000.0
5.0
250.00
000.05
- -
M7-100 100.00
000.02
1600.0
0000.5
50.00
00.01
50000.0
10.0
500.0
000.1
- -
M7-200 200.00
000.05
3200.0
1.0
100.00
000.02
- 1000.0
0000.2
1.0000
0.0002
-
M7-500 500.0
000.1
8000.0
2.0
250.00
000.05
- 2500.0
0000.5
2.5000
0.0005
-

Dimensions

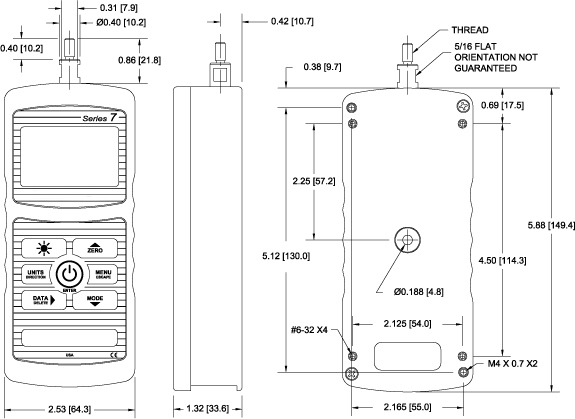

Dimensional Drawing - Dimensions in Inches[Millimeters]
- Click for larger image
Model Load Cell Thread
M7-012 - M7-100 #10-32M UNF
M7-200 - M7-500 5/16-18M UNC

Accessories

M7-012 -M7-20 M7-50 -M7-100 M7-200 - M7-500
Extension Rods G1024 G1024 G1031
Cone G1026 G1026 G1033
Chisel G1025 G1025 G1032
V-Groove G1027 G1027 G1034
Flat G1029 G1029 G1036
Hook G1028 G1038 G1035
Coupling - G1039 G1037
Thread Adapter - - -

Special Attachments

Related Products

ESM303 Motorized Test Stand
Click image for more info
High Performance Motorized Test Stand, 300lb Capacity
- Adjustable Travel Speed, Standard - 0.5 - 13 in/min (13 - 330 mm/min), Optional - 0.02 - 45 in/min (0.5 - 1,100 mm/min)
- USB output of force vs. time or force vs. travel (with optional travel measurement)
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click
force gauge handles
Click image for more info
Single Handle & Double Handle Grips

Complete Kit

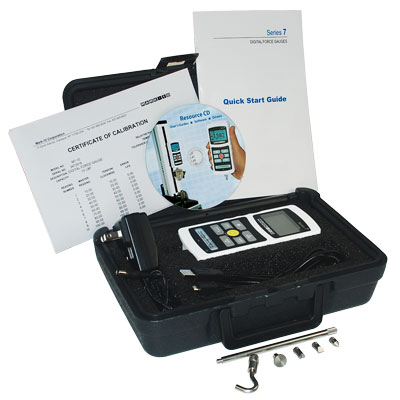

Series 7 force gauges are supplied in a cushioned carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.

Specifications

Sampling Rate14,000 Hz
Accuracy±0.1% of Full Scale
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement UnitslbF, ozF, gF, kgF, N, kN, mN (depending on model)
OutputsUSB / RS-232: Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices.
Analog: ±1 V DC, ±0.25% of full scale at capacity.
General Purpose: Three open drain outputs, one input.
Set Points: Three open drain lines.
Configurable settingsDigital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe Overload150% of full scale (display shows "OVLD" at 110% and above)
Load cell deflection:All models 0.010" [0.25mm], except 0.005" [0.13mm] for M7-012
Operating Temperature Range40 - 100°F, max. 96% humidity, non-condensating
Weight(gauge only)M7-012 - M7-100: 1.0 lb [0.45 kg]
M7-200 - M7-500: 1.2 lb [0.54 kg]
Included AccessoriesCarrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Warrany3 years

Downloads

Buy Now

Item Description Price
Professional Digital Force Gauge 2oz / 50g / 0.5N Capacity
$1,725.00
Professional Digital Force Gauge 4oz / 100g / 1.0N Capacity
$1,725.00
Professional Digital Force Gauge, 0.5lb / 250g / 2.5N Capacity
$1,725.00
Professional Digital Force Gauge, 2lbs / 1Kg / 10N Capacity
$1,575.00
Professional Digital Force Gauge, 5lbs / 2.5Kg / 25N Capacity
$1,575.00
Professional Digital Force Gauge, 10lbs / 5Kg / 50N Capacity
$1,575.00
Professional Digital Force Gauge, 20lbs / 10Kg / 100N Capacity
$1,575.00
Professional Digital Force Gauge, 50lbs / 25Kg / 250N Capacity
$1,575.00
Professional Digital Force Gauge, 100lbs / 50Kg / 500N Capacity
$1,575.00
Professional Digital Force Gauge, 200lbs / 100Kg / 1000N Capacity
$1,725.00
Professional Digital Force Gauge, 500lbs / 250Kg / 2500N Capacity
$1,725.00
