Series-2 Economical Digital Force Gauge

Made in USA
Mark-10 Series 2 digital force gauge
Click images to enlarge.

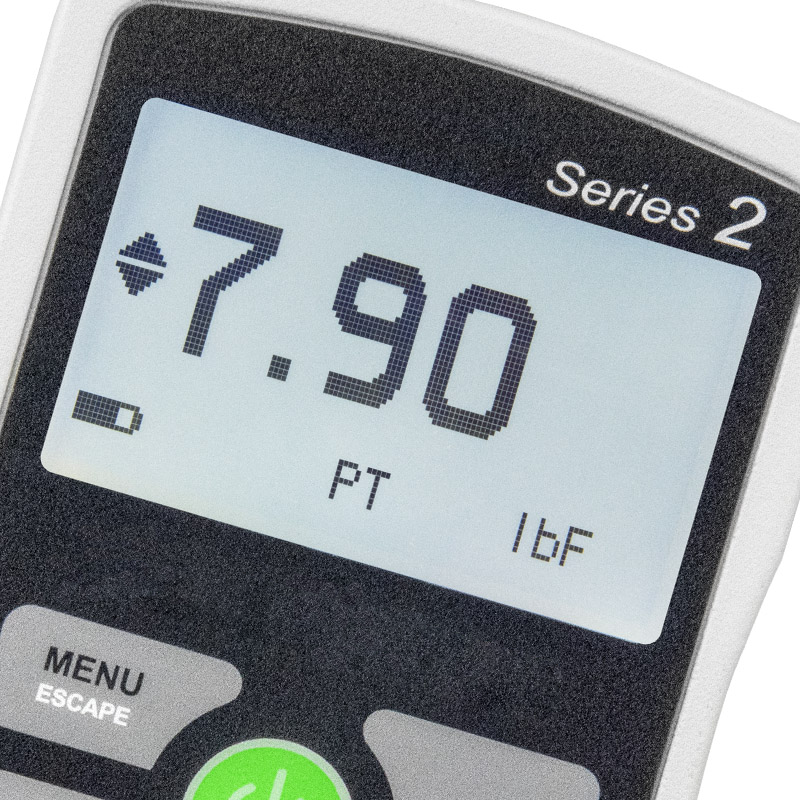

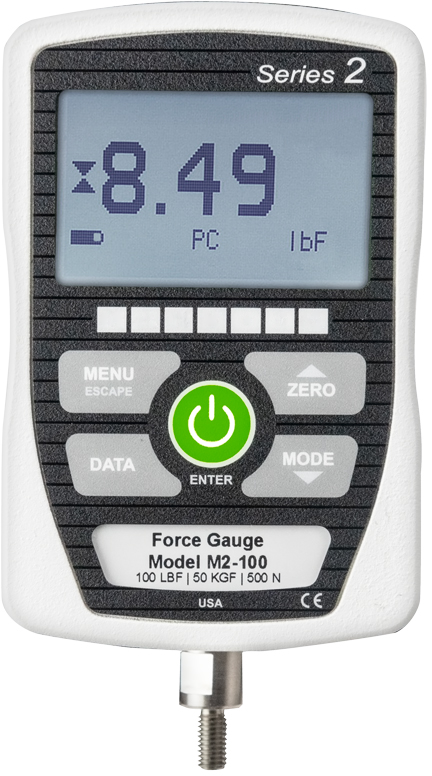

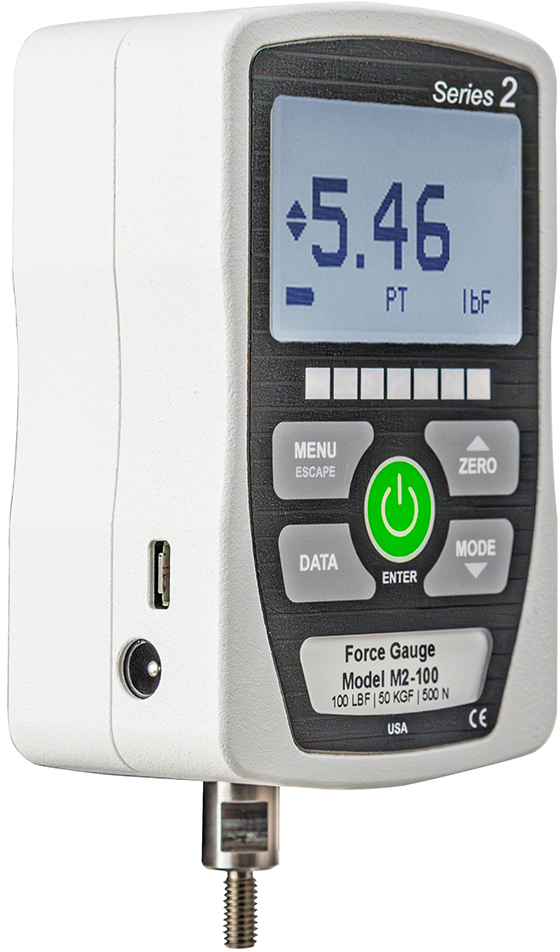

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments.

Features

  • Calculates peak tension and compression values
  • Supplied with certificate of conformance. NIST calibration cert with data optional ($50 - pn: CERT)
  • 500 Hz sampling rate
  • Powered by rechargeable battery or AC adapter
  • 3 selectable units of measurement
  • Configurable default measurement unit and mode
  • Large, backlit graphic display with auto-dimming

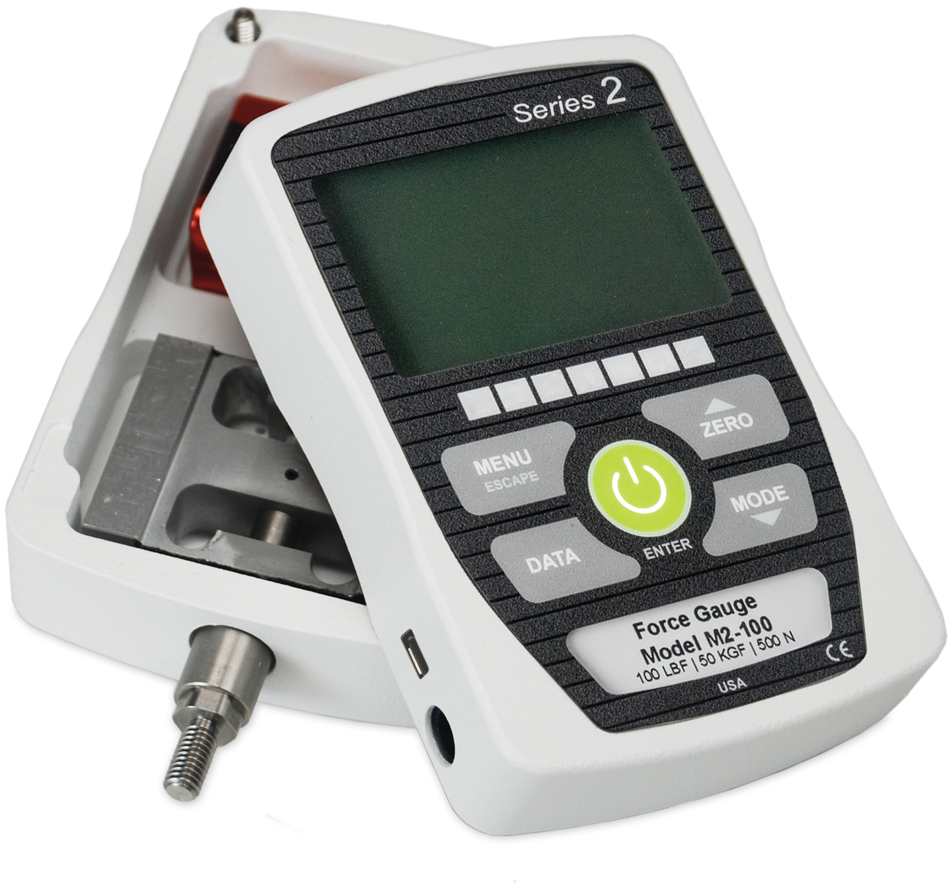

  • Reversible housing for alternate load cell orientation

Force Ranges

ModelCapacityResolution
M2-22 lbF
1 kgF
10 N
0.002 lbF
0.001 kgF
0.01 N
M2-55 lbF
2.5 kgF
25 N
0.005 lbF
0.002 kgF
0.02 N
M2-1010 lbF
5 kgF
50 N
0.01 lbF
0.005 kgF
0.05 N
M2-2020 lbF
10 kgF
100 N
0.02 lbF
0.01 kgF
0.2 N
M2-5050 lbF
25 kgF
250 N
0.05 lbF
0.02 kgF
0.2 N
M2-100100 lbF
50 kgF
500 N
0.1 lbF
0.05 kgF
0.5 N
M2-200200 lbF
100 kgF
1000 N
0.2 lbF
0.1 kgF
1 N
M2-500500 lbF
250 kgF
2500 N
0.5 lbF
0.2 kgF
2 N

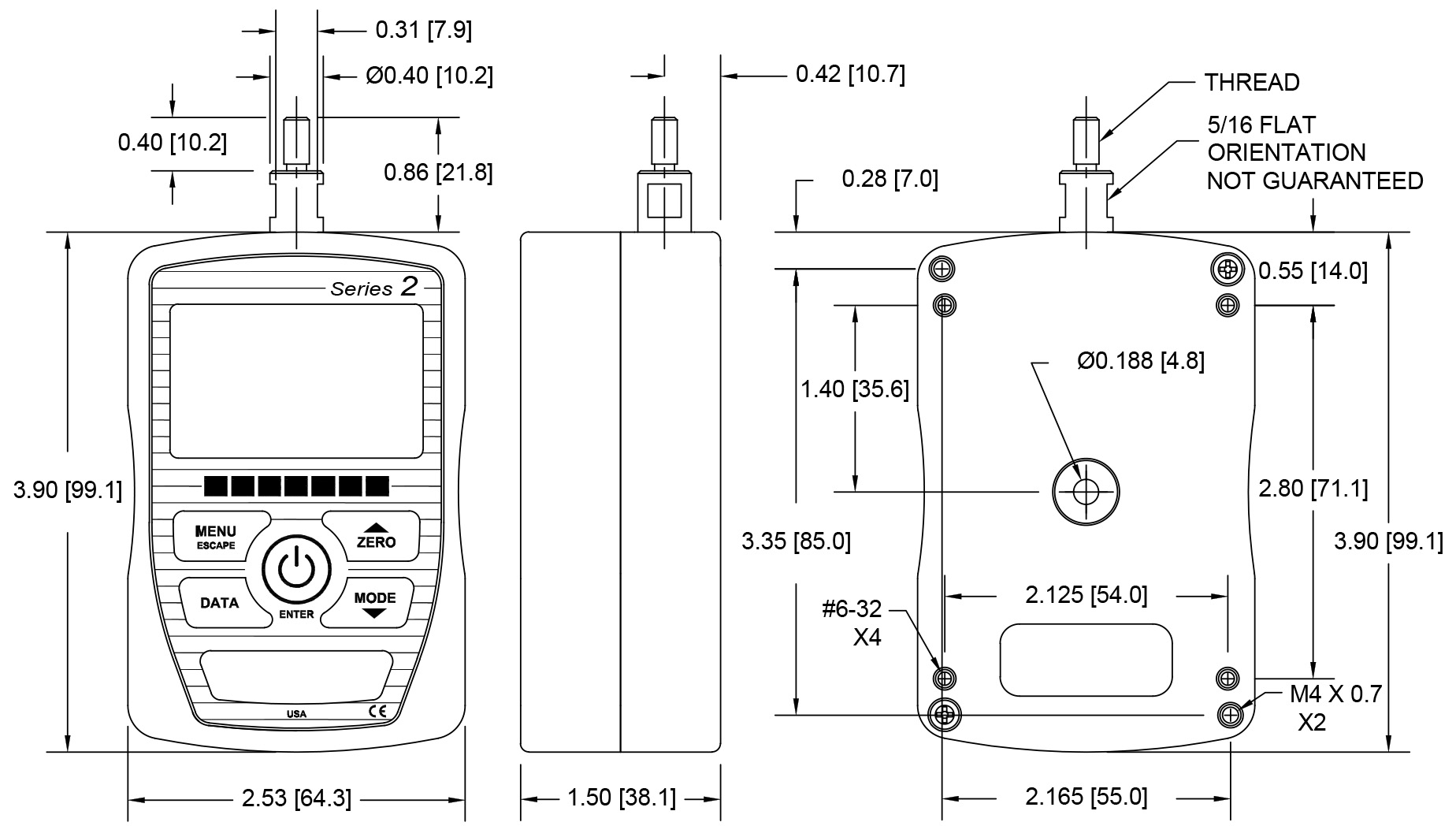

Dimensions

Related Products

es10 force test stand
Click image for more info
Mechanical Test Stand
- Mounting holes for bench mounting
- Loading lever can be placed in 3 positions for ease of operation
- Optional 1" [25.4mm] dial indicator travel kit

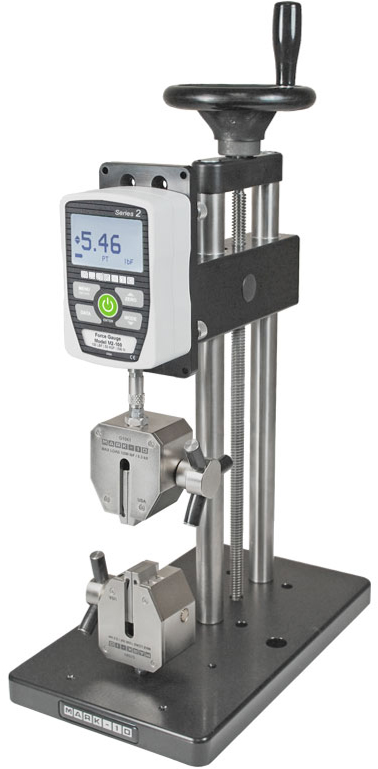

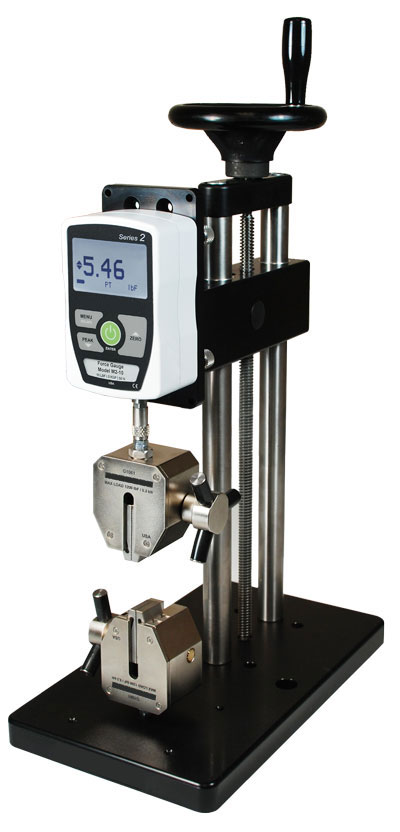

es20 force test stand
Click image for more info
Mechanical Test Stand
- Mounting holes for bench mounting
- Optional 1" [25.4mm] dial indicator travel kit
AC1073 Inline Adapters for Force Gauges
Click image for more info
Inline Adapters for Force Gauges
force gauge handles
Click image for more info
Single Handle & Double Handle Grips

Special Attachments

Complete Kit

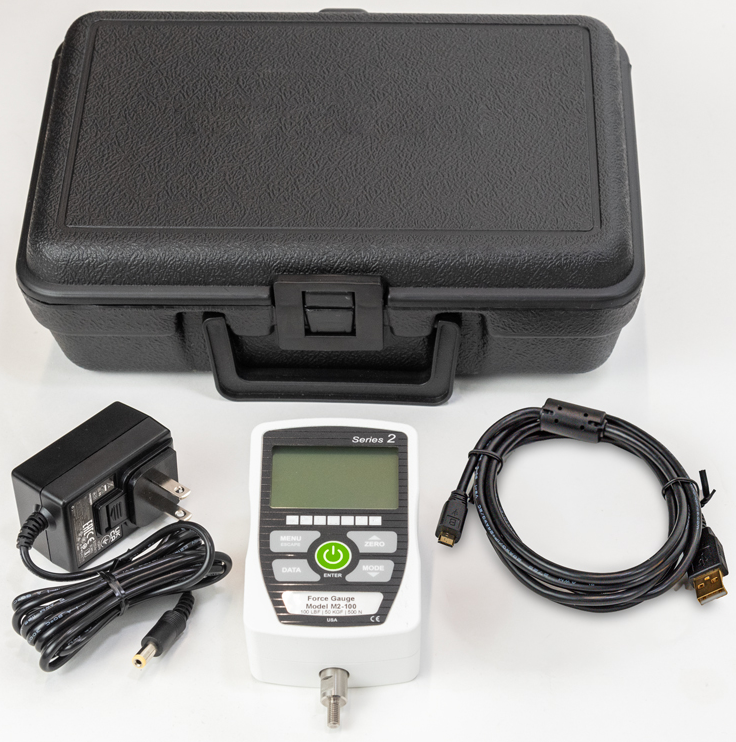

The Series 2 is supplied with built-in rechargeable battery, AC adapter, quick-start guide, resource CD, certificate of conformance.

Carrying case, attachments are SOLD SEPARATELY.

Specifications

Accuracy±0.5% of full scale
Sampling Rate500 Hz
PowerAC or rechargeable battery, with multi-step low battery indicator
Battery LifeBacklight on: up to 24 hours of continuous use
Backlight off: up to 92 hours of continuous use
Measurement UnitslbF, kgF, N
Safe Overload150% of full scale (display shows "OVER" at 110% and above)
Operating Temperature Range40 - 100°F, max. 96% humidity, non-condensating
Weight0.7 lb [330 g] - models M2-2 thru M2-100
0.9 lb [410 g] - models M2-200 – M2-500
Included AccessoriesBuilt-in rechargeable battery, AC adapter charger, quick-start guide, resource CD, certificate of conformance
Warrany3 years
Load Cell Thread#10-32 UNF - models M2-2 thru M2-100
5/16-18 UNC - models M2-200 – M2-500

Downloads

Buy Now

Item Description Price
Digital Force Gauge, 2 lb / 1 kg / 10 N Capacity (GAUGE and AC Adapter ONLY)
$400.00
Digital Force Gauge, 5 lbs / 2.5 kg / 25 N Capacity (GAUGE and AC Adapter ONLY)
$400.00
Digital Force Gauge, 10 lbs / 5 kg / 50 N Capacity (GAUGE and AC Adapter ONLY)
$400.00
Digital Force Gauge, 20 lbs / 10 kg / 100 N Capacity (GAUGE and AC Adapter ONLY)
$400.00
Digital Force Gauge, 50 lbs / 25 kg / 250 N Capacity (GAUGE and AC Adapter ONLY)
$400.00
Digital Force Gauge, 100 lbs / 50 kg / 500 N Capacity (GAUGE and AC Adapter ONLY)
$400.00
Digital Force Gauge, 200 lbs / 100 kg / 1000 N Capacity (GAUGE and AC Adapter ONLY)
$545.00
Digital Force Gauge, 500 lbs / 250 kg / 2500 N Capacity (GAUGE and AC Adapter ONLY)
$545.00
Accessories
CERT
Upgrade to NIST Calibration Certificate of Calibration with Data
$75.00
ISO-17025-FG200
ISO-17025 Calibration for Force Gauges up to 200 lbs / 100 kg / 1000 N
$195.00
12-1049
M2 Force Gauge Carrying case
$35.00
23-1031-2
Attachment kit for M2-2 - 2-100
$85.00
23-1031-3
Attachment kit for M2-200 - M2-500
$105.00
AC1030
AC adapter for M2 force gauge with USA Plug
$40.00
AC1031
AC adapter for M2 force gauge with Euro Plug
$40.00
AC1032
AC adapter for M2 force gauge with UK Plug
$40.00
AC1035
AC adapter for M2 force gauge with AUS Plug
$40.00
Medium hook, #10-32M (requires G1039 to attach to force gauge)
$15.00
G1039
Coupler, #10-32F to #10-32F
$15.00
Flat head, #10-32F
$20.00
Cone, #10-32F
$20.00
Chisel point, #10-32F
$20.00
V-groove, #10-32F
$20.00
Extension rod, 5", #10-32F
$20.00
