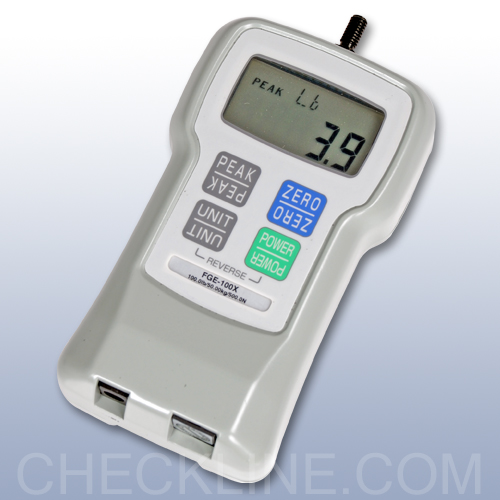

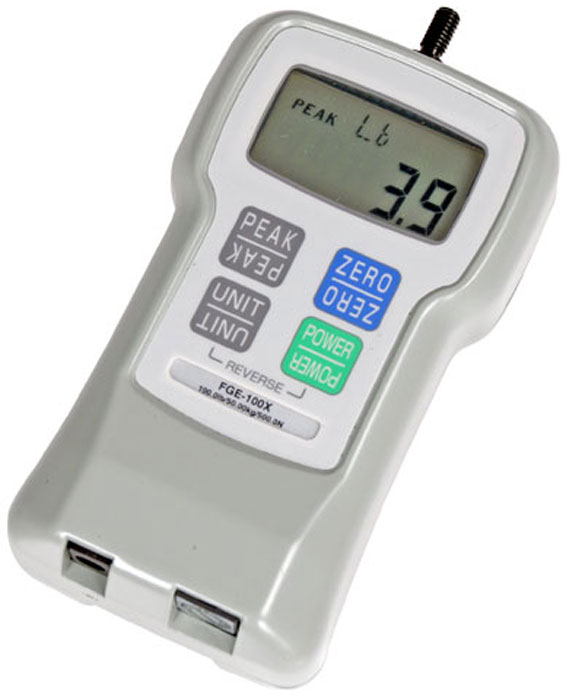

FGE Hand-held Digital Force Gauge

Click images to enlarge.
8 Ranges up to 100lbs
Measures Push / Pull Force


Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications. The Series FGE-X Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-X to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 100 lb ranges providing a large offering for various testing requirements.

Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.

Features

  • Display "real-time" or "peak" force
  • Accuracy ± 0.2%
  • 200% overload protection
  • User-selected units of Pounds, Kilograms or Newtons

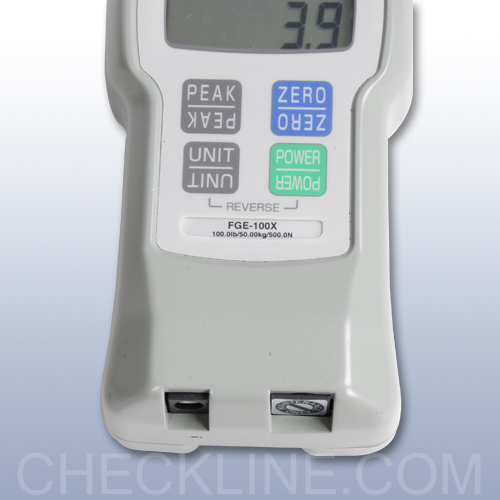

  • Display can be reversed for inverted use
  • Includes Traceable Calibration Certificate
  • 1 Year Warranty

Force Ranges

ModelCapacityResolution
FGE-0.5X8.00 oz
200.0 g
2.000 N
0.01 oz
0.1 g
0.001 N
FGE-1X16.00 oz
500.0 g
5.000 N
0.01 oz
0.1 g
0.001 N
FGE-2X2.000 lb
1000 g
10.00 N
0.001 lb
1 g
0.01 N
FGE-5X5.000 lb
2.000 Kg
20.00 N
0.001 lb
0.001 kg
0.01 N
FGE-10X10.00 lb
5.000 Kg
50.00 N
0.01 lb
0.001 kg
0.01 N
FGE-20X20.00 lb
10.00 Kg
100.0 N
0.01 lb
0.01 kg
0.1 N
FGE-50X50.00 lb
20.00 Kg
200.0 N
0.01 lb
0.01 kg
0.1 N
FGE-100X100.0 lb
50.00 Kg
500.0 N
0.1 lb
0.01 kg
0.1 N

Related Products

Click image for more info
Digital Force Gauge with USB Output
- 1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals
- Accuracy of ±0.2%
providing superb repeatability
Force Gauge Handle
Click image for more info
Force Gauge Handle
Click image for more info
Manual Hand Wheel Operated Test Stand
FGS-250W Manual Test Stand
Click image for more info
Manual Hand Wheel Operated Test Stand
- Flexible Vertical or Horizontal operation

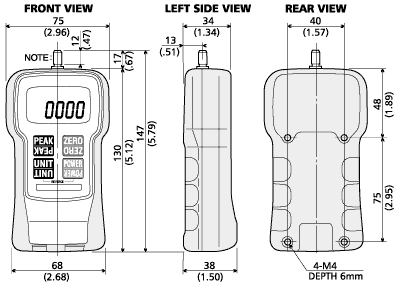

Dimensions


Note:
FGE-0.5X & FGE-1X - Shaft thread is M4
FGE-2X & Over - Shaft thread is M6

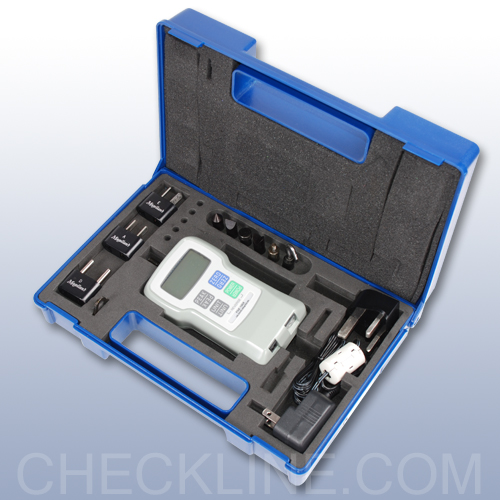

Complete Kit

Includes Force Gauge, Universal 100-240V AC-Adapter/Charger, 6 Attachments; Hook, Flat Head, Notched Head, Hanger, cone head & extension rod in a foam fitted carrying case with factory calibration certificate.

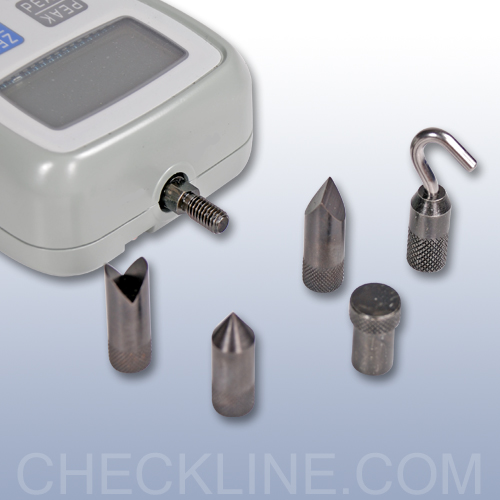

Standard Attachments

Standard Attachments

Special Attachments

Specifications

Accuracy±0.2% full scale
Display4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate1000 times per second
Overload Protection200% of full scale
PowerRechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-OffYes (not active if adapter/charge is in use)
Battery Life12 hours (when fully charged)
Recharge TimeApproximately 18 hours when fully discharged
Dimensions5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight1 lb (450 g)
ApprovalsCE approved
Warranty2 Years
