Click images to enlarge.

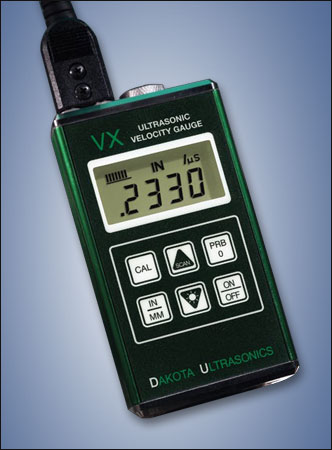

The VX is a hand-held ultrasonic velocity gauge. When measuring materials such as casts, alloys, or plastics, the VX displays the speed of sound (velocity) through the material; thus giving an indication of its consistency.

With the hand-held VX Ultrasonic Velocity gauge, you can determine material velocities by measuring a known thickness, entering a known thickness into the VX, and the material velocity will be displayed. The tool’s backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries.

The VX gauge has 2 measuring modes: The Point-to-Point mode, which is simply placing the probe to the material and the gauge will display the velocity at that point. The Scan mode allows the operator to place the probe on the material and then move the probe along the surface; when the probe is lifted from the material, it will then display the fastest velocity the gauge found on the area covered.

Features

  • Resolution of 0.001 inch (0.01 mm)
  • Large, backlit LCD display retains last reading
  • Simple operator controls virtually eliminate training
  • Switch-selected units for inches or mm
  • CE Certified
  • Includes NIST Calibration Certificate

Related Products

TICC-M Protective Holder for Most TI Series Gauges, F-112-0005
Click image for more info
Protective Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop

Specifications

Measuring Range0.025 to 19.999 inches (0.63 to 500 millimeters)
Resolution0.001 inch (0.01 millimeter)
Velocity Range.0492 to .3937 in/m s (1250 to 10,000 meters/sec)
DisplayMulti-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
KeypadSix tactile-feedback keys, sealed membrane that is resistant to both water and petroleum products.
HousingExtruded aluminum body / nickel plated aluminum end caps. Resistant to impact and environmentally sealed.
BatteryTwo 1.5V alkaline or 1.2V NiCad AA cells
Battery Life200 hours alkaline, 130 hours NiCad
Operating Temperature-20 to 120F (-20 to 50C)
Weight10 Ounces
Dimensions2.5" x 4.75" x 1.25" (63.5mm x 120.7mm x 31.8mm)
Warranty5 Years

Buy Now

Item Description Price
Replaced by ZX-3 Dakota Ultrasonic Velocity Gauge, Z-138-0001
$
Accessories
Protective Holder for Most TI Series Gauges, F-112-0005
$55.00
1/4" diameter, 5 MHz, dual element transducer
$285.00
1/4" diameter, 10.00 MHz, dual element transducer
$305.00
1/2" diameter, 1.00 MHz dual element transducer
$290.00
1/2" diameter, 2.25 MHz dual element transducer
$295.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
