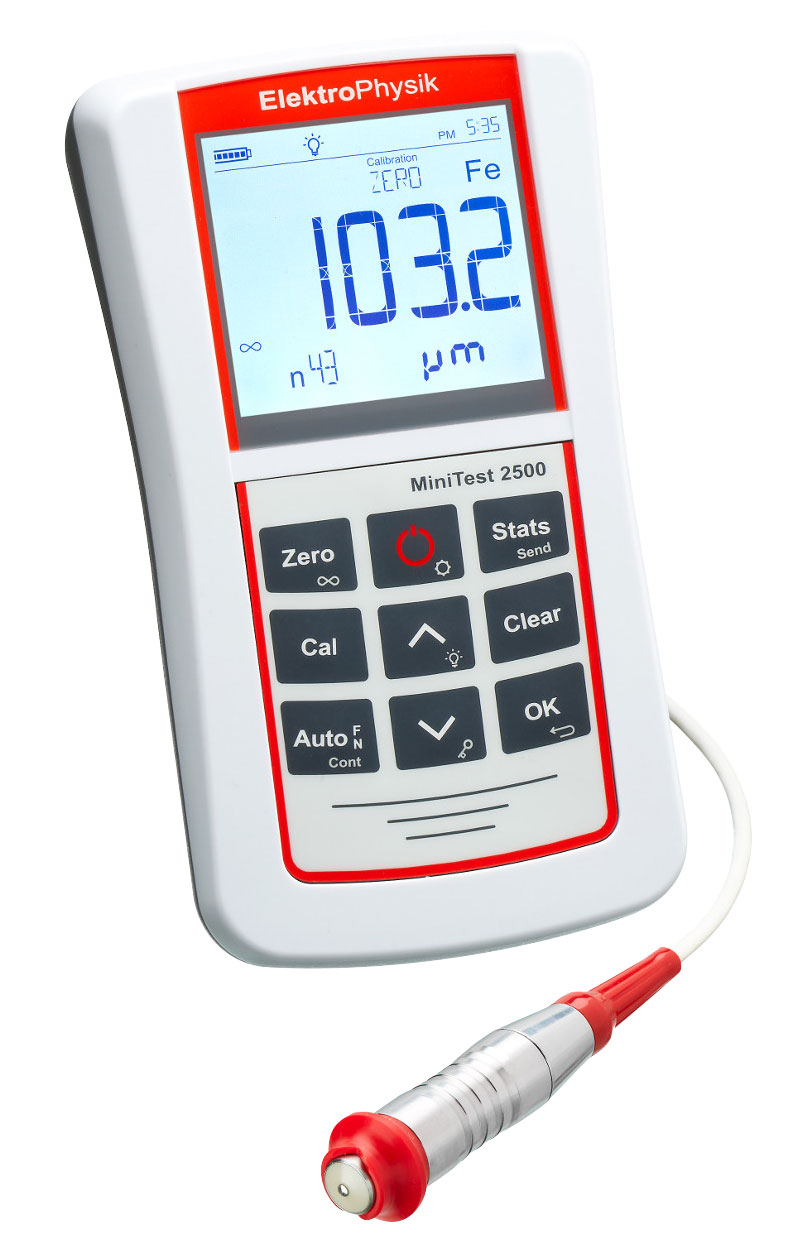

MiniTest 2500 - Basic Model with memory and USB output

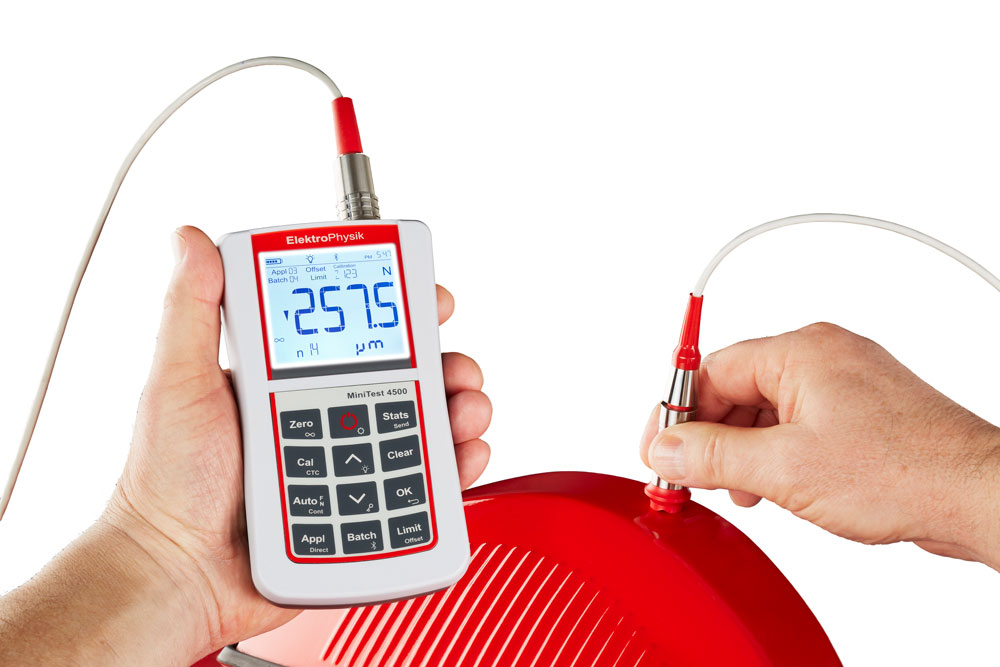

MiniTest 4500 - Adds Batch Memory, Bluetooth, RS232 and more...

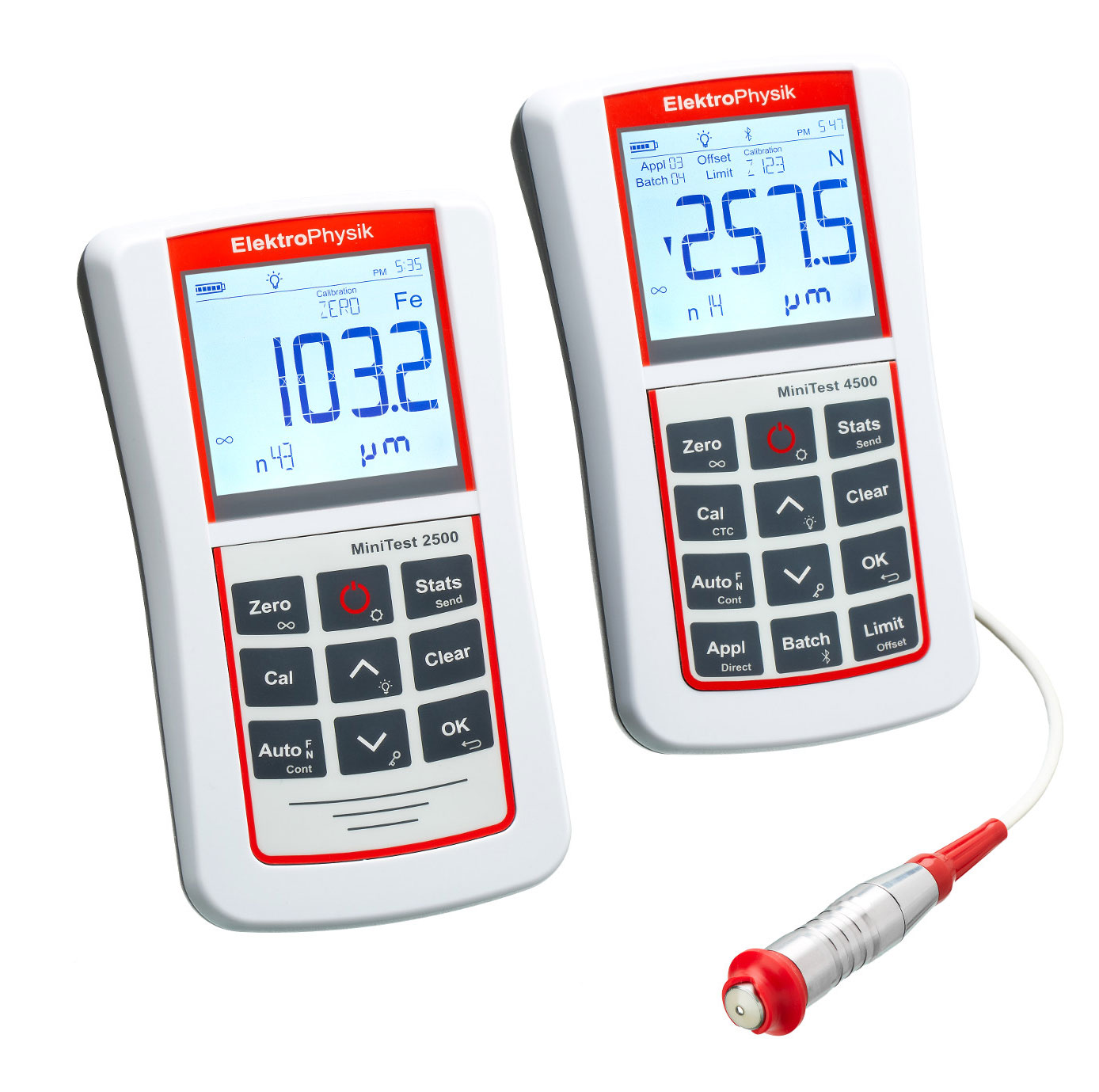

The MiniTest 2500 and 4500 are high precision coating thickness gauges compatible with a large range of probes for measuring coatings on ferrous and non-ferrous metals. Different calibration methods and evaluation options for a wide range of tasks in the field of coating measurements.
MiniTest coating thickness gauges are not only useful in the laboratory but are equally qualified for use in industrial applications thanks to their rugged housing with a IP 65 rating. Both models feature USB output for connection to notebooks and PCs. The MiniTest 4500 additionally offers a Bluetooth output for wireless data transfer to mobile devices like Smartphones and printers directly on site. All gauge functions can be triggered directly pressing a single key of the illuminated keypad. The large display with background illumination adds to a high level of user comfort and ergonomics. A broad selection of measuring sensors is available for the MiniTest 2500/4500 line of coating thickness gauges allowing it to handle standard applications as well more complex measuring tasks.
The scope of application is determined by the sensor connected to the gauge:
F-type (ferrous) sensors work according to the magnetic induction principle and can measure non-magnetic coatings such as paint, enamel, rubber, aluminum, chrome, copper, zinc etc applied on iron and steel (including steel alloys and hardened magnetic steels).
N-type (non-ferrous) sensors work according to the eddy current principle and measure insulating coatings such as paint, anodizing, ceramics etc. applied on all non-ferrous metals (for example aluminum, copper, zinc die cast, brass etc.) including austenitic steels.
FN-type (combination ferrous / non-ferrous) sensors combine both principles and identify the substrate underneath the coating thus automatically switching to the correct measuring principle to measure on base material steel or non-ferrous metal.
- All functions directly accessible
- Large selection of interchangeable sensors
- High-contrast display and illuminated keypad
- Memory and Statistics
- Bluetooth and USB Output
- IP 65 Rated Rugged housing
Measuring Range | Varies By Probe (sold separately) see PDF Brochure for Specifications |
Accuracy | Varies By Probe (sold separately) see PDF Brochure for Specifications |
Memory | MiniTest 2500: 2,000,000 values stored in 1 batch MiniTest 4500: 2,000,000 values stored in up to 9500 batches |
Statistical functions (per batch) | MiniTest 2500: kvar, n, max., min. MiniTest 4500: kvar, n, max., min., CP, CPK |
Calibration | Factory settings, zero and up to four calibration points |
Measuring units | µm, mm, cm, mils, inch |
Output | MiniTest 2500: USB MiniTest 4500: USB and Bluetooth (RS232 optional) |
Power | 3x AA batteries or via USB |
Norms and standards | DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882; ISO 19840; ASTM B 244, B 499, D 7091, E376 |
Display | 53 x 46 mm, backlit |
Operating temperature | -10 - 60 °C / 14 - 140° F |
Storage temperature | -20 - 70 °C / -4 - 158° F |
Dimensions | 153 mm x 89 mm x 36 mm (6” x 3.5” x 1.4”) |

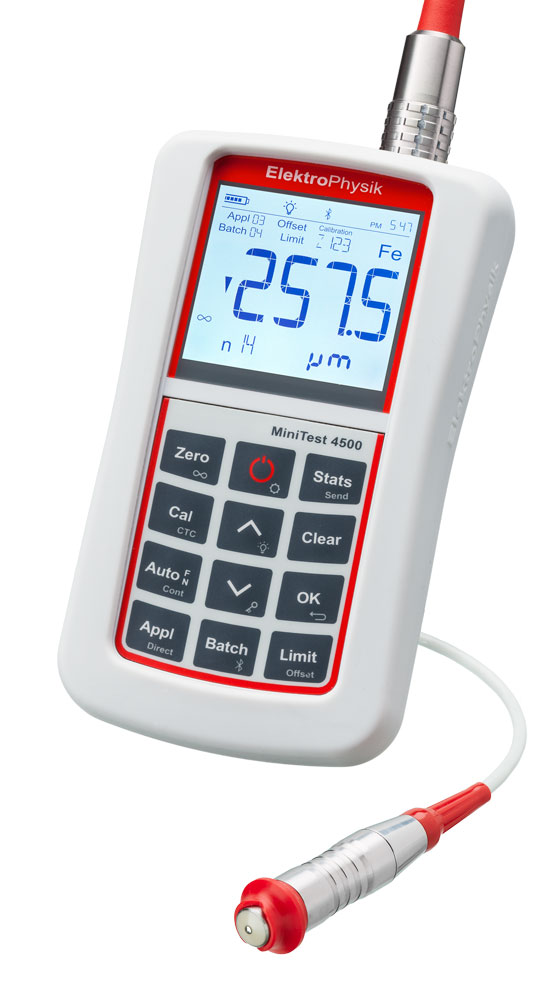

Weight | 320 g (0.7 lbs) (gauge incl. batteries), 90 g (0.2 lbs) rubber protection case |
Protection class | IP 65 |
Item | Description | Price | ||
---|---|---|---|---|
MiniTest 2500 Coating Thickness Gauge, PROBES SOLD SEPARATELY | $1,275.00 | |||
MiniTest 4500 Coating Thickness Gauge, PROBES SOLD SEPARATELY | $1,715.00 | |||
Accessories | ||||
Ferrous Probes | ||||
80-0A0-1202 | F05 Probe for use on Ferrous Substrates (0-500 um / 20 mils) | $830.00 | ||
80-0A1-1603 | F 1.6 Probe for use on Ferrous Substrates (0-1600 um / 63 mils) | $710.00 | ||
80-0A1-1202 | F2 HT Probe for use on High-Temp (250 C / 482 F) Ferrous Substrates (0-2000 um / 80 mils) | $970.00 | ||
80-0A1-1302 | F2 EX-HT Probe for use on Extra High-Temp (350 C / 662 F) Ferrous Substrates (0-2000 um / 80 mils) | $1,740.00 | ||
80-0A1-1403 | F3 Probe for use on Ferrous Substrates (0-3000 um / 120 mils) | $710.00 | ||
80-0A4-1200 | F 1.6/90 90 Degree Probe for use on Ferrous Substrates (0-1600 um / 63 mils) | $930.00 | ||
80-0A4-1300 | F 2/90 90 Degree Probe for use on Ferrous Substrates (0-2000 um / 80 mils) | $930.00 | ||
80-0A6-1001 | F 10 Probe for use on Ferrous Substrates (0-10 mm / 394 mils) | $1,015.00 | ||
80-0A8-1001 | F 20 Probe for use on Ferrous Substrates (0-20 mm / 788 mils) | $1,015.00 | ||
80-0AA-1000 | F 50 Probe for use on Ferrous Substrates (0-50 mm / 2 in) | $1,615.00 | ||
Non-Ferrous Probes | ||||
80-0A2-1001 | N 02 Probe for use on Non-Ferrous Substrates (0-200 um / 8 mils) | $905.00 | ||
80-0A3-1302 | N 1.6 Probe for use on Non-Ferrous Substrates (0-1600 um / 63 mils) | $870.00 | ||
80-0A5-1200 | N 1.6/90 90 Degree Probe for use on Non-Ferrous Substrates (0-1600 um / 63 mils) | $1,005.00 | ||
80-0A5-1300 | N 2/90 90 Degree Probe for use on Non-Ferrous Substrates (0-2000 um / 80 mils) | $1,005.00 | ||
80-0A7-1000 | N 10 Probe for use on Non-Ferrous Substrates (0-10 mm / 394 mils) | $1,335.00 | ||
80-0A9-1000 | N 20 Probe for use on Non-Ferrous Substrates (0-20 mm / 788 mils) | $1,335.00 | ||
80-0B1-1000 | N 100 Probe for use on Non-Ferrous Substrates (0-100 mm / 4 in) | $1,765.00 | ||
Combination Ferrous and Non-Ferrous Probes | ||||
80-080-1402 | FN 1.6 Probe for use on Ferrous and Non-Ferrous Substrates (0-1600 um / 64 mils) | $1,285.00 | ||
80-082-1000 | FN 1.6/90 90 Degree Probe for use on Ferrous and Non-Ferrous Substrates (0-1600 um / 63 mils) | $1,370.00 | ||
80-082-1100 | FN 2/90 90 Degree Probe for use on Ferrous and Non-Ferrous Substrates (0-2000 um / 80 mils) | $1,370.00 | ||
Special Probes | ||||
80-0A2-1101 | N.08 Cr Probe for measuring chrome on copper substrates (0-80 um / 3 mils) | $910.00 | ||
80-0B4-1001 | CN02 Probe for Copper Coatings on Insulating Substrates, 0-8 mils (0-200 um) | $1,750.00 | ||
Other Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate (Per Probe Ordered) | $100.00 | ||
BATT-RC4AA-WC | 4-pack AA Ni-MH Rechargeable Batteries & Charger Kit | $35.00 | ||
Certified Plastic Shims, Set of 4 | $120.00 |
