8000 Series Precision Coating Thickness Gauge

Made in Germany
8000 Coating Gauge Checkline
Click images to enlarge.
DCF-8000 - Ferrous Only Model
Range Ferrous: 0-120 mils 0-3000um

DCFN-8000 - Combination Ferrous & Non-Ferrous Model
Range Ferrous: 0-80 mils 0-2000um
Non-Ferrous: 0-80 mils 0-2000um

The 8000 Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of laboratory and field applications and manufactured to international quality standards, the 8000 Series will provide years of trouble-free use.

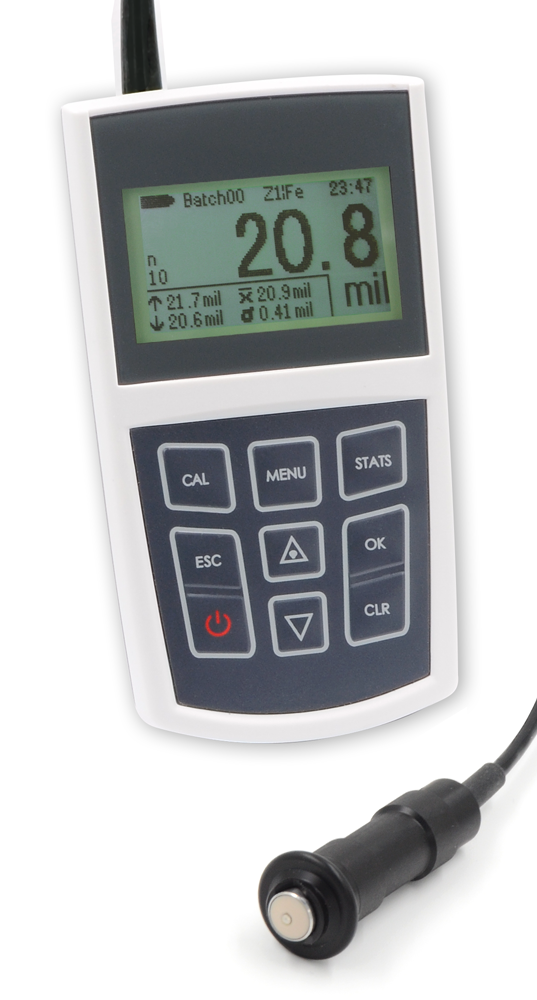

The 8000 Series features a fixed external probe on a cable for the measurement of all non-magnetic coatings on steel (Fe) and all insulating coatings (non-conductive & non-magnetic) on non-ferrous metals (nFe). It is specially designed to work in rough environments and on abrasive surfaces, and plasma spray-coated surfaces.

The industry-proven one-pole sensor is made of a wear and tear-resistant carbide material to ensure a virtually unlimited life cycle under normal use. The gauge body is supplied in a rubber protective sleeve, providing enhanced physical protection.

A backlit Graphic LCD, built-inmemory with statistics and USB output combined with a simple menu system make these gauges easy to operate, providing high accuracy, resolution, repeatability and functionality.

Features

  • Resolution of up to 0.01 mils (1 micron)
  • User-selected units of inch (mils) or microns (µm)
  • Auto substrate recognition (Ferrous or Non-Ferrous)
  • Rugged External Probe is supplied with a 1-meter length cable
  • Probe with wear-resistant carbide metal tip
  • Automatic identification of the substrate material
  • Statistical evaluation of readings (number of readings, maximum, minimum, mean value & standard deviation)
  • User-selected one or two-point calibration
  • Built-in Memory for 10,000 values with USB Output
  • Can be set for up to 10 batches with 1000 readings per batch
  • Upper & Lower Limits with Audible & Visual Indication of Out of Tolerance Measurements
  • Works Basic Calibration Certification (without data) is incuded
  • NIST Traceable Calibration Certificate optionally available at additional cost
  • Warranty 1-Year, Made in Germany

Specifications

Measuring RangeModel F (steel)
0 - 3000 μm / 120 mils
Model FN (dual sensor)
F: 0 - 3000 μm / 120 mils
N: 0 - 2000 μm / 80 mils
Measuring Uncertainty± (2 % of reading + 2 μm)
± (2 % of reading + 0.08 mils)
Resolution (mils)0.01 mils (0.00… 0.99 mils)
0.02 mils (1.00… 4.98 mils)
0.05 mils (5.00… 9.95 mils)
0.1 mils (10.0… 49.9 mils)
0.2 mils (50.0... 99.8 mils)
0.5 mils (100.0... 120.0 )
Resolution (microns)1 µm (0…199 µm)
2 µm (200…498 µm)
5 µm (500…995 µm)
10 µm (1000… 2000 µm)
Minimum curvature radius convex5 mm / 0.2“
Minimum curvature radius concave25 mm / 1“
Minimum measuring areaØ 20 mm / 0.8“
Minimum base thickness:0.5 mm / 20 mils (F) / 50 μm / 2 mils (N)
Display128 x 64 Dots graphics display, backlit
Measuring unitsμm – mils, user selectable
CalibrationStandard, 1-point and 2-point calibration
StatisticsMean value, standard deviation, number of readings, minimum and maximum (Calculated from 1000 readings, max)
InterfaceUSB
Max Batches10
Data In Each Batch1000 readings (max)
Power2 AA-Batteries (alkaline)
DimensionsHousing: 130 mm × 73 mm ×25 mm / 5.1" x 2.9" x 1.0"
Sensor: Ø 15 mm x 62 mm / Ø 0.60” x 2.44”
Weight162 grams (Including batteries)
Ambient temperatureGauge: 0 to 50 °C / 32 ° to 122 °F
Sensor: -10 ° to 70 °C / 14 ° to 158 °F
Warranty1 Year

Complete Kit

The 8000 Series Coating Thickness Gauge is delivered as a complete kit with:
  • DCF-8000 or DCFN-8000 Gauge with probe
  • Zero Calibration Standard(s) (bare metal plate)
  • Calibration standard(s) Calibration foils/shims
  • Operating instructions
  • Soft pouch
  • 2x AA Batteries

Related Products

Certified Plastic Shims
Click image for more info
CPS
Certified Plastic Shims / Foils for Coating Thickness Gauge Calibration and Verifications

Downloads

Buy Now

Item Description Price
Digital Coating Thickness Gauge with Ferrous Probe, 0 - 3000 μm / 120 mils
$595.00
Digital Coating Thickness Gauge with Combination FN Probe, 0 - 2000 μm / 80 mils
$995.00
Accessories
NISTCAL
NIST Traceable Calibration Certificate
$100.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
