3000EZ Series Coating Thickness Gauge

Made in Germany

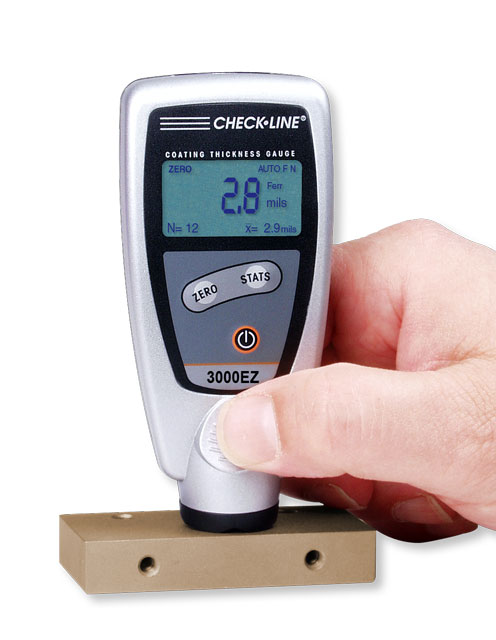

3000EZ Coating Thickness Gauge
Click images to enlarge.
2 Models
- Ferrous Only Model
DCFN-3000EZ - Combination Ferrous & Non-Ferrous Model

Range Ferrous: 0-140 mils (0-3500um)
Non-Ferrous: 0-120 mils (0-3000um)

The 3000EZ Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of laboratory and field applications and manufactured to international quality standards, the 3000EZ Series will provide years of trouble-free use.

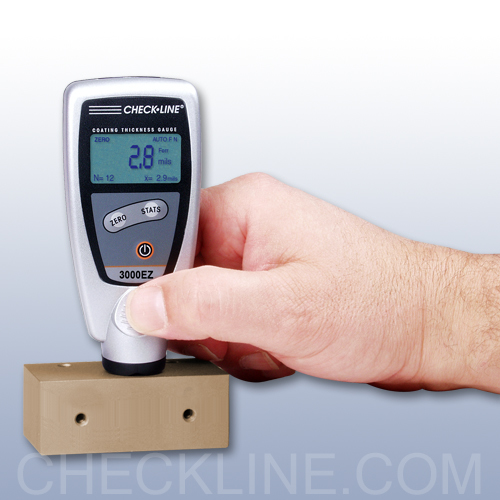

The 3000EZ Series is designed for testing non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method).

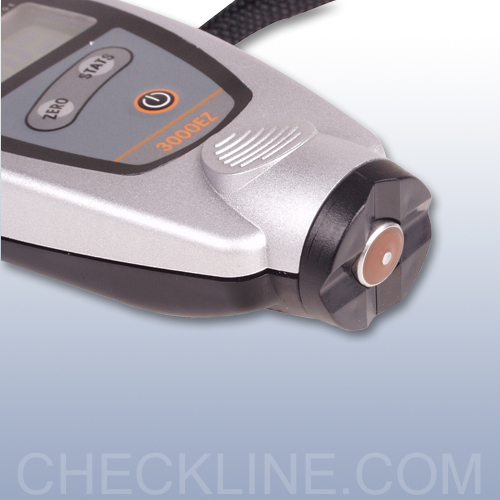

  • Integrated dual sensor with hard metal pole tip
  • Includes Traceable Calibration Certificate
  • Live statistics display for up to 99 readings
  • Keypad-selectable English or metric units.
  • 2 Year Warranty

Measuring Limits

Minimum Radius for Convex Surfaces 0.2" (5 mm)
Minimum Radius for Concave Surfaces 2" (50mm)
Minimum Headroom 4" (100 mm)
Minimum Sample Diameter 0.5" (13 mm)
Minimum Substrate Thickness - F 20 mils (0.5 mm)
Minimum Substrate Thickness - NFe 2 mils (50 um)

Resolution Table

0 - 99.9 mils0.1 mils
100.0 - 140.0 mils0.2 mils
Microns (µm)
0 - 999 µm1 µm
1.000 - 2.498 mm0.002 mm
2.500 - 3.500 mm0.005 mm

Related Products

Click image for more info
Shim Set for Coating Thickness Gauges
3000EZ-E Coating Thickness Gauge
Click image for more info
Coating Thickness Gauge with Separate Probe
Certified Plastic Shims
Click image for more info
Certified Plastic Shims / Foils for Coating Thickness Gauge Calibration and Verifications
Paintcheck Paint Thickness Gauge
Click image for more info
PaintCheck Thickness Gauge for car body, autobody


RangeFerrous: 0 - 140.0 mils (0 - 3500 µm)
Non-Ferrous: 0 - 120.0 mils (0 - 3000 µm)
Accuracy±0.1 mils (3µm) or 3% of reading, whichever is greater
ResolutionRefer To Table Above
Displayback-lit, 4-digit alphanumeric, digit height
Minimum Measuring Area0.5" x 0.5" (13 mm x 13 mm)
Minimum Curvature Radiusconcave: 0.2" (5 mm)
Minimum Substrate ThicknessFerrous: 20 mils / 0.5 mm
Non-Ferrous: 2 mils / 50 µm
Calibrationfactory calibration, zero calibration
Statistics ProgramNumber of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
Operating Temp.32 °F to 122 °F / 0 °C to 50 °C
Surface Temp.5 °F to 140 °F / -15 °C to 60 °C
Storage Temp.-4 °F to 140 °F / -20 °C to +60 °C
Power2 AAA 1.5V
Dimensions4.3" x 2" x 1" (110 mm x 50 mm x 25 mm)
Weight3.2 oz (90 g)
Protection Class IP 52 (proof against dust and dripping water)
StandardsDIN, ISO, ASTM, BS
Warranty2 Years
Calibration CertificateIncluded
Changing Units of Measure
1. Turn Gauge OFF
2. Hold down ZERO and STATS Buttons
3. Press and release POWER while still holding ZERO and STATS
4. Release ZERO and STATS a moment after it turns on and units should change.

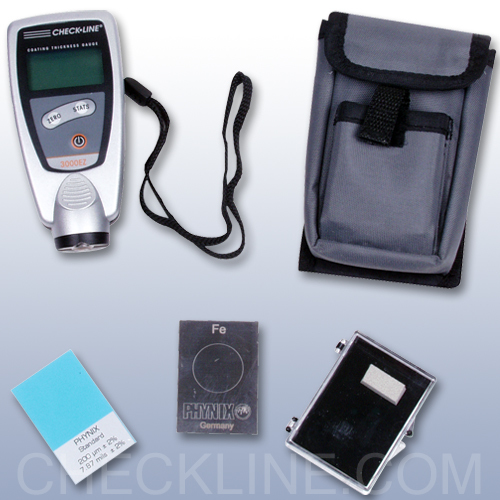

Complete Kit

The 3000EZ Series is supplied as a complete kit with gauge, ferrous & non-ferrous zero plate(Combination model only), plastic test shim, 2 AA batteries, soft carrying pouch, protective rubber shell, instruction manual and calibration certificate.


Buy Now

Item Description Price
Coating Thickness Gauge with Built-In Probe, Measures Coatings on Ferrous Metals up to 140 mils / 3500 Microns
Coating Thickness Gauge with Built-In Probe, Measures Coatings on Ferrous Metals up to 140 mils / 3500 Microns and NON-Ferrous Metals up to 120 mils / 3000 Microns
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
