CAP-TT03 Hand-held Cap Torque Meter - MTT03C

Made in USA

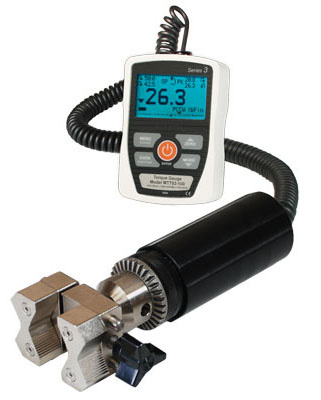

CAP-TT03 Hand Cap Torque Tester
Click images to enlarge.

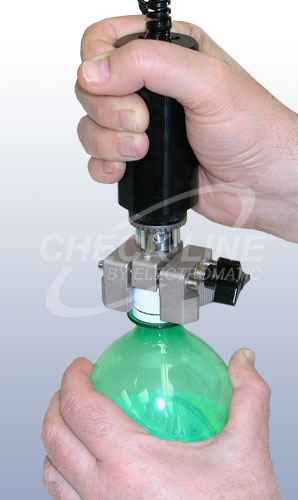

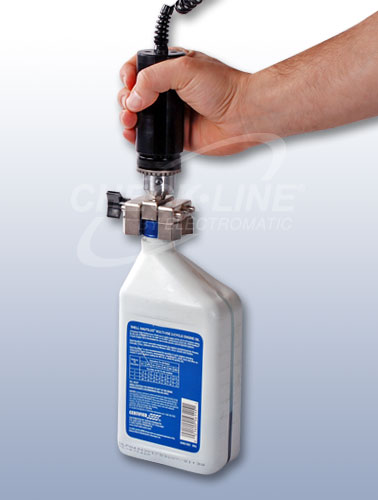

The CAP-TT03 is designed to measure the open and closure torque on bottles, vials, jars and more. This portable instrument is ideal for odd-shaped containers that cannot be secured in traditional tabletop testers. Serrated jaws securely grip cap diameters to 1.55" / 39mm with the standard grip or 3.5" / 89mm with the optional larger grip. Measure Peak or real-time torque on the large backlit LCD display (clockwise and counter-clockwise directions). The CAP-TT03 is available in three capacities from 12 to 100 lbin (135 to 1150 Ncm).

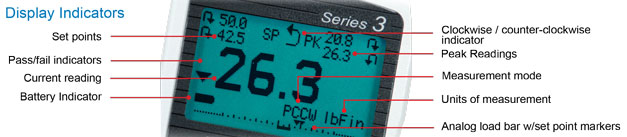

CAP-TT03 display The CAP-TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges? features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates single point data. One-click export to Excel allows for further data manipulation.

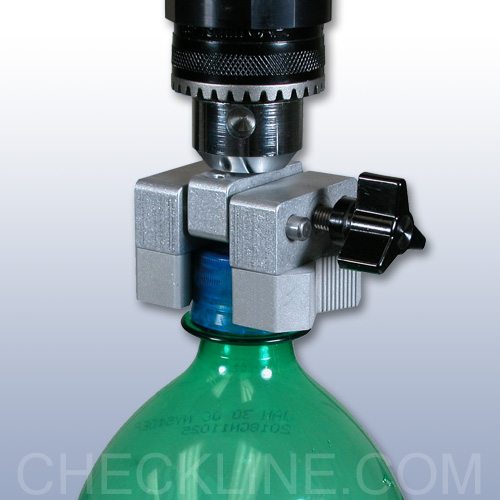

  • Included G1053 Cap Grip for cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm)
  • Cap Grip G1058 optionally available for Cap Diameters of 0.2" - 3.5" (5.1 - 89.0 mm)
  • High-speed 2,000 Hz sampling rate
  • Single Reading USB data output
  • Programmable set points with pass/fail indicators
  • Battery or AC operation
  • Configurable audio alarms and key tones
  • Live load bar graphs with set point markers
  • CE mark
  • Peak memory for clockwise and counter clockwise readings saved and displayed
  • Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.

Force Ranges - capacity/resolution


Related Products

CAP-TT01 cap torque tester
Click image for more info
Cap Torque Tester
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- USB, RS-232, Mitutoyo, and analog outputs
- 1,000-point data memory with statistics and outputs
TT03 Torque Tester
Click image for more info
Hand-Held Digital Torque Meter
- Peak memory for clockwise and counter clockwise readings saved and displayed
- High-speed 2,000 Hz sampling rate
G1058 Universal Cap Grip
Click image for more info
Universal Cap Grip


Accuracy:±0.5% of Full Scale
Sampling rate:2,000 Hz
Power:AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:lbFin, ozFin, kgFmm, Ncm (depending on model)
USB Output:Individual data point output by pressing DATA key. Configurable up to 115,200 baud.
Configurable Settings:Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload:150% of full scale (display shows "OVER" at 110% and above)
Weight:1.8 lb [0.8 kg]
Environmental requirements:40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty:3 Years
G1053 Cap Grip (Standard)0.65 - 1.55 in (16.5 - 39 mm)
G1058 Cap Grip (Optional)0.2 - 3.5 in (5.1 - 89.0 mm)

Complete Kit

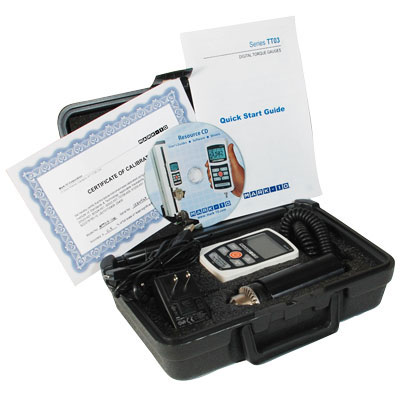

The CAP-TT03 is supplied as a complete kit including the force display with torque sensor, G1053 cap grip, universal AC adapter, battery, chuck key, quick-start guide, USB cable, basic data xfer software and NIST traceable calibration cert if a fitted carrying case.


Buy Now

Item Description Price
Hand-held Cap Torque Tester, 12 lb-in / 140 kg-mm / 135 N-cm - MTT03C-12
Hand-held Cap Torque Tester, 50 lb-in / 580 kg-mm / 570 N-cm - MTT03C-50
Hand-held Cap Torque Tester, 100 lb-in / 1150 kg-mm / 1150 N-cm - MTT03C-100
Upgrade CAP-TT03 Kit to supply G1058 Grip instead of the standard grip G1053
Upgrade Calibration Cert with 10 Data Points
ISO-17025 Calibration & Certification for Cap Torque Tester
Table Top Stand For 3i, 5i, 7i - AC1008
Cap Grip with diameter, range: 0.2 - 3.5in / 5.1 - 89.0mm
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
