CAP-TNP Digital Cap Torque Tester

TNP Cap Torque Tester
Click images to enlarge.
4 Ranges up to 88 lb-in
Sample Diameters up to 7.5" (190 mm)

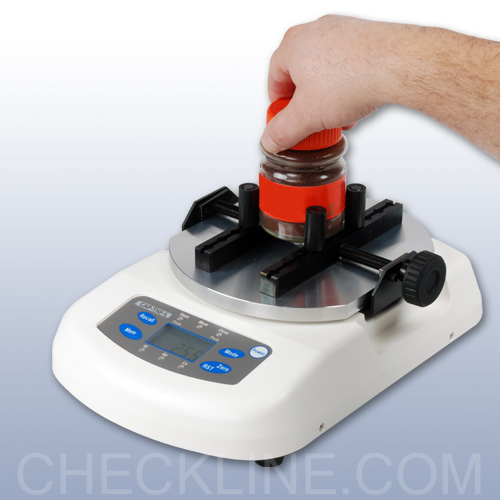

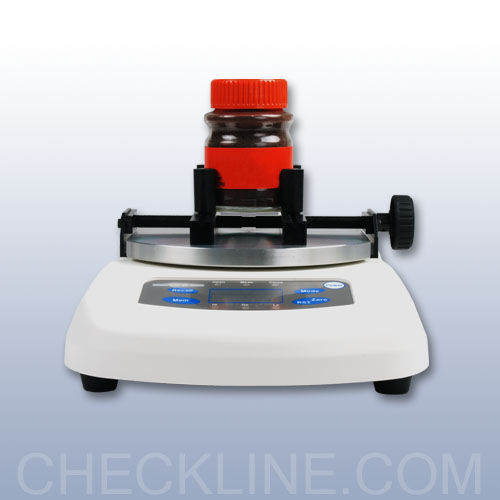

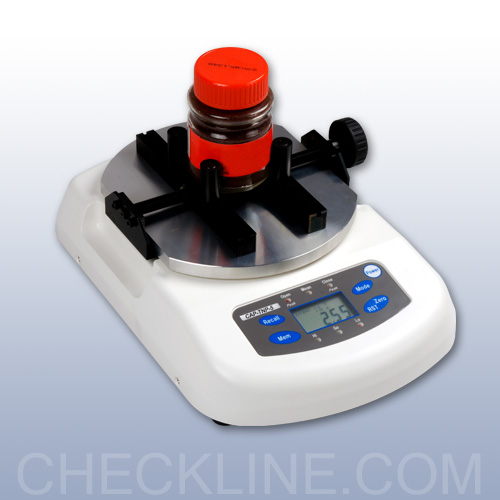

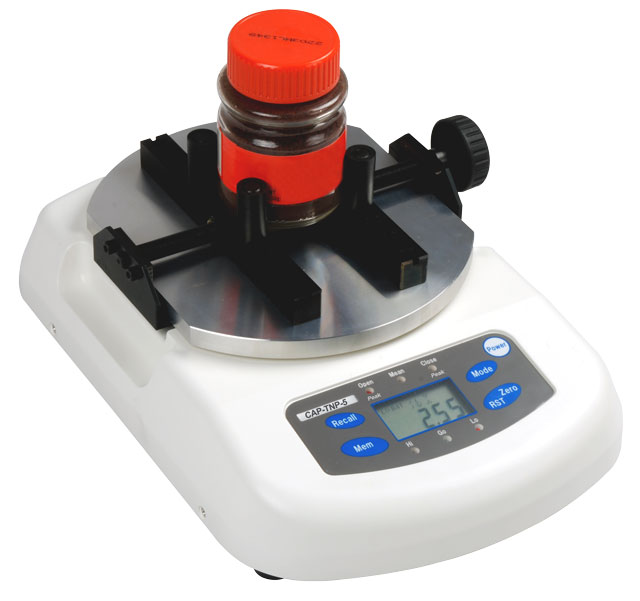

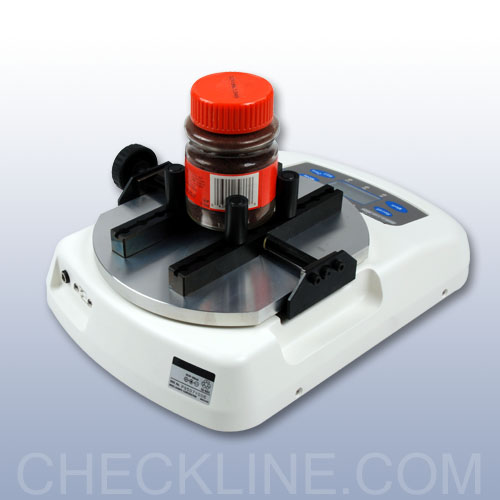

The new CAP-TNP torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.

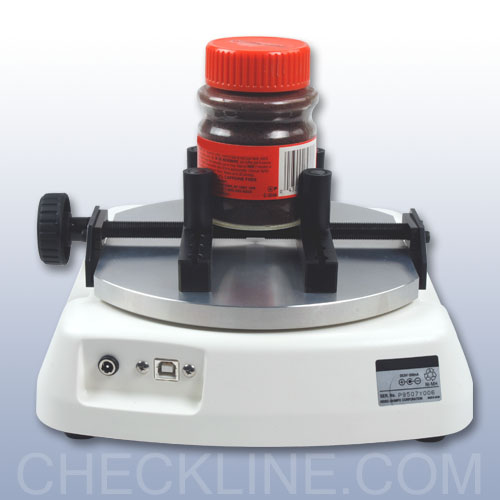

The CAP-TNP torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed.

The CAP-TNP is a portable device powered with internal rechargeable batteries or through an AC Adpater/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.

The CAP-TNP includes free software to analyze your measurement data. The software is Windows 7 compatible and requires Microsoft Excel.

Features

  • ±0.5% F.S. Accuracy

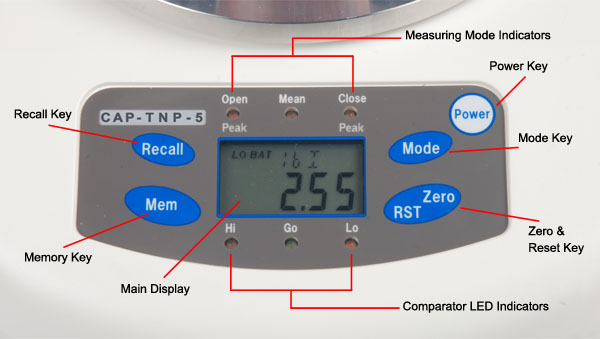

  • Includes Hi/Go/Lo Limits and LED Indicators
  • Displays Torque values in, lb-in, Kgcm and Nm, Ncm
  • USB interface including FREE Digitorq Software
  • Captures Peak Opening, Peak Closing and Average torque values (CCW, CW)
  • Three (3) models offered covering small, medium and large sized containers
  • One touch operation, retains up to 1000 measurements in memory
  • Easy to read L.C.D.
  • Rechargeable NIMH batteries and / or Universal AC adapter
  • Small foot print, compact, space saver design
  • Open Mode:
    Max value when opening
    [CCW torque direction]
  • Close Mode:
    Max value when closing
    [CW torque direction]
  • Average Mode:
    Continuous torque values in real time
  • Includes Traceable Calibration Certificate
  • CE Certified
  • 2 Year Warranty

Torque Ranges

Model Capacity Resolution
CAP-TNP-0.5 0-4.425 Lbf-in
0-0.500 Nm
0-50.00 Ncm
0-5099 gcm
0.001 Lbf-in
0.001 Nm
0.01 Ncm
1 gcm
CAP-TNP-2 0-17.70 Lbf-in
0-2.000 Nm
0-200.0 Ncm
0-20.39 Kgcm
0.01 Lbf-in
0.001 Nm
0.1 Ncm
0.01 Kgcm
CAP-TNP-5 0-44.25 Lbf-in
0-5.000 Nm
0-500.0 Ncm
0-50.99 Kgcm
0.01 Lbf-in
0.001 Nm
0.1 Ncm
0.01 Kgcm
CAP-TNP-10 0-88.5 Lbf-in
0-10.00 Nm
0-1000 Ncm
0-102.0 Kgcm
0.1 Lbf-in
0.01 Nm
1 Ncm
0.1 Kgcm

Typical Torque Values (LB-IN)

Cap dia.
in mm
Phenolic/ Urea
Cap On Glass
Phenolic/Urea
Cap on Plastic
PP/PE Cap
on Glass
PP/PE Cap
on Plastic
Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque
15 8 4 6 3 12 7 8 4
18 9 5 7 4 13 8 9 5
20 10 5 8 4 15 9 10 5
22 11 6 9 5 17 10 11 6
24 12 6 10 5 18 11 12 6
28 14 7 12 6 21 12 14 7
33 18 9 15 7 24 14 17 8
38 20 10 17 7 29 17 19 9
43 22 11 18 9 33 20 22 11
48 24 14 20 10 26 22 24 12
58 28 14 24 12 44 26 29 14
70 35 18 28 14 52 32 35 17
89 45 22 36 18 65 40 45 22
100 50 25 40 20 75 38 50 25

Dimensions

Cap Torque Tester dimensions

Related Products

CAP-TT01 cap torque tester
Click image for more info
Cap Torque Tester
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- USB, RS-232, Mitutoyo, and analog outputs
- 1,000-point data memory with statistics and outputs
DTXS Cap Torque Tester
Click image for more info
Digital Cap Torque Tester
- Test cap loosening (CCW) and tightening (CW) torque
- 1000 data point memory capacity

Complete Kit

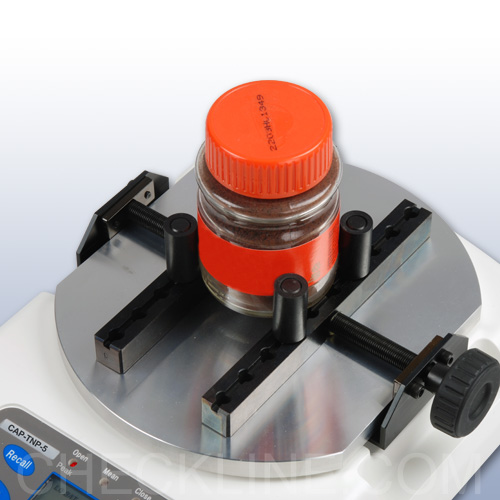

CAP-TNP includes, tester, set of four - 1" (30mm) gripping pegs, AC adapter, calibration certificate, USB Cable with CD-Software and instruction manual
CAP-TNP Cap Torque Tester is supplied as a complete kit

Specifications

Overload protection150%
Sample Diameter Range (min to max)0.39" to 7.48" (10 - 190 mm)
Overload displayDisplay "OVR" on LCD (blinking on/off)
Main display4-digit LCD display Character height 12mm
Sub display3-digit LCD display Character height 7mm
Comparator displayHi, GO, Lo LED Indicators
Accuracy± 0.5% full scale
Open modeMax vale when opening. Displays max counter clockwise torque.
Close modeMax value when closing. Displays max clockwise torque
Average modeReal time display. Displays max torque in real time
Display Update Time1, 2, 4 or 8 updates/second, user-set
Sampling Rate1000 times/second
Memory data number1000 data points (max)
Statistic processAverage value, max value and min value
Data outputUSB 1.1 / RS232
PC softwareDigitorque software
AccessoriesUSB cable, AC adapter, 30mm chuck pin (4pcs), Manual
PowerBuilt in nickle hydride battery or Auto-ranging AC adapter (AC100 - 240V)
Dimensions
L x W x H
12.60" x 8.94" x 4.96"
(320 x 227 x 126mm)
Weight8 kg (17.62 lbs)
CAP-TNP-10: 12.5 kg (27.53 lbs)
Operation Temperature32 - 104°F (0 - 40°C)
Battery Life8 hours after full charge
Battery Recharge TimeMax. 16 hours
Battery TypeNiMH
Country of OriginChina
Warranty2 Years

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Cap Torque Tester 4.4 lb-in / 50 Ncm Capacity
$1,245.00
Cap Torque Tester 17.7 lb-in / 200 Ncm Capacity
$1,245.00
Cap Torque Tester 44 lb-in / 5 Nm Capacity
$1,245.00
Cap Torque Tester 88 lb-in / 10 Nm Capacity
$1,245.00
Accessories
TNP-TP30
Set of 4 standard replacement pegs, 30mm height
$150.00
TNP-TP50
Set of 4 extended pegs, 50mm height
$185.00
FG-09V120UC
Spare / Replacement Power Adapter
$40.00
TNP-BATT
Spare / Replacement Battery for CAP-TNP
$99.00
