WT3-201 Wire Pull Tester

Made in USA

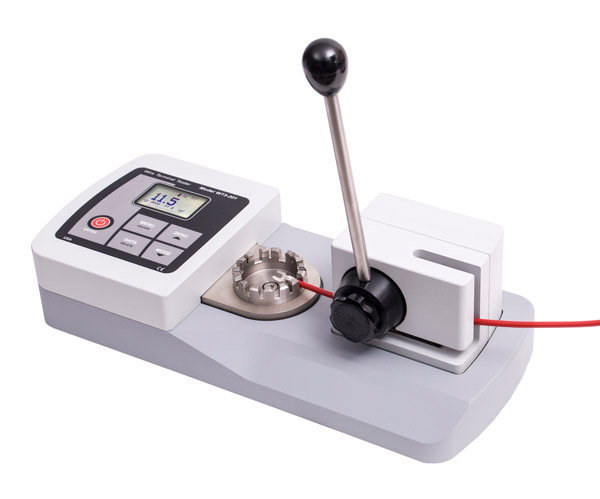

The WT3-201 is an integrated benchtop wire terminal tester for applications up to 200 lbF (1,000 N).
Click images to enlarge.

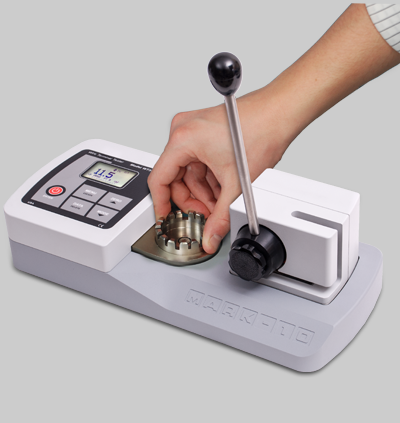

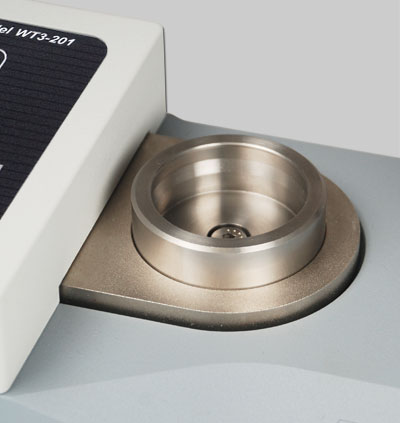

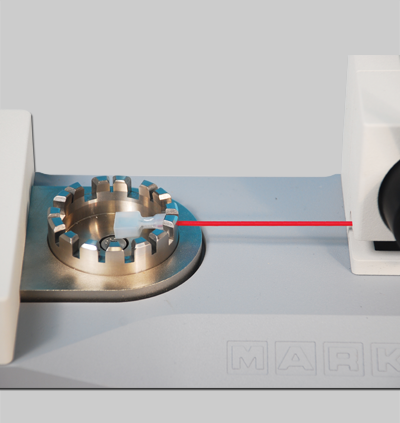

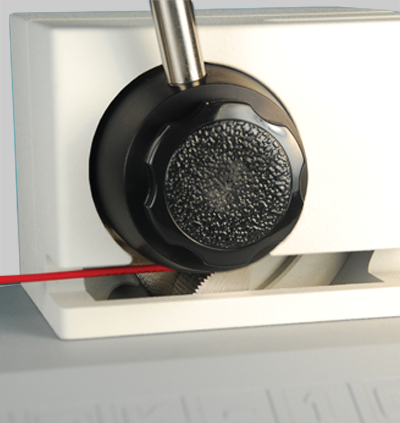

3 Year WarrantyThe WT3-201 Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications, eliminating the need to purchase any additional grips, fixtures or accessories. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]).

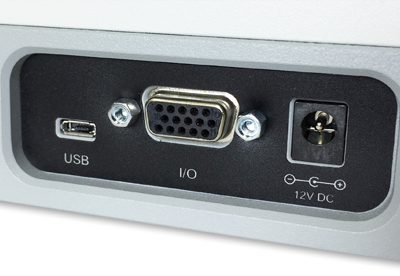

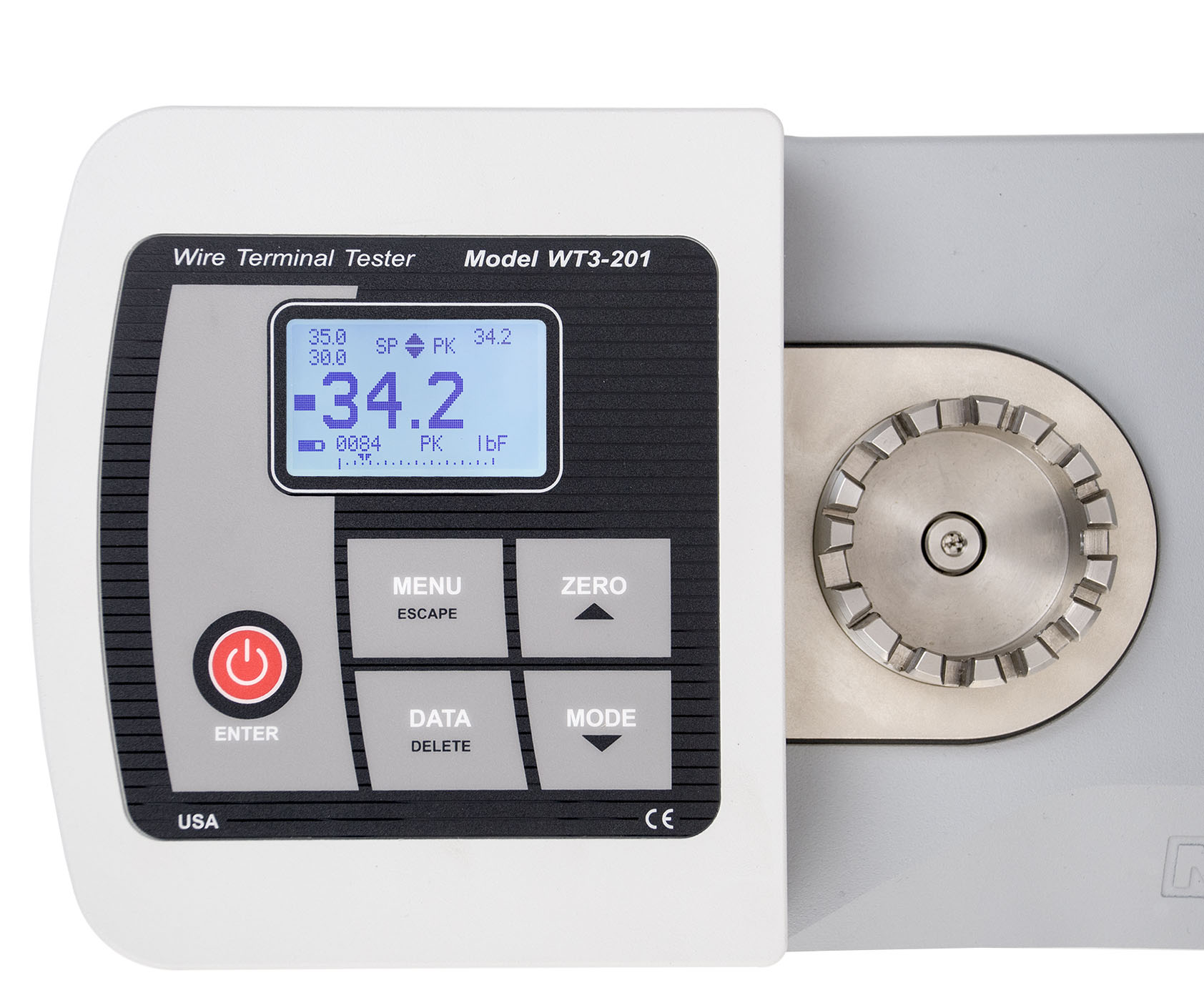

A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232 or analog outputs.

On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.

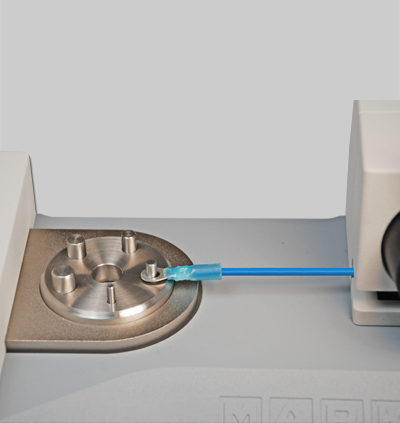

An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.

The WT3-201 is an alternative to the Daniels PT-150H Wire Crimp Pull Tester.

Features

  • Includes NIST Traceable Calibration Certificate (without data)
  • Optional Long-Form Cert with data available, order "CERT"
  • Automatic output / data storage / zeroing upon sample break helps automate testing processes
  • Measures real-time and peak force values
  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • 1,000-point data memory with statistics and outputs
  • Programmable set point indicators and outputs for pass/ fail determination
  • Configurable audio alarms and key tones
  • Ergonomic lever operation produces 200 lbF [1000 N]
  • Password protection prevents unauthorized changes
  • High-speed 7,000 Hz sampling rate accurately captures peak force values
  • Mounting holes for bench mounting
  • CE Certified

Related Products

Motorized Wire Terminal Tester
Click image for more info
Motorized Wire Pull Tester
Motorized Wire Terminal Pull Tester
Click image for more info
Motorized Wire Terminal Tester
- LCD display with UP, DOWN, STOP and emergency stop buttons and soft keys
- Integrated travel limit switches
- 3 Year Warranty
- CE Certified
Click image for more info

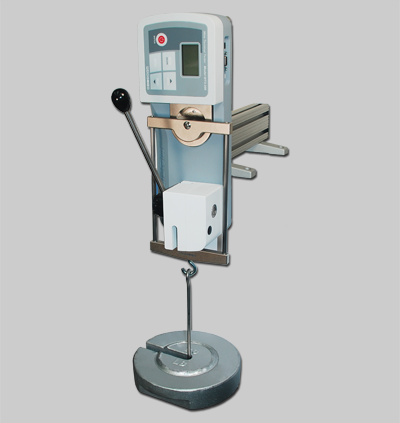

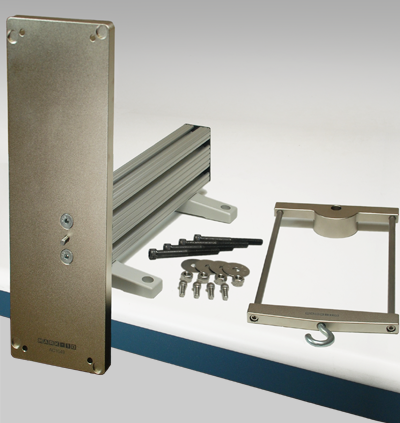

Calibration Kit for WT3-200 Wire Pull Tester
Click image for more info

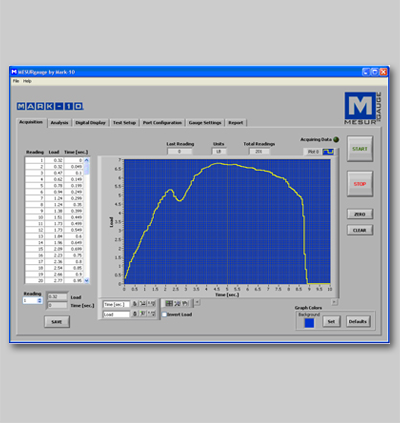

MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click

Dimensions

Complete Kit

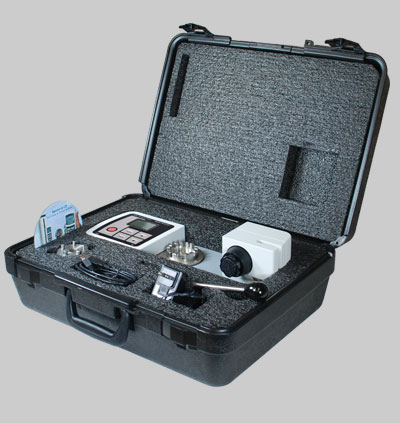

Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURLite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration without data (upgrade to Long Form Cert with Data by ordering "CERT".

Carrying Case is shown is sold separately
Part number WT3004 - $250.00

Specifications

Capacity x Resolution200 x 0.1 lbF, 100 x 0.05 kgF, 1000 x 0.5 N
Accuracy±0.2% of full scale
Wire diameter rangeAWG30 - AWG 3 [0.03 - 0.25 in (0.8 - 6.3 mm)]*
Minimum sample length6.5 in [165 mm], excluding termination
Maximum sample elongation1.15 in [29.2 mm]
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Sampling rate7,000 Hz
OutputsUSB / RS-232: Configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analog: ±1V DC, ±0.25% of full scale at capacity.
Configurable SettingsDigital filters, outputs, automatic shutoff, default settings, passwords, key tones, audio alarms, backlight, calibration
Safe overload150% of full scale (display shows "OVER" at 110% and above)
Weight16.1 lb [7.3 kg]
Warranty3 years (see individual statement for further details)
Included itemsUniversal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge DEMO software, and user's guide), NIST-traceable certificate of calibration
*Including insulation. To ensure the wire sample will fit into the WT3-201, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination.
