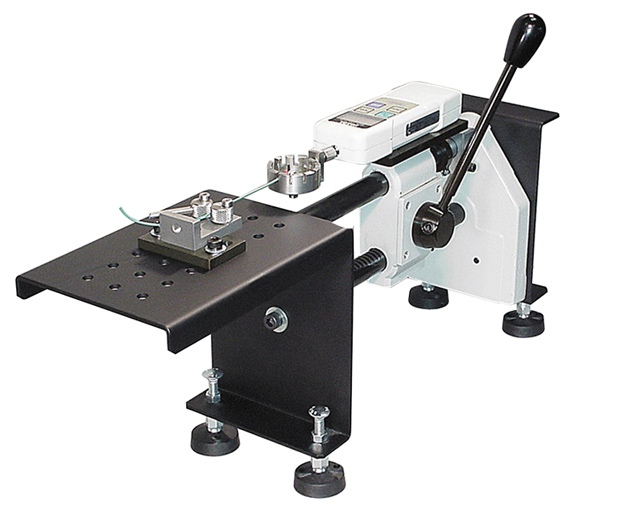

The WTT-HD wire terminal crimp tester is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests up to 220lbs / 50Kg / 500N. The system includes test stand and DST-220 force gauge.
The WG-3 multi wire terminal grip has 12 wire gauge apertures on the turret. Locate the appropriate size, lock in position and you’re ready to test.
The system consists of the following:
Test Stand: NLH-220
Force Gauge: DST-220
Slotted Terminal Grip: WG-3
Cam Cable Grip: WG-300A
- Real time and peak mode (selectable)
- 220lb Capacity
- Includes NIST-Traceable calibration certificate
- lb, kg & Newton units are selectable
- 2 Year Warranty
- For wires up to 8mm OD
| Measuring Range | 0-100 Kg / 0-220 lbs / 0-1000N |
| Accuracy | ±0.2% ±1 LSD |
| Resolution | 0.01 Kg / 0.1 lbs / 0.1 N |
| Maximum Travel | 2" |
| Overload Protection | 200% of F.S., Display flashes beyond 105% of F.S. |
| Output | RS-232, Mitutoyo Digimatic and ±1 VDC analog output |
| Power | Internal NiCad batteries or AC adapter |
| Warranty | 2 years |
