TI-CMXDL Through Paint Ultrasonic Thickness Gauge with Data Logging
Click images to enlarge.

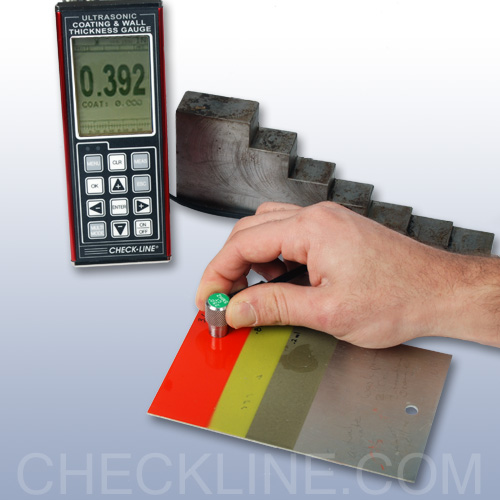

The Check-Line TI-CMXDL accurately measures coating and wall thickness on a wide range of materials. Five selectable measuring modes enable the operator to precisely measure wall thickness, coating thickness and locate corrosion and pitting—without removing the coating.

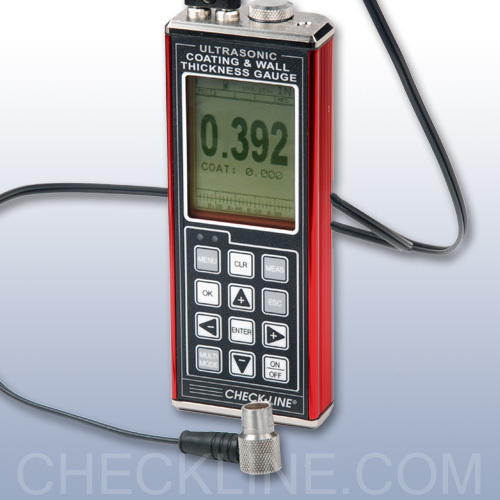

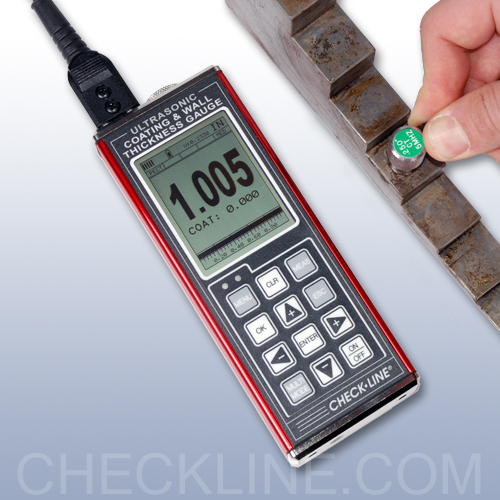

Oversized graphic LCD is backlit and features an easy to navigate menu allowing quick access to gauge settings and options.

Five user-selected operating modes are included:

Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.

Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.

Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.

Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)

Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.013 to 2.540 mm). Range will vary slightly depending on the coating.

Special Features of TI-CMXDL Data-Logger

  • Built-in memory with RS-232 output for transferring data to a Printer or PC

  • Includes Datacomm Data Transfer & Analysis Software and RS-232 Cable, FREE

  • Data Files can be user-set for a "grid type" structure where data is formatted in Rows & Columns or a "sequential" file where all data appears in a single column

  • Each "grid type" File can be set for up to 999 rows by 52 columns

  • Each "sequential" File can be set for up to 512 rows by 1 column

  • Each File can be set for "data only" or as "data plus B-scan Graphic". Memory Capacity is over 225,000 data values or over 16,000 data values with B-scan


  • Includes NIST-Traceable Calibration.
  • Auto probe recognition with Auto Zero or Manual Zero.
  • Wide variety of dual-element probes can be used for nearly any application.
  • Bar graph with user-set start end values providing highest resolution around the target thickness value.
  • Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
  • TI-CMX-H for surface temps up to 300°F/150°C. Optional hi-temp probes for higher surface temperatures offered
  • Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42–50 db).
  • 64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
  • Display Hi/Lo Alarm Limits with audible and visual indicators.
  • Metal housing provides strong protection against harsh environments.
  • Measures Coatings up to 0.100"
  • IP 65 Rated
  • CE Certified
  • Warranty: Gauge: 2 Years Probes: 90 Days
  • Made in USA

High Speed Scan Mode & B-Scan Mode

Hi-Speed Scan Mode B-Scan Mode
High Speed Scan Mode B-Scan Mode
Scan Mode measures 64 times per second, displaying the max and min reading measured during the scan interval. Sample rate is 200/sec when coating measurement is off. The B-Scan displays a time based cross section view of test material of the contour of the blind, or underside of a pipe or tank application. the B-Scan view draws at a rate of seven seconds per screen from right to left.

Related Products

TICC-MVX Protective Holder for Ultrasonic Gauges - F-149-0001
Click image for more info
Protective Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Includes wrist & shoulder straps
Certified Steel Test Blocks
Click image for more info
Certified Steel Test Blocks
- Includes NIST Traceable Calibration Certificate
- Precision Machined and Finished
- Includes Storage Box
SB4 & SB6 Uncertified Steel Test Blocks
Click image for more info
Ultrasonic Test Blocks without certification
- Fabricated from 1018 Steel or 304 Stainless Steel
- ISO Calibration OPTIONAL
CF12 Sound Safe Ultrasonic Couplant
Click image for more info
Coupling Fluid
- Temp Range: 0 - 200 °F, -18 - 93 °C
Click image for more info
High Temperature Coupling Fluid
- Temperature Range:
0° to 600° F
-18° to 315° C
- Supplied in 2oz tube
High Temperature Coupling Fluid - CF-4H-950F
Click image for more info
High Temperature Coupling Fluid
- Temperature Range: 600° to 950° F (316° to 510° C)
- Very slow drying; allows for long-term coupling without reapplication
ultrasonic trandsducer holder v-block
Click image for more info
Ultrasonic Transducer Holder
Click image for more info
50 Foot Underwater Probe / Cable Assembly
- 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.
Click image for more info
Software for Thickness Gauges

Complete Kit

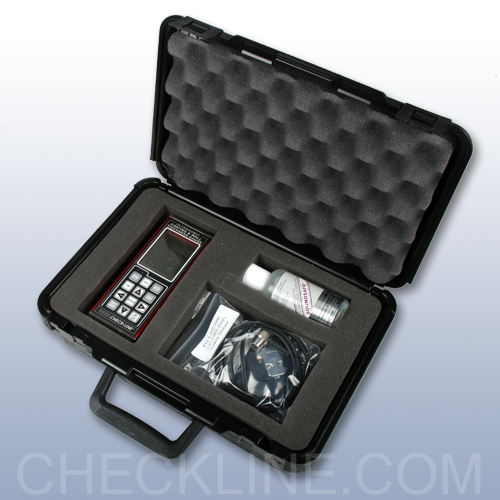

The TI-CMXDL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, operating manual, Software, RS-232 output cable, RS-232 to USB adapter, all in a foam-fitted carrying case.

Measuring Limits

Minimum Radius for Convex Surfaces 0.350" (8.89 mm)
Minimum Radius for Concave Surfaces 3" (76.2 mm)
Minimum Headroom 1" (25.0 mm)
Minimum Sample Diameter 0.150" (3.8 mm)
Minimum Substrate Thickness - F NA
Minimum Substrate Thickness - NFe NA


Range in Steel:Pulse-Echo Mode: Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters)

Echo-Echo Mode: Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness
Range in Coating Only Mode0.0005" - 0.1000" / Resolution: 0.0001"
(0.013 - 2.540 mm / Resolution: 0.001 mm)
Max Coating0.100"
Resolution:.001 inches (0.01mm)
Velocity Range:.0492 to .3936 in./ms
1250 to 9999 meters/sec
Units:Inch or mm
Measurement Modes:- Pulse-Echo (corrosion mode)
- Pulse-Echo Coating (Corrosion w/o coating)
- Echo-Echo (thru-paint)
- Temp Comp (auto adjust for material temp)
- Coating Only (Ultrasonic Coating Gauge)
Transducer Types:Dual Element (1 to 10 MHz).
OutputRS-232 for upload/download of setups
Memory capacity:TI-CMX: None
TI-CMXDL: over 200,000 measurements
Power Source:Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life:Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off:After 5 minutes of non-use
Display:1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard:Membrane switch with twelve tactile keys

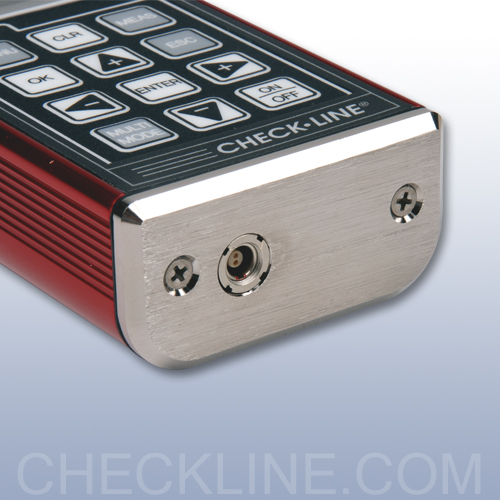

Case:Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C)
Special high temperature model TI-CMXDL-H is available for 300°F/150°C and optional probes are offered for higher surface temperatures
Weight, net:383 grams
Dimensions:63.5 W x 165 H x 31.5 D mm
Warranty:2 Year Warranty for Gauge (90 days for probe)
Certification:CE Approved, Factory calibration traceable to national standards
