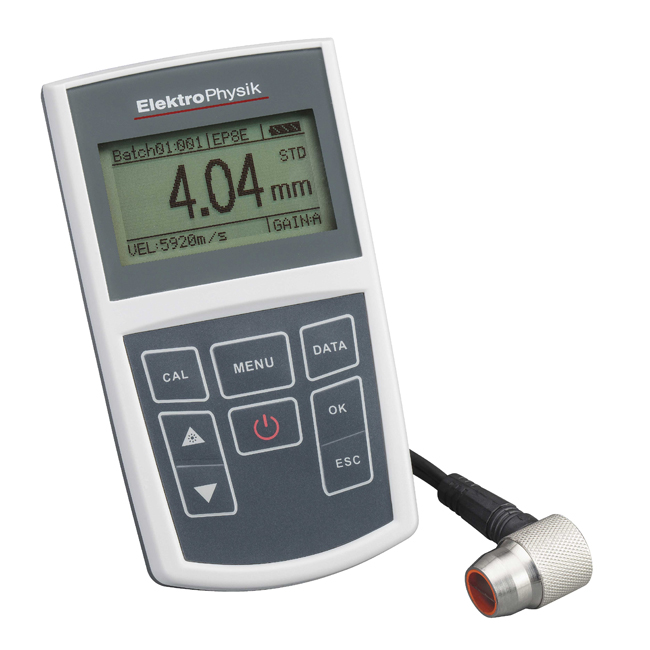

The MiniTest 420 is a basic straight forward ultrasonic thickness testing gauge for simple quick measurements. The MiniTest 420 incorporates a calibration block for zero adjustments and quick calibration.
Sturdy and accurate ultrasonic thickness gauge based on the ultrasonic pulse run-time method.
6 ultrasonic probes with frequencies ranging between 2 and 10 MHz in different designs offer a broad spectrum of applications and thickness measurements ranging from 0.65 mm to 500 mm. A high temperature ultrasonic probe is also available, designed for measurement of hot materials with temperatures of up to 350 °C.
Uninterrupted scanning of a part for thinning is possible at the minimum mode.
Sturdy and accurate ultrasonic thickness gauge based on the ultrasonic pulse run-time method.
6 ultrasonic probes with frequencies ranging between 2 and 10 MHz in different designs offer a broad spectrum of applications and thickness measurements ranging from 0.65 mm to 500 mm. A high temperature ultrasonic probe is also available, designed for measurement of hot materials with temperatures of up to 350 °C.
Uninterrupted scanning of a part for thinning is possible at the minimum mode.
- Includes Factory "Works" Calibration Certificate.
- NIST Traceable Calibration Certificate optionally available at additional cost
- Suitable for measurement of various materials including steel, stainless steel, aluminum, glass, plastics (PS/PE)
- Adjustable units inch/mm
- Resolution of 0.001" (0.01 mm)
- Automatic identification of probes
- Uses Pulse-Echo Principle of Ultrasonics
- Sensitivity can be set to "Auto" or "Manual"
- Several Transducers are optionally available including one for High Temperature materials (350 °C)
- Warranty 1-Year
- Made in Germany
| Measuring Range | Pulse Echo: With standard transducer U5.0: 0.8 - 350 mm (0.03 - 13.8") (For ranges of other transducers see table) |
| Resolution | 0.01mm (0 – 99.9 mm), 0.1(> 100 mm) |
| Display | 128 x 64 pixels with backlight |
| Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec |
| Probe | Standard transducer U5.0: 8mm (0.31") (For diameter of other transducers see table) |
| Operation Temperature | -20 to 50°C (-4 to 122°F) |
| Battery Type | Two AA batteries |
| Battery Life | more than 80 hours under continuous operation |
| Weight | approx. 6.70 oz (190 g) |
| Size | 5.1 x 2.9 x 0.94" (130 X 73 X 24 mm) |
| Accessories Included | U5.0 5 MHz standard transducer, Operating instructions, two 1.5V AA batteries, Plastic carrying case, Coupling liquid (200 ml), |
| Housing Protection | IP40 |
| Type | Diameter | Frequency | Measuring Range | Material Temperature | Application |
|---|---|---|---|---|---|
| U5.0 | 8 mm 0.31" | 5.0 MHz | 0.8 – 350 mm 0.031 - 13.8" | -12 to 60 °C | on flat surfaces or huge curvature radii |
| U2.0 | 12 mm 0.47" | 2.0 MHz | 2.0 – 500 mm 0.079 - 19.7" | -12 to 60 °C | rough surfaces such as cast iron |
| U7.5 | 6 mm 0.24" | 7.5 MHz | 0.65 - 50 mm 0.026 - 1.97" | -12 to 60 °C | thin w all thickness and small curvature radii |
| U10.0 | 4 mm 0.16" | 10.0 MHz | 0.65 – 20 mm 0.026 - 0.79" | -12 to 60 °C | small tube diameters |
| U5.0HT | 13 mm 0.51" | 5.0 MHz | 3.0 – 200 mm 0.12 - 7.87" | -12 to 350 °C | for temperatures up to 350 °C |
| Item | Description | Price | ||
|---|---|---|---|---|
MiniTest 420 Ultrasonic Thickness Gauge, Supplied as a complete kit including 5 Mhz probe - TRA/005420 | $1,575.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
85-804-0650 | U5.0 standard transducer, 5.0 MHz frequency, diameter 8mm , measuring range 0.8…350mm | $315.00 | ||
85-804-0652 | U2.0 transducer, 2.0 MHz frequency, diameter 12mm, measuring range 2.0…500mm | $365.00 | ||
85-804-0651 | U7.5 transducer, 7.5 MHz frequency, diameter 6mm, measuring range 0.65…50mm | $315.00 | ||
85-804-0654 | U10.0 transducer, 10.0 MHz frequency, diameter 4mm, measuring range 0.65…20mm | $620.00 | ||
85-804-0653 | U5.0 High Temperature transducer, 5.0 MHz frequency, diameter 13mm, measuring range 3.0…200mm, max. surface temperature 350°C | $530.00 | ||
