STE4 Electronic Stethoscope

Made in UK
Click images to enlarge.

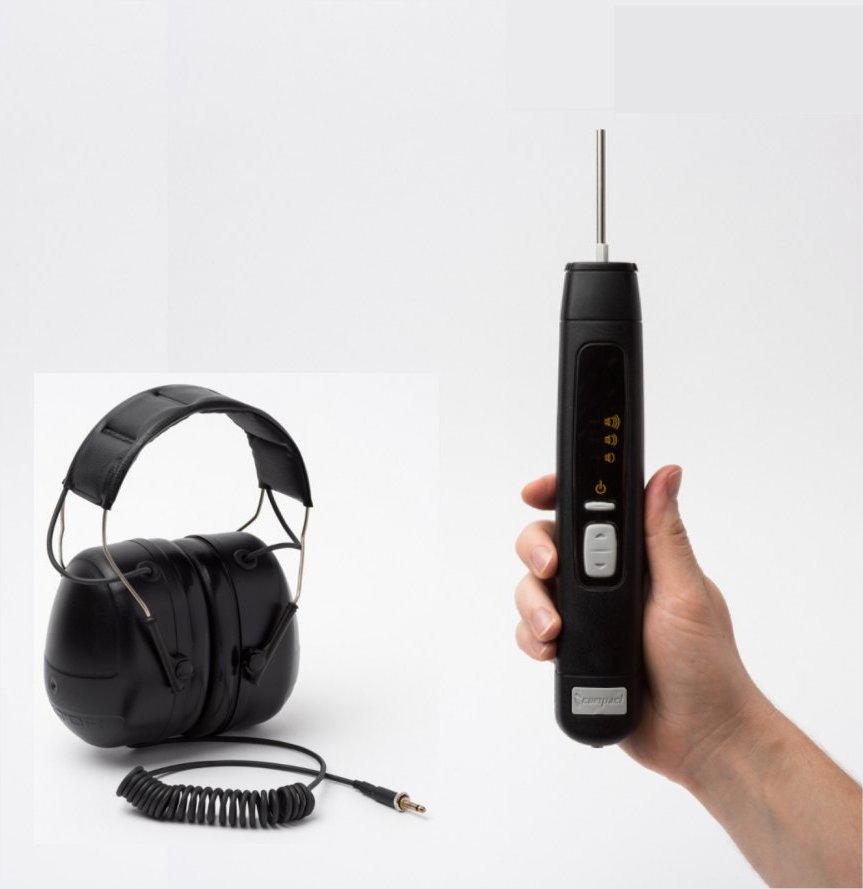

The STE4 electronic stethoscope is designed to help locate the source of excess bearing and machine noise easily at low cost. It is an ideal easy to use listening device for mechanical generated noise in all types of applications.

The 3.5mm jack socket tape output can also be fed into an audio tape recorder to store the data for either further analysis or as a reference for future comparison.

An ideal easy-to-use listening device for mechanically generated noise in all types of applications.

Maintenance Tool
The new STE3 is ideal for checking abnormal operational machinery noise levels when setting up routine maintenance plans.

Recording Data
The jack socket output is designed to be fed into an Audio Tape Recorder to store data for further analysis.

Contact Probes
Two lengths of contact probe are supplied, 70mm for normal use and 300mm to give access to more difficult locations.

Headset
A high quality Peltor headset is included, designed to minimise background sounds in high noise environments.

Features

  • Piezo Transducer
  • Peltor headset
  • Two probes - 70mm & 300mm
  • Digital volume control - 32 steps
  • 4x AAA batteries for 30 hrs continuous use (typical)
  • Jack socket output for recording

Specifications

Frequency Range30Hz - 15KHz
Ambient Temp-10 to +45°C
Output VolumeDigitally adjustable in 32 steps
Battery4 x AAA Alkaline cells
Battery lifeApprox. 30 Hours
Dimensions300 x 40 x 40mm
Probes1 x 300mm
1 x 70mm
Headphones8 Ohm
Probes300mm and 70mm

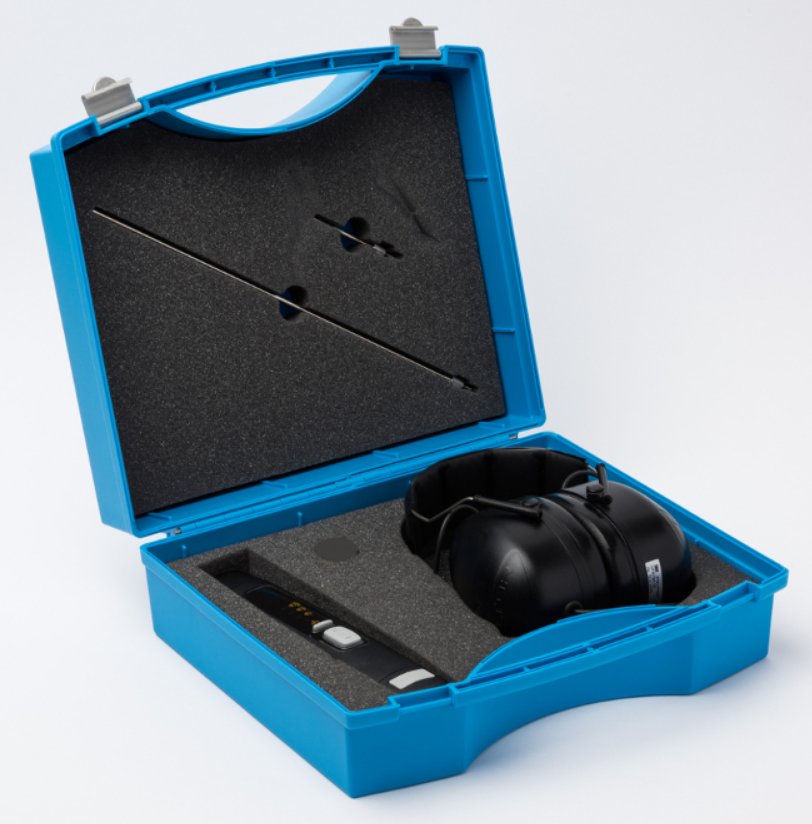

Complete Kit

Includes STE4 gauge, Peltor headset, 70mm probe, 300mm probe and batteries in a custom carrying case.

Related Products

STE3 Electronic Stethoscope
Click image for more info
Electronic Stethoscope
- Ear defender headset
- Two probes - 70mm & 300mm
- Digital volume control - 32 steps
air leak detector ldt-1
Click image for more info
LDT
Ultrasonic Leak Detector
- Detect leaks larger than 0.1 mm ⌀
- Optional Parabolic Reflector for long-range sensing of 5-20 meters (15 - 60 ft)
- Fast and Easy to use

Buy Now

Item Description Price
Electronic Stethoscope with Peltor Headphones including 70mm & 300mm probes
$699.00
Accessories
STE-300MM
Replacement 300 mm Probe
$30.00
STE-70MM
Replacement 70 mm Probe
$25.00
STE-CC
Replacement Carrying Case
$65.00
