TTC Digital Torque Tool Tester

TTC unit only
Click images to enlarge.

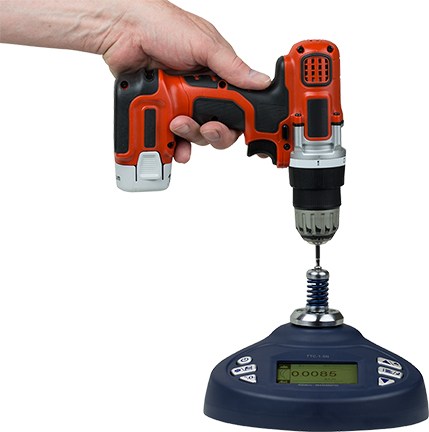

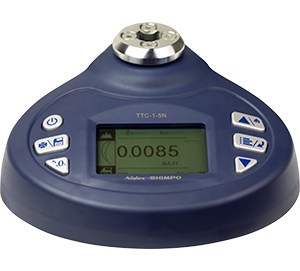

The TTC Series provides exceptional accuracy for measuring torque on various products including torque wrenches, manual screwdrivers, electric screwdrivers, pneumatic screwdrivers and other torque controlled power tools.

The TTC's provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC's have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes.

The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torque’s current position compared to the full scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results.

Every tester comes standard with USB and RS-232 outputs. The TTC's software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.

These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments.

Features

  • Calibration certificate with data
  • Strong, light-weight, compact aluminum enclosure
  • Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
  • Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication
  • Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
  • Come standard with USB or RS232 communication output for data upload
  • 1000 memory record storage plus software provides easy data transfer
  • 0.3% FS accuracy provides a standard for checking tools on ranges up to 590 ft-lb (800 N-m)
  • Operation via the rechargeable battery or the AC
  • Rundown adapter for power tool testing on certain models are available.

Torque Capacity

ModelCapacityMeasuring RangeTool Socket Size
TTC-I-22 N-m (1.48 ft-lb)0.5% - 100% Capacity1/4" & 1/2"
TTC-I-55 N-m (3.68 ft-lb)0.5% - 100% Capacity1/4" & 1/2"
TTC-I-1010 N-m (7.38 ft-lb)0.5% - 100% Capacity1/4" & 1/2"
TTC-I-2020 N-m (14.8 ft-lb)0.5% - 100% Capacity3/8" & 1/2"
TTC-I-5050 N-m (36.8 ft-lbf)0.5% - 100% Capacity3/8" & 1/2"
TTC-I-100100 N-m (73.8 ft-lbf0.5% - 100% Capacity3/8" & 1/2"
TTC-E-200200 N-m (148 ft-lb)0.5% - 100% Capacity3/8" & 1/2"
TTC-E-500500 N-m (368 ft-lb)0.5% - 100% Capacity3/4"
TTC-E-800800 N-m (590 ft-lb)0.5% - 100% Capacity3/4"

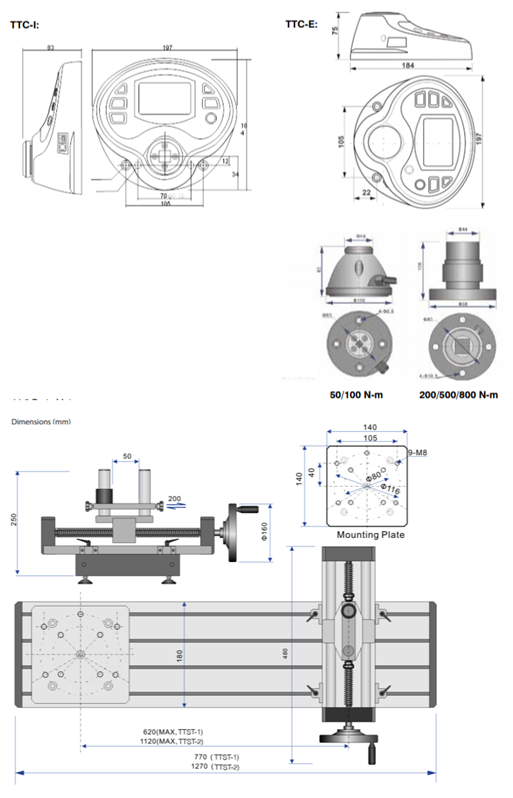

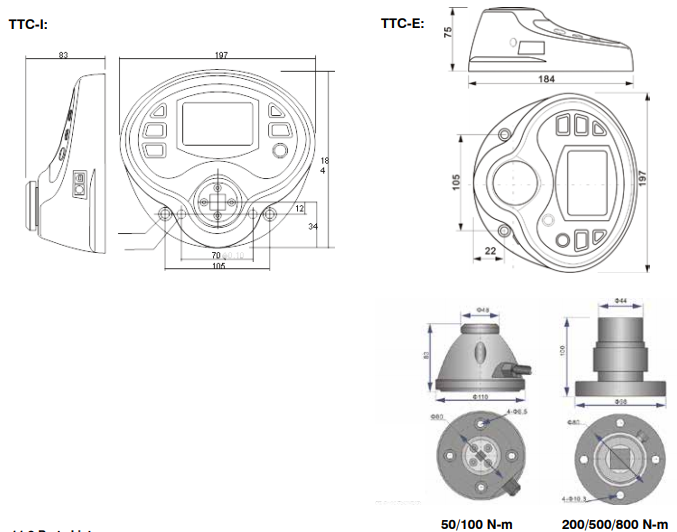

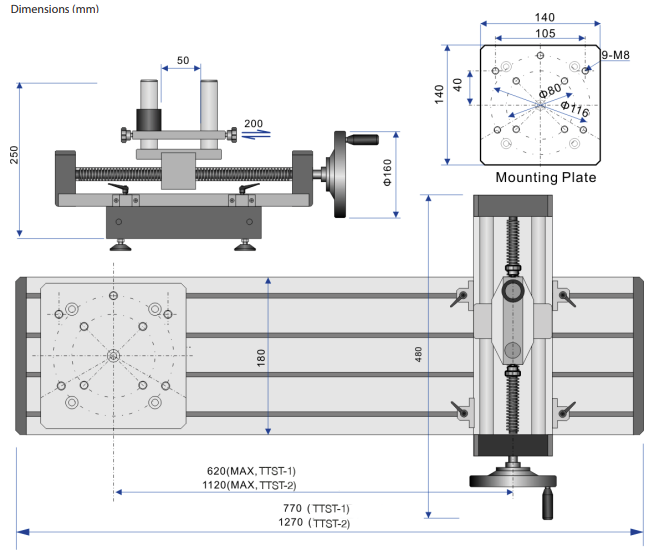

Dimensions

Specifications

Accuracy± 0.3% of reading over 5 to 100% capacity
Units of MeasureN-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Measure ModesTrack, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
Tool Socket SizeTTC-2/5/10: 1/4” & 1/2” (6.3 & 12.5 mm)
TTC-20/50/100/200: 3/8” & 1/2” (10 & 12.5 mm)
TTC-500/800: 3/4” (19 mm)
Overload Protection120% of Full Scale
Sampling Rate2000 Hz
Peak Capture Rate0.05 s
Display160* 128 Dot matrix backlit LCD
Display Update Rate10 times/sec
Memory1000 data
Set PointProgrammable High and Low Limits
Charger/AdapterUniversal USB charger, input 100 – 240 V ac 50/60 Hz
Operating
Temperature
14 to 104ºF (-10 to 40ºC)
Humidity Limit20 – 80% RH
Power3.6 V dc 1600 mAH Ni-MH
Battery LifeApprox. 16 Hours continuous on full charge
CertificationCE
Included
Accessories
USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector
(Ranges to 200 N-m only)
Optional AccessoriesRS-232 cable, Rundown adapters & Printer. Note: Software available for free at www.shimpoinst.com
Warranty1-Year

Downloads

Buy Now

Item Description Price
Integrated Sensor
Digital Torque Tool Tester, 2 N-m (1.48 ft-lb) Capacity, 1/4" & 1/2" tool socket size
$895.50
Digital Torque Tool Tester, 5 N-m (3.68 ft-lb) Capacity, 1/4" & 1/2", Tool Socket Size
$895.50
Digital Torque Tool Tester, 10 N-m (7.38 ft-lb) Capacity, 1/4" & 1/2" tool socket size
$985.50
Digital Torque Tool Tester, 20 N-m (14.8 ft-lb) Capacity, 3/8" & 1/2" tool socket size
$1,075.50
Digital Torque Tool Tester, 50 N-m, (36.8 ft-lbf) Capacity, 3/8" & 1/2" tool socket size
$1,102.50
Digital Torque Tool Tester; 100 N-m (885 in-lbf) Capacity, 3/8” & 1/2” tool socket size
$1,495.00

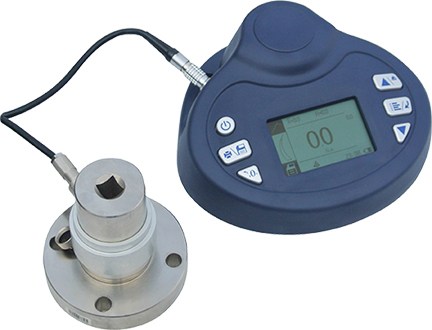

External Sensor
Digital Torque Tool Tester, External Sensor, 200 N-m (148 ft-lb) Capacity, 3/8" & 1/2" tool socket size
$1,795.50
Digital Torque Tool Tester, External Sensor, 500 N-m (368 ft-lb) Capacity, 3/4" tool socket size
$1.00
Digital Torque Tool Tester, External Sensor, 800 N-m (590 ft-lb) Capacity, 3/4" tool socket size
$2,065.50

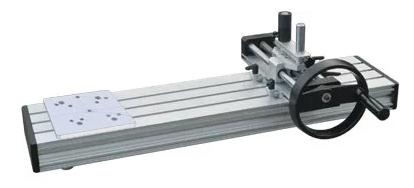

Test Stands
TTC Manually Operated Torque Test Stand; 24" (620 mm) Test Distance
$1,147.50
TTC Manually Operated Torque Test Stand; 44" (1120 mm) Test Distance
$1,237.50
Manually Operated Vertical Torque Test Stand with Rotational Base
$2,250.00
Accessories

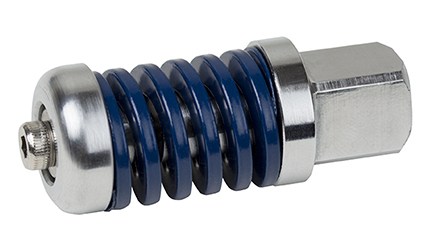

TTC-RD-2
