NTS Motorized Rotating Friction Torque Tester

Made in Japan

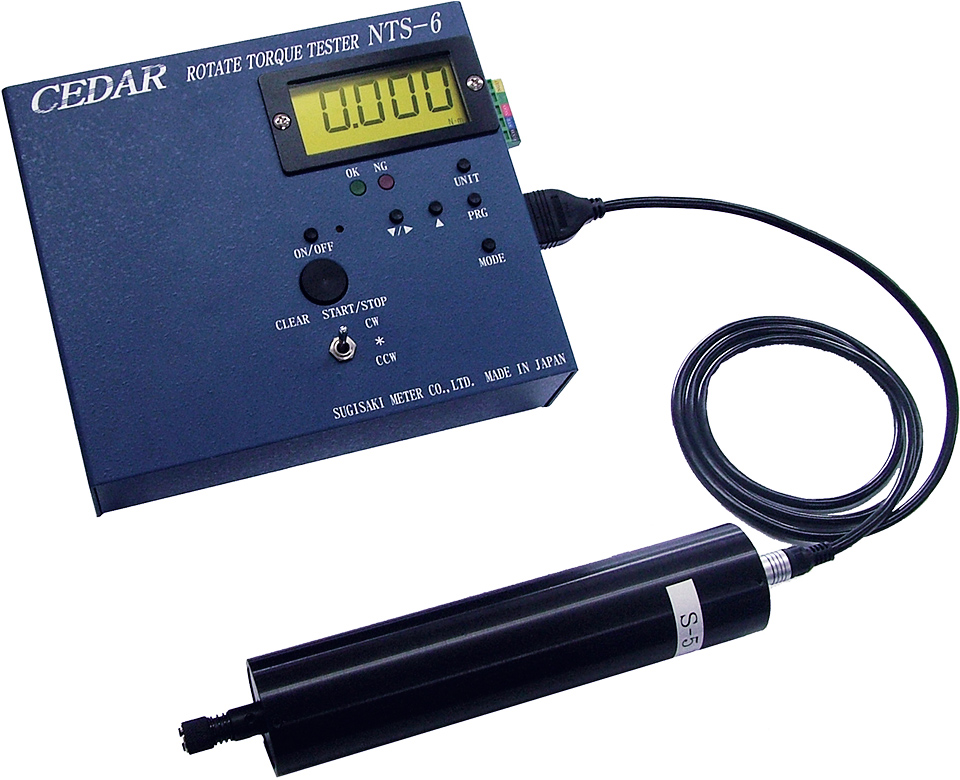

nts-6 Friction Torque Tester
Click images to enlarge.
click here

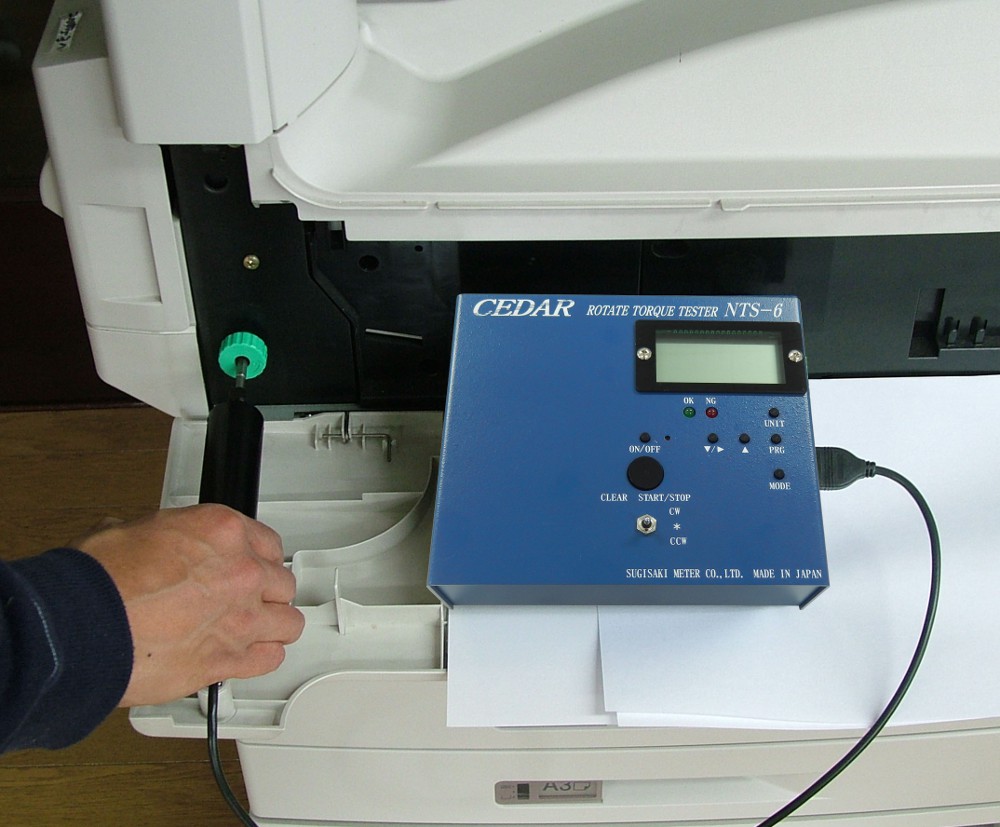

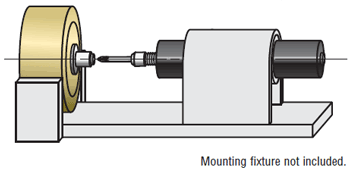

The NTS-6 Motorized Rotating Friction Torque Tester tests the smoothness of rotation and components of small precision motors, such as, gearbox, bearings, oil seals, etc. The motorized tester turns at a set rotational speed based upon the model. See the specifications table for more details. The tester can be used to measure torque in CW and CCW directions.

The NTS-6 has three modes of operation: real time, PP (peak) and PD (continuous output).

The NTS-6 torque tester has programmable high/low setpoints to enable go/no-go testing. 3 indicator lights inform the user where the current torque reading is in relation the the setpoints. YELLOW lights up for measurements less than Low setpoint, GREEN for between High and Low setpoints, and RED for over High setpoint and testing automatically stops. SPC Capable

Torque data can be continuously output through the USB virtual COM port enabling you to display a torque profile using data acquisition software. Use the special SW-1SV-USB-NTS spreadsheet to create a torque profile.

All new NTS-6 testers include a free 3 Point Calibration Certificate traceable to NIST. ISO-17025 Certificates are available at an extra charge. NTS-6 testers are sold as a kit and include torque tester display unit, torque detector, Phillips tip, cable and AC power cord.

Features

  • Selectable units lbf-in, Kgf-cm, mN-m or N-m (except oz models)
  • Peak, Real Time and Continuous Output modes (selectable)
  • USB virtual COM port sends peak (1 data) or continuous data (12 data/second)
  • Both CW and CCW operation
  • Programmable high/low setpoints for Go/No Go testing

NTS Ranges

Modellb-inoz-inN-mmN-mKgf-cmMax RPM (no-load)Bit Size
NTS-6-S10.030 - 0.900xx3.0 - 100.00.030 - 1.000854mm
NTS-6-S20.030 - 1.740xx3.0 - 200.00.030 - 2.000254mm
NTS-6-S50.30 - 4.50x0.030 - 0.500x0.030 - 5.00134mm
NTS-6-S100.30 - 9.00x0.030 - 1.000x0.030 - 10.00186.35mm HEX
NTS-6-S200.30 - 17.40x0.030 - 2.000x0.030 - 20.00186.35mm HEX
NTS-6-S500.30 - 45.00x0.030 - 5.000x0.030 - 50.00512mm
NTS-6-S1ozx0.30 - 14.00xxx854mm
NTS-6-S2ozx0.30 - 28.00xxx254mm
NTS-6-S5ozx3.0 - 70.0xxx134mm

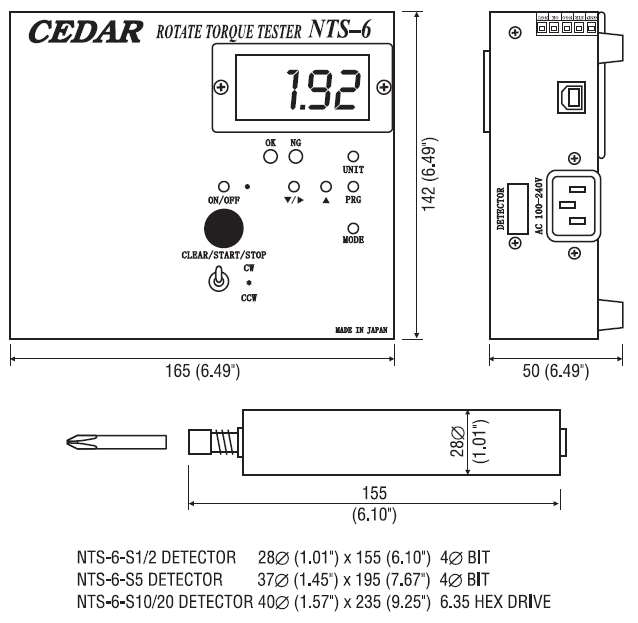

Dimensions

Related Products

Click image for more info
Data Acquisition Software for Torque
- Full SPC and graphing capabilities
- Automates your data collection

Specifications

Accuracy±1% F.S., 1LSD
Display4 digit LCD display
OperationBoth CW and CCW motorized rotation
Measuring modesPP: Peak Mode displays PEAK torque value that will not change until a higher value is measured.
GO: Real Time Mode displays TRANSIENT torque values.
RG: Output Torque Data every 1/100 seconds.
Measurement start timeCan be set up to 1 second in 0.1 second increments.
Measuring timeTime can be programmed between 1 and 20 seconds.
Go/No go testingProgrammable High and Low values; Green lamp (OK solid, NG blinking).
External input/outputSignal output (open collector): Go and No Go
Data output: USB/RS-232C (9600 baud) External start switch input
Data memory400 data
Power supplyAC100V~240V

Downloads

Buy Now

Item Description Price
Rotating Torque Tester, 0.9 lb-in / 100 mNm
$3,450.00
Rotating Torque Tester, 1.74 lb-in / 200 mNm
$3,450.00
Rotating Torque Tester, 4.50 lb-in / 0.5 Nm
$3,800.00
Rotating Torque Tester, 9 lb-in / 1 Nm
$4,150.00
Rotating Torque Tester, 17.40 lb-in / 2 Nm
$4,350.00
Rotating Torque Tester, 45 lb-in / 5 Nm
$4,950.00
Rotating Torque Tester, 14 oz-in
$3,450.00
Rotating Torque Tester, 28 oz-in
$3,450.00
Rotating Torque Tester, 70 oz-in
$3,800.00
Accessories
SW-1SV-NTS-USB
Data Acquisition Software for NTS-6
$199.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
