EZ-TorQ II Mountz EZ-TorQ II Torque Analyzer

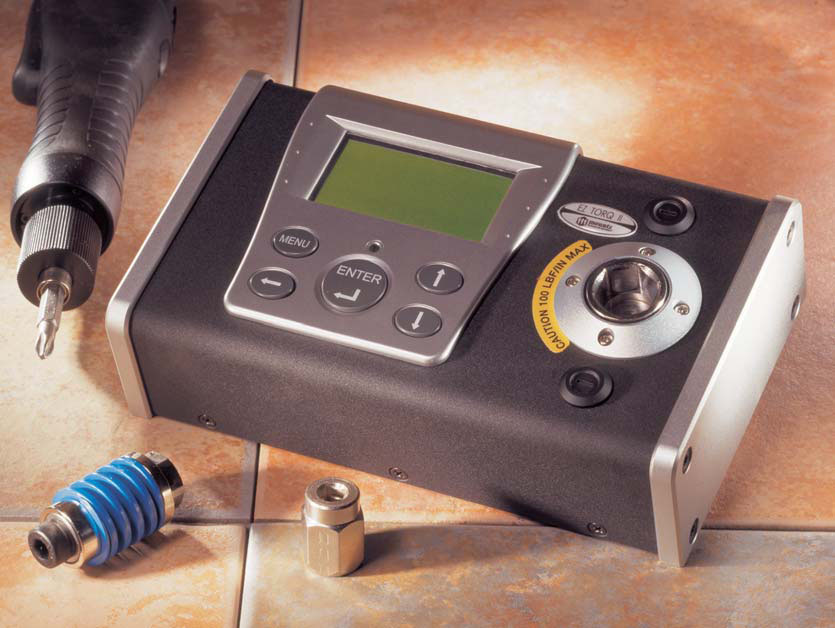

EZ-TorQ II Torque Analyzer
Click images to enlarge.
The EZ-TorQ digital torque tester is a user friendly instrument designed for testing all small hand tools and non-impact power tools. The small size and portability of the EZ-TorQ II makes it ideal for checking torque tools on the production floor daily or weekly, to ensure the tools are operating correctly.

Features

  • Supplied with a free ISO 17025 Certification of Calibration
  • Accuracy ± 0.5% of reading from 20% to 100% of full scale
  • Three operating modes: Track, Peak, and First Peak
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm)
  • Includes Windows software EZ-TorQ II Interface Program - to conduct Quick Tool Tests, Data Logging and Sensor Calibration
  • Flash memory allows upgrades to be done by the user in the field & internet through the RS-232 port
  • Ability to download readings to PC via RS-232 or via USB
  • Real time output via RS-232
  • Storage of up to 150 data points
  • Features Go / No Go LEDs that illuminate when high or low tolerance setting is achieved or out of tolerance
  • Includes Spring Run Down Fixture for use when testing power tools
  • Supplied in fitted carrying case

Torque Ranges

Model Range Drive Size
EZ-TorQ II 10i
16 - 160 ozf-in
1 - 10 lbf-in
0.08 - 0.83 lbf-ft
1.15 - 11.5 kgf-cm
0.01 - 0.11 kgf-m
11.2 - 112 N-cm
0.11 - 1.12 N-m
17mm Female/Hex
EZ-TorQ II 50i
80 - 800 ozf-in
5 - 50 lbf-in
0.41 - 4.16 lbf-ft
5.76 - 57.6 kgf-cm
0.05 - 0.57 kgf-m
56.4 - 564 N-cm
0.56 - 5.64 N-m
17mm Female/Hex
EZ-TorQ II 100i
160 - 1600 ozf-in
10 - 100 lbf-in
0.83 - 8.33 lbf-ft
11.5 - 115 kgf-cm
0.11 - 1.15 kgf-m
112 - 1129.85 N-cm
1.12 - 11.2 N-m
17mm Female/Hex
EZ-TorQ II 150i
240 - 2400 ozf-in
15 - 150 lbf-in
1.25 - 12.5 lbf-ft
17.2 - 172 kgf-cm
0.17 - 1.72 kgf-m
169 - 1694.77 N-cm
1.69 - 16.9 N-m
17mm Female/Hex

Related Products

spring run down rda
Click image for more info
Spring Run Down Adapters
Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
TT-3000 Torque Analyzer
Click image for more info
Torque Analyzer - AWS-3000
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional

Specifications

Accuracy± 0.5% of reading from 20% to 100% of full scale
± 1% of reading from 10% to 20% of full scale
Operating ModesTrack, Peak, and First Peak
Data OutputVia RS-232 or USB connection to PC
FilteringSelectable: 130Hz, 150Hz, and 500Hz
Dimensions(L x W x H): 7 1/4" x 4 1/3" x 2"
Standard AccessoriesIncludes a case, Universal Charger, 1/4 F/Hex Sq. Dr. Adapter, USB Adapter & RS232 Cable Adapter.
Weight4.5 lbs.

Buy Now

Item Description Price
Torque Tester, 1-10 in-lbs, 17mm and 1/4 In Female/Hex Drive (070800)
$1,995.00
Torque Tester, 5-50 in-lbs, 17mm and 1/4 In Female/Hex Drive (070801)
$1,995.00
Torque Tester, 10-100 in-lbs, 17mm and 1/4 In Female/Hex Drive (070802)
$1,995.00
Torque Tester, 15-150 in-lbs, 17mm and 1/4 In Female/Hex Drive (070803)
$1,995.00
Accessories
770301
Universal Charger for EZ-TorQ II
$85.00
603107
Battery Pack for EZ-TorQ II models
$155.00
773064
RS-232 Cable for EZ-TorQ II models
$15.00
