EZ-TorQ III EZ-TorQ III Torque Analyzer

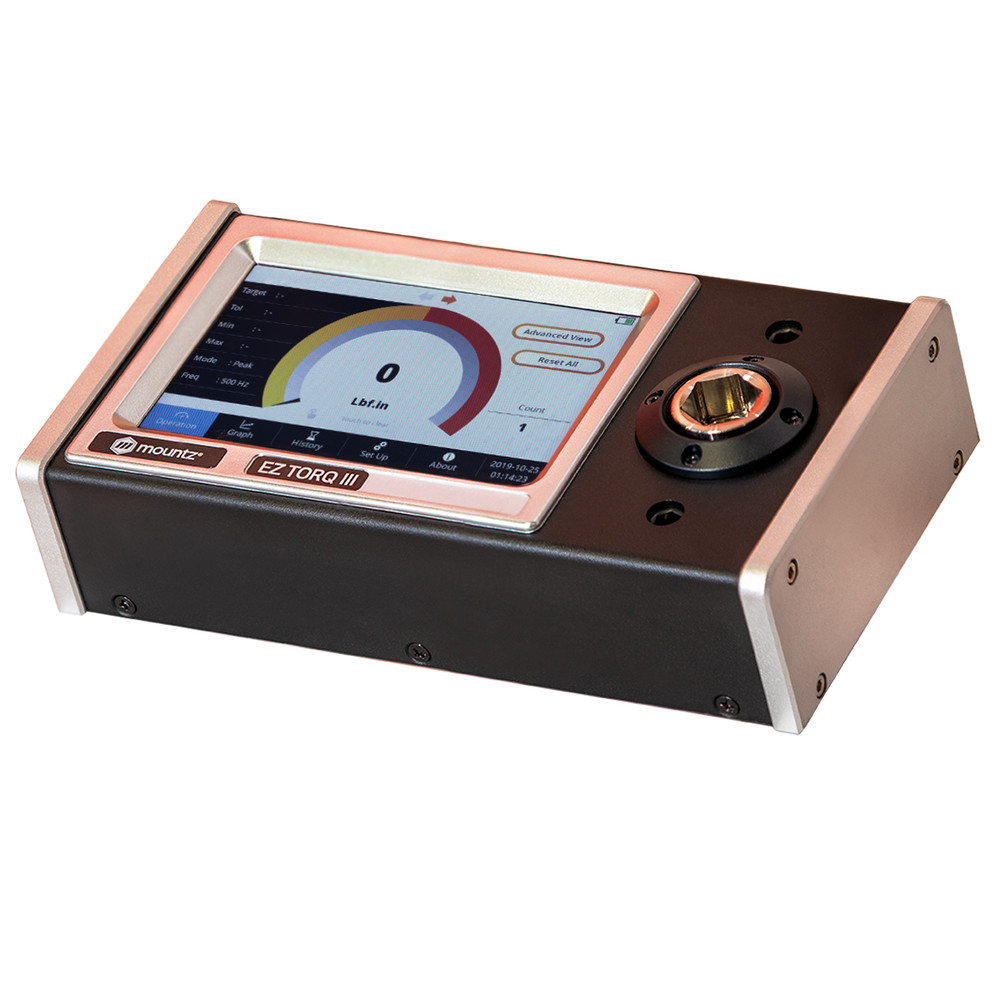

EZ-TorQ III Torque Analyzer
Click images to enlarge.
Highly portable and user friendly, this battery-powered torque validation hub can be easily carried around the assembly line to spot check tools as part of a QA program or used at assembly stations for quick and easy torque tool validation and calibration. The new smartphone like touch-screen interface breaks down barriers and ensures quick and easy torque tool validation and calibration. EZ-TorQ digital torque tester features a built-in transducer. The easy-to-use torque analyzer is ideal for all small hand tools & non-impacting power tools.

The EZ-TorQ III is not for use in testing Impact or Pulse type tools.

Features

  • Supplied with an ISO 17025 Certification of Calibration
  • Three operating modes: Track, Peak, and First Peak
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm)
  • Vivid full color, smartphone-like touchscreen interface

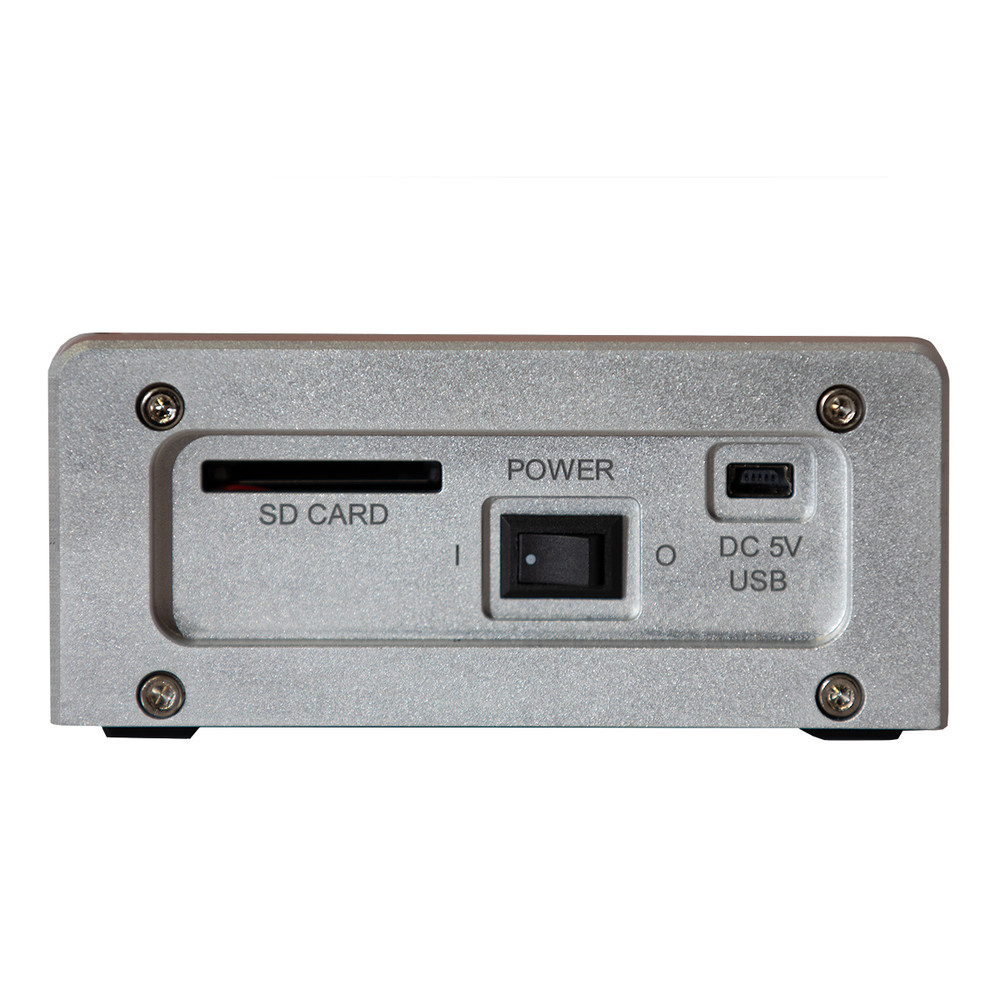

  • Virtually unlimited data point storage with swappable SD card memory
  • Flash memory allows upgrades to be done by the user in the field & internet through the RS-232 port
  • Ability to download readings to PC via RS-232 or via USB
  • Features Go / No Go LEDs that illuminate when high or low tolerance setting is achieved or out of tolerance
  • Accuracy ± 0.5% of reading from 20% to 100% of full scale
  • Includes Spring Run Down Fixture for use when testing power tools
  • Supplied in fitted carrying case
  • On board software with SPC analysis

Torque Ranges

Model Range Drive Size
EZ-TorQ III 10i
16 - 160 ozf-in
1 - 10 lbf-in
0 - 0.8 lbf-ft
1.1 - 11 kgf-cm
0 - 0.1 kgf-m
11 - 113 N-cm
0.1 - 1.1 N-m
17mm Female/Hex
EZ-TorQ III 50i
80 - 800 ozf-in
5 - 50 lbf-in
0.4 - 4.1 lbf-ft
5.7 - 57 kgf-cm
0 - 0.5 kgf-m
56 - 564.9 N-cm
0.5 - 5.6 N-m
17mm Female/Hex
EZ-TorQ III 100i
N/A
10 - 100 lbf-in
0.8 - 8.3 lbf-ft
11 - 115.2 kgf-cm
0.1 - 1.1 kgf-m
N/A
1.1 - 11 N-m
17mm Female/Hex
EZ-TorQ III 150i
N/A
15 - 150 lbf-in
1.2 - 12 lbf-ft
17 - 172.8 kgf-cm
0.1 - 1.7 kgf-m
N/A
1.6 - 16 N-m
17mm Female/Hex
EZ-TorQ III 300
N/A
30 - 300 lbf-in
2.5 - 25 lbf-ft
34 - 345.6 kgf-cm
0.3 - 3.4 kgf-m
N/A
3.3 - 33 N-m
17mm Female/Hex

Related Products

spring run down rda
Click image for more info
Spring Run Down Adapters
Torque Tool Tester
Click image for more info
Torque Tool Tester - AWS-QC
- Bidirectional accuracy of ± 1% of indicated reading
TT-3000 Torque Analyzer
Click image for more info
Torque Analyzer - AWS-3000
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional

Complete Kit

Each EZ-TorQ III model includes a case, universal charger, 1/4” female/hex square drive adapter and two screw run down adapters

Specifications

Accuracy± 0.5% of reading from 20% to 100% of full scale
± 1% of reading from 10% to 20% of full scale
Operating ModesTrack, Peak, and First Peak
Data OutputVia RS-232 or USB connection to PC
FilteringSelectable: 130Hz, 150Hz, and 500Hz
Dimensions(L x W x H): 7 1/4" x 4 1/3" x 2"
Standard AccessoriesIncludes a case, Universal Charger, 1/4 F/Hex Sq. Dr. Adapter, USB Adapter & RS232 Cable Adapter.
Weight4.5 lbs.

Buy Now

Item Description Price
Torque Tester, 1-10 in-lbs, 17mm and 1/4 In Female/Hex Drive (070810)
$2,900.00
Torque Tester, 5-50 in-lbs, 17mm and 1/4 In Female/Hex Drive (070811)
$2,900.00
Torque Tester, 10-100 in-lbs, 17mm and 1/4 In Female/Hex Drive (070812)
$2,900.00
Torque Tester, 15-150 in-lbs, 17mm and 1/4 In Female/Hex Drive (070813)
$2,975.00
Torque Tester, 30-300 in-lbs, 17mm and 1/4 In Female/Hex Drive (070814)
$3,025.00
