Series IT Torque Transducer

Made in USA

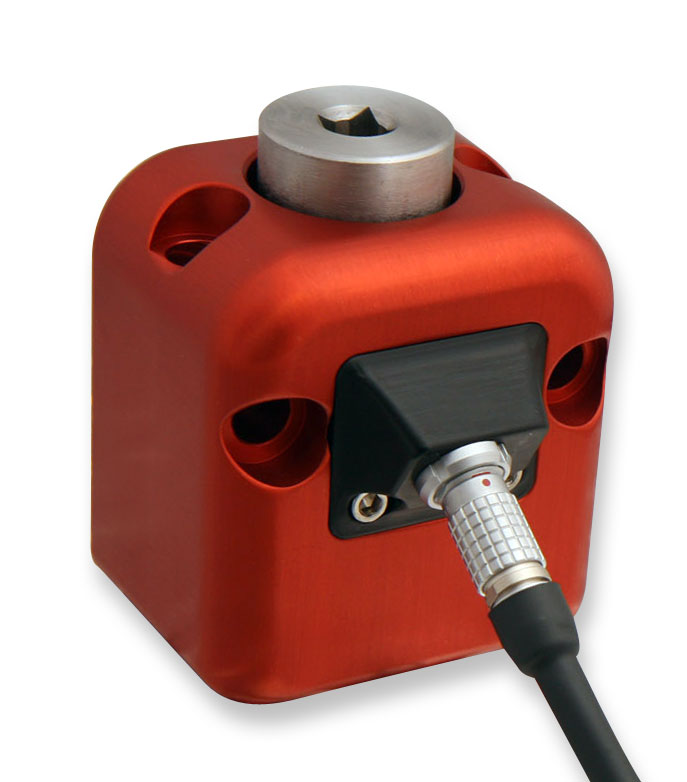

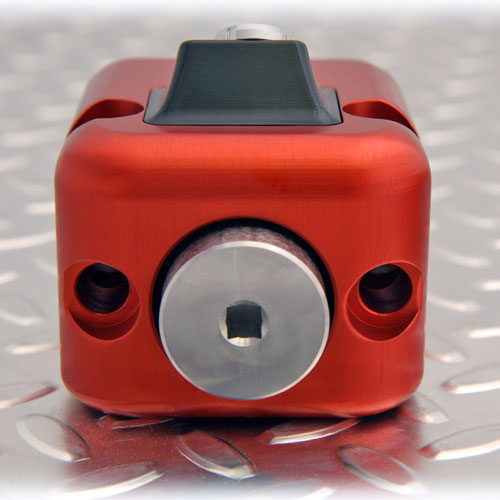

IT Torque Transducer
Click images to enlarge.
The versatile IT Series torque transducers are designed for precision torque measurement of wrenches, drivers and other applications from 10 oz-in to 5000 lb-ft with ±0.5% (±0.25% optional) accuracy from 10% - 100% of the transducer range. All transducers can be calibrated bidirectionally.

The IT Series can be used with manual tools or powered using a Run-Down-Fixture (optional).

IT Series can be positioned in a horizontal or vertical orientation and features a rugged aluminum housing for benchtop mounting. Custom ranges and configurations are available, inquire.

*Power tools require the use of a run-down-fixture
**Not for use with impact tools or torque multipliers

Features

  • Ranges from 10 Oz.in. to 2,000 Lb.ft.
  • Accuracy 0.5% of indicated between 10-100% of capacity
  • For Testing According to ISO 6789:2017

Torque Ranges

Model Range Drive Size
ITIO-10*
1 - 10 ozf-in
0.062 - 0.625 lbf-in
0.005 - 0.052 lbf-ft
72 - 720 gf-cm
0.072 - 0.72 kgf-cm
0 - 0.007 kgf-m
0.706 - 7.061 N-cm
0.007 - 0.07 N-m
1/4"
ITIO-50
5 - 50 ozf-in
0.312 - 3.125 lbf-in
0.026 - 0.26 lbf-ft
360 - 3600 gf-cm
0.36 - 3.6 kgf-cm
0.003 - 0.036 kgf-m
3.53 - 35.3 N-cm
0.035 - 0.353 N-m
1/4"
ITIO-100
10 - 100 ozf-in
0.625 - 6.25 lbf-in
0.052 - 0.52 lbf-ft
720 - 7200 gf-cm
0.72 - 7.2 kgf-cm
0.007 - 0.072 kgf-m
7.061 - 70.61 N-cm
0.07 - 0.706 N-m
1/4"
ITI-10
16 - 160 ozf-in
1 - 10 lbf-in
0.083 - 0.833 lbf-ft
N/A
1.152 - 11.52 kgf-cm
0.011 - 0.115 kgf-m
11.29 - 112.9 N-cm
0.112 - 1.129 N-m
1/4"
ITI-25
40 - 400 ozf-in
2.5 - 25 lbf-in
0.208 - 2.083 lbf-ft
N/A
2.88 - 28.8 kgf-cm
0.028 - 0.288 kgf-m
28.24 - 282.4 N-cm
0.282 - 2.824 N-m
1/4"
ITI-50
80 - 800 ozf-in
5 - 50 lbf-in
0.416 - 4.166 lbf-ft
N/A
5.76 - 57.6 kgf-cm
0.057 - 0.576 kgf-m
56.49 - 564.9 N-cm
0.564 - 5.649 N-m
1/4"

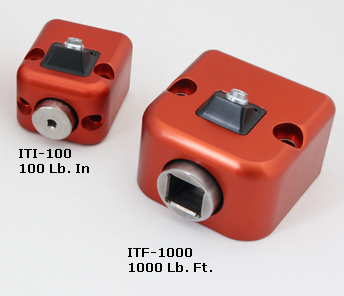

ITI-100
160 - 1600 ozf-in
10 - 100 lbf-in
0.833 - 8.333 lbf-ft
N/A
11.52 - 115.2 kgf-cm
0.115 - 1.152 kgf-m
112.9 - 1129 N-cm
1.129 - 11.29 N-m
1/4"

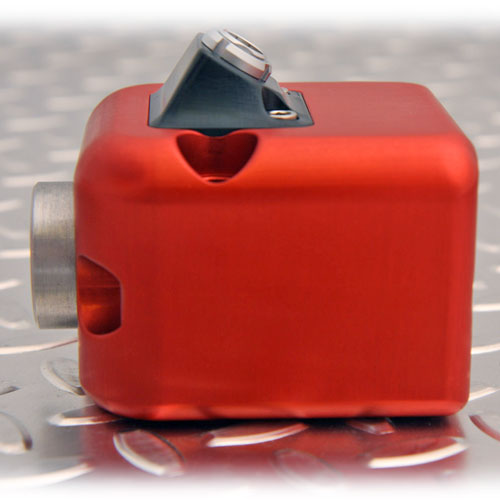

ITI-250
400 - 4000 ozf-in
25 - 250 lbf-in
2.083 - 20.83 lbf-ft
N/A
28.8 - 288 kgf-cm
0.288 - 2.88 kgf-m
282.4 - 2824 N-cm
2.824 - 28.24 N-m
3/8"
ITI-500
800 - 8000 ozf-in
50 - 500 lbf-in
4.166 - 41.66 lbf-ft
N/A
57.6 - 576 kgf-cm
0.576 - 5.76 kgf-m
564.9 - 5649 N-cm
5.649 - 56.49 N-m
3/8"
ITI-1000
N/A
100 - 1000 lbf-in
8.333 - 83.33 lbf-ft
N/A
115.2 - 1152 kgf-cm
1.152 - 11.52 kgf-m
N/A
11.29 - 112.9 N-m
3/8"
ITF-100
N/A
120 - 1200 lbf-in
10 - 100 lbf-ft
N/A
138.2 - 1382 kgf-cm
1.382 - 13.82 kgf-m
N/A
13.55 - 135.5 N-m
1/2"
ITF-150
N/A
180 - 1800 lbf-in
15 - 150 lbf-ft
N/A
207.3 - 2073 kgf-cm
2.073 - 20.73 kgf-m
N/A
20.33 - 203.3 N-m
1/2"
ITF-250
N/A
300 - 3000 lbf-in
25 - 250 lbf-ft
N/A
345.6 - 3456 kgf-cm
3.456 - 34.56 kgf-m
N/A
33.89 - 338.9 N-m
1/2"
ITF-600
N/A
720 - 7200 lbf-in
60 - 600 lbf-ft
N/A
829.5 - 8295 kgf-cm
8.295 - 82.95 kgf-m
N/A
81.34 - 813.4 N-m
3/4"
ITF-750
N/A
900 - 9000 lbf-in
75 - 750 lbf-ft
N/A
N/A
10.36 - 103.6 kgf-m
N/A
101.6 - 1016 N-m
3/4"

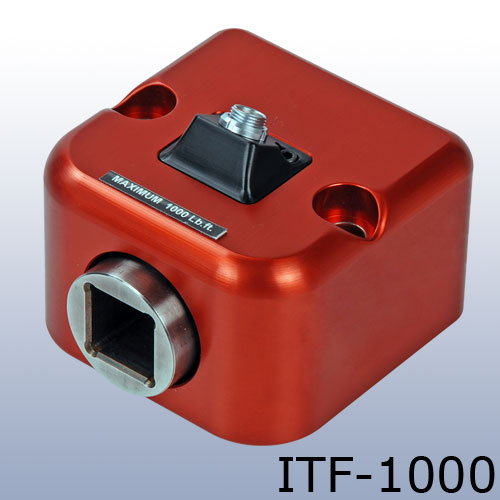

ITF-1000
N/A
N/A
100 - 1000 lbf-ft
N/A
N/A
13.82 - 138.2 kgf-m
N/A
135.5 - 1355 N-m
1"
ITF-2000
N/A
N/A
200 - 2000 lbf-ft
N/A
N/A
27.65 - 276.5 kgf-m
N/A
271.1 - 2711 N-m
1"
ITF-3000**
N/A
N/A
300 - 3000 lbf-ft
N/A
N/A
41.47 - 414.7 kgf-m
N/A
406.7 - 4067 N-m
1 1/2"
ITF-5000**
N/A
N/A
500 - 5000 lbf-ft
N/A
N/A
69.12 - 691.2 kgf-m
N/A
677.9 - 6779 N-m
1 1/2"
NOTE:
*ITIO-10 accuracy is +/-1% from 10-100% of capacity
**ITF-3000 & ITF-5000 are supplied without bench stands (mounting brackets) please contact us to review your application and recommend appropriate system.

Torque Loader - Sold Seperately

MTM with optional AWS-1000 Series Torque LoaderThe AWS-1000 series mechanical torque wrench loaders are designed for use with our IT Transducers, MTM and TT-QCM torque testers. These precision torque loaders allow operators to precisely test and calibrate torque wrenches up to 1000 lb-ft / 1350 Nm with measuring accuracy up to ± 0.25% of indicated readings, satisfying metrology lab requirements while providing the durability required for production environments.

An optional motor kit allows for automated testing, improving speed and repeatability.

Related Products

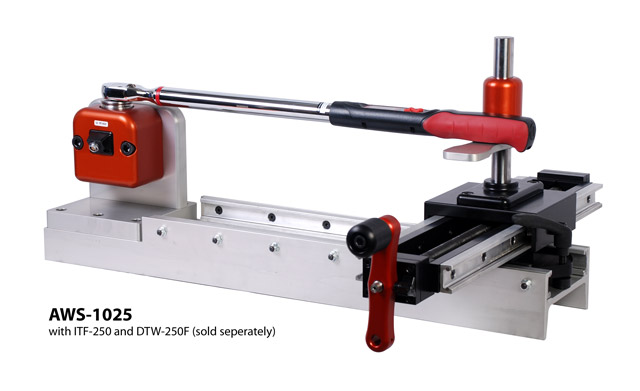

AWS-1025 Mechanical Torque Loader
Click image for more info
Torque Wrench Loader AWS-1000 Series
- Rugged Machined Aluminum Construction
- Heavy-duty precision gear box for easy load application

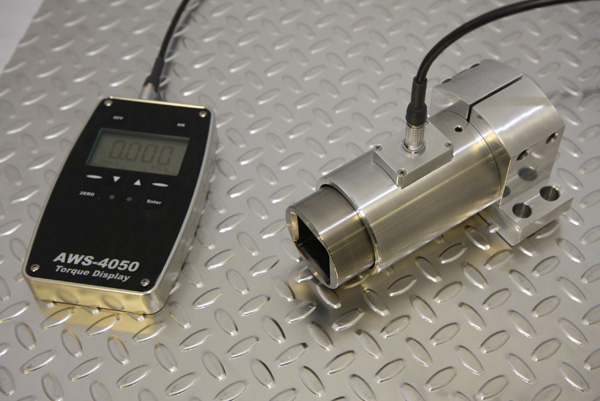

AWS-4050 Torque Display
Click image for more info
Digital Torque Display
- Can be calibrated to virtually any manufacturer’s strain gauge transducers.
- Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
Inline Torque Tester ILTT
Click image for more info
Inline Torque Tester
- Bidirectional accuracy of ±1% of indicated reading
- 3 modes of operation: Track, Peak and 1st Peak
MTMDP Torque Tester
Click image for more info
MTM
Multi-Range Torque Tester AWS
- Available with 2, 3 or 4 torque transducers
- LED Indicator Shows Active Transducer
run-down-fixture
Click image for more info
RDF
Run Down Fixture - Joint Simulators for Torque Testers
- Threaded bolt and nut body for simulating bolted joint. On Standard, HD and HE models bolt is standard and easily replaceable from multiple sources
torque arm for torque sensor calibration
Click image for more info
Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel
Torque Driver Adapters
Click image for more info
Precision Torque Drive Adapters
- Custom drives available, inquire

Downloads

Buy Now

Item Description Price
10 oz-in / 7 N-cm Torque Transducer with Bench Stand, 1/4" Dr.
$1,575.00
50 oz-in / 35 N-cm Torque Transducer with Bench Stand, 1/4" Dr.
$1,575.00
100 oz-in / 70 N-cm Torque Transducer with Bench Stand, 1/4" Dr.
$1,575.00
10 lb-in / 113 N-cm Torque Transducer with Bench Stand, 1/4" Dr.
$1,125.00
25 lb-in / 282 N-cm Torque Transducer with Bench Stand, 1/4" Dr.
$1,125.00
50 lb-in / 5.6 Nm Torque Transducer with Bench Stand, 1/4" Dr.
$1,125.00
100 lb-in / 11.2 Nm Torque Transducer with Bench Stand, 1/4" Dr.
$1,125.00
250 lb-in / 28 Nm Torque Transducer with Bench Stand, 3/8" Dr.
$1,125.00
500 lb-in / 56 Nm Torque Transducer with Bench Stand, 3/8" Dr.
$1,125.00
1000 lb-in / 112 Nm Torque Transducer with Bench Stand, 3/8" Dr.
$1,125.00
100 lb-ft / 135 Nm Torque Transducer with Bench Stand, 1/2" Dr.
$1,225.00
150 lb-ft / 203 Nm Torque Transducer with Bench Stand, 1/2" Dr.
$1,225.00
250 lb-ft / 338 Nm Torque Transducer with Bench Stand, 1/2" Dr.
$1,225.00
600 lb-ft / 813 Nm Torque Transducer with Bench Stand, 3/4" Dr.
$1,275.00
750 lb-ft / 1016 Nm Torque Transducer with Bench Stand, 3/4" Dr.
$1,575.00
1000 lb-ft / 1355 Nm Torque Transducer with Bench Stand, 1" Dr.
$1,825.00
2000 lb-ft / 2711 Nm Torque Transducer with Bench Stand, 1" Dr.
$2,025.00
3000 lb-ft / 4067 Nm Torque Transducer, 1 1/2" Dr. (w/o Bench Stand)
$2,195.00
5000 lb-ft / 6780 Nm Torque Transducer, 1 1/2" Dr. (w/o Bench Stand)
$2,295.00
Accessories
ER
Extended Range, increases certified range to 5-100% (instead of 10-100%) PER TRANSDUCER
$100.00
UPG-25
Upgrade Accuracy from ±0.5% to ±0.25% - PER TRANSDUCER
$100.00
ICBL-5000-L
Mil Spec Lemo to Lemo Connecting Cable, Torque Display to Torque Tester
$250.00

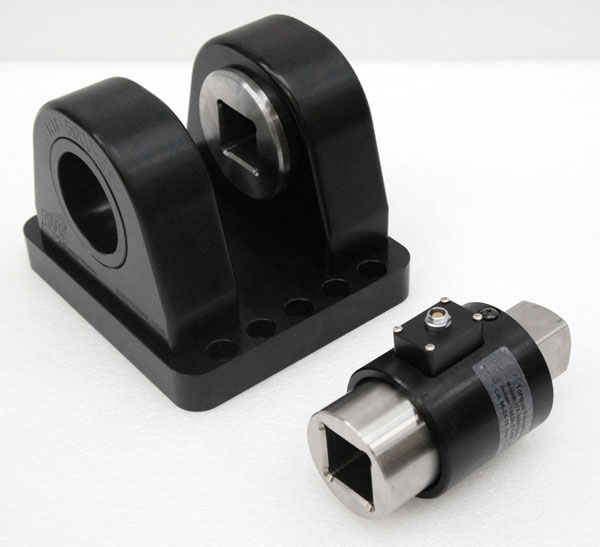

RTF-2000-BS
1-1/2" Bench Stand for fixturing ITF-2000 to table or bench
$1,250.00
RTF-3000-BS
1-1/2" Bench Stand for fixturing ITF-3000 to table or bench
$1,250.00
RTF-5000-BS
1-1/2" Bench Stand for fixturing ITF-5000 to table or bench
$1,250.00
